Engine-Engineandcrankcase

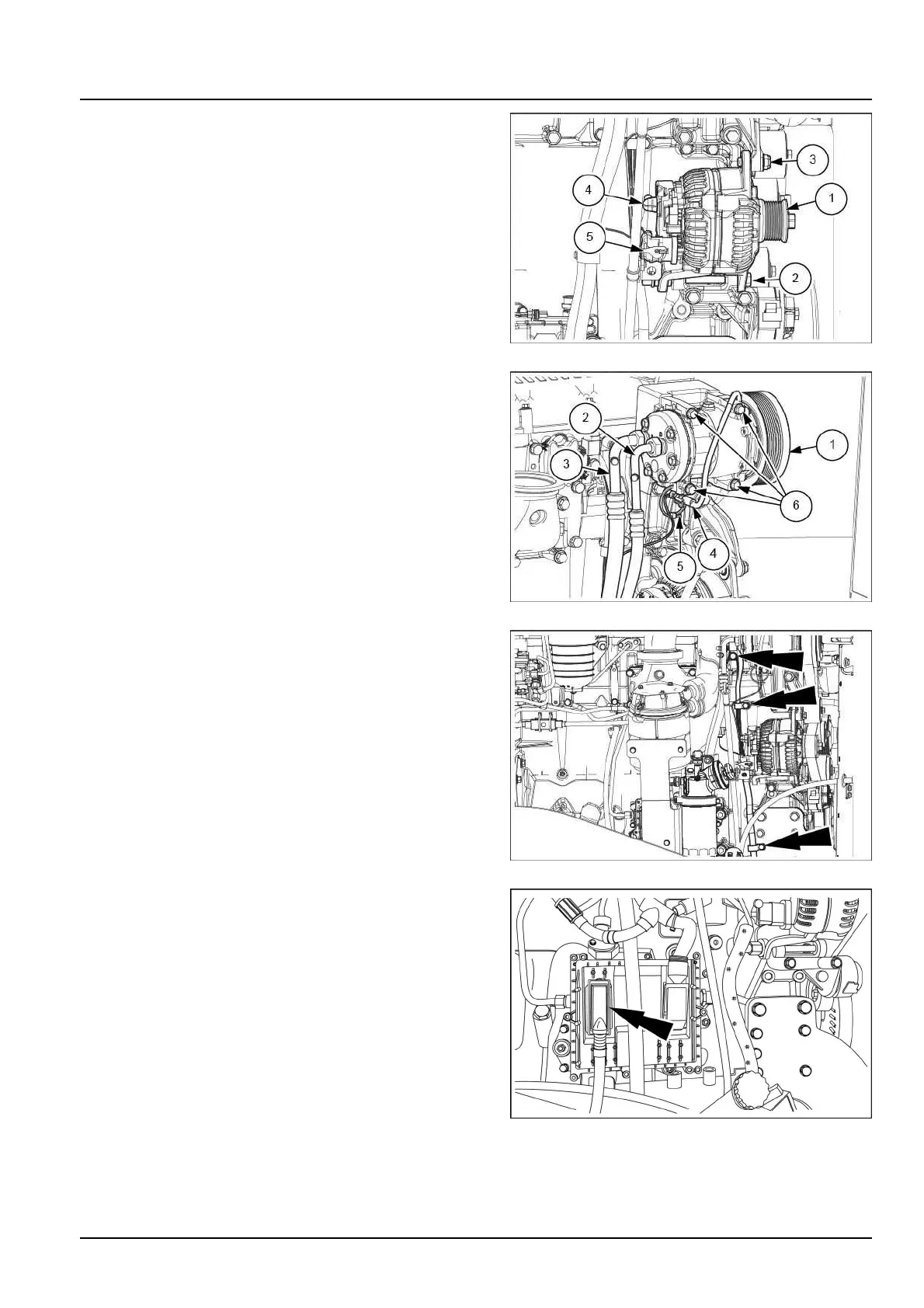

63.TaganddisconnecttheALT_BandALT_5connectors
(4),(5).
Removethebolts,washersandnut(2),(3)todiscon-
nectthealternator(1)fromtheengine.
LEIL17WHL0265AB43
64.Cutthecablestrap(5).Taganddisconnectthe
ACT_10connectorfromaircompressorclutchcon-
nector(4).
RecoverytherefrigerantasindicatedinAircondi-
tioning-Serviceinstruction(50.200).
Disconnectthelow-pressureline(3)fromthesuction
port(compressortocondenserhose)andthehigh-
pressureline(2)fromthedischargeport(cabtocom-
pressorhose)oftheair-conditioningcompressor.Im-
mediatelyinstallprotectivecapsontheopenportsand
lines.
Removethemountingbolts(6)todisconnecttheair
conditioningcompressor(1).
LEIL17WHL0263AB44
65.RemovetheP-clampsthatsecurethewires
totheengineblock.Taganddisconnectthe
GND_ENG1,GND_ENG3,GND_ENG4terminals
andGND_CENG1,GND_CENG2terminals.
LEIL17WHL0306AB45
66.Disconnecttheelectricalconnectortotheenginecon-
trolunit.
LEIL15WHL1085AA46
48083742_EN31/07/2018
10.1[10.001]/15
