Engine-Engineandcrankcase

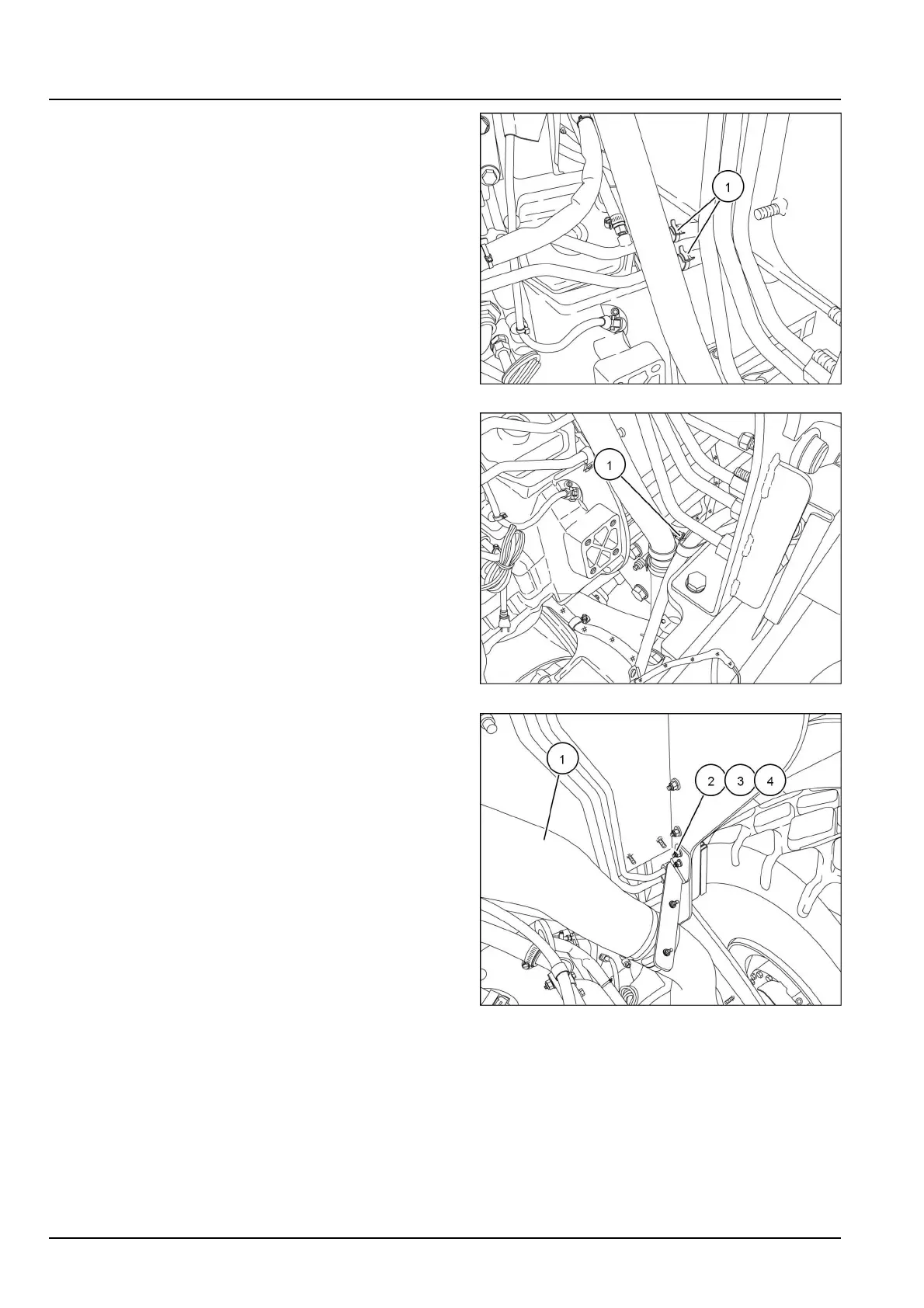

9.Connecttheinletandoutletheatercoreheaterhoses
(1).
RCPH11WHL038AAR7
10.Repositionthehydraulicoilreturntube.Installthe
hydraulicoilreturntubeP-clamp(1).
RCPH11WHL050AAR8
11.Installtheairboxsnorkel(1).Installtwobolts(2),
washers(3),andnuts(4).
RCPH11WHL023AAR9
4739246119/06/2012
10.001/20
