Case 420 - Page 39

2000-5
Bur 5-7650 Issued 12-07 Printed in U.S.A.
BS07M067
1. RADIATOR MODULE
2. OIL COOLER MODULE
3. UPPER RADIATOR HOSE
4. LOWER RADIATOR HOSE
5. COOLANT RECOVERY HOSE
6. COOLANT RECOVERY BOTTLE
7. CLAMP
8. LOWER HINGE MOUNTING BRACKET
9. UPPER MOUNTING BRACKET
10. FAN BLADE
11. FAN SPACER
12. FAN GUARD
13. FAN SHROUD
14. SEAL
15. RADIATOR CAP
16. DRAIN VALVE

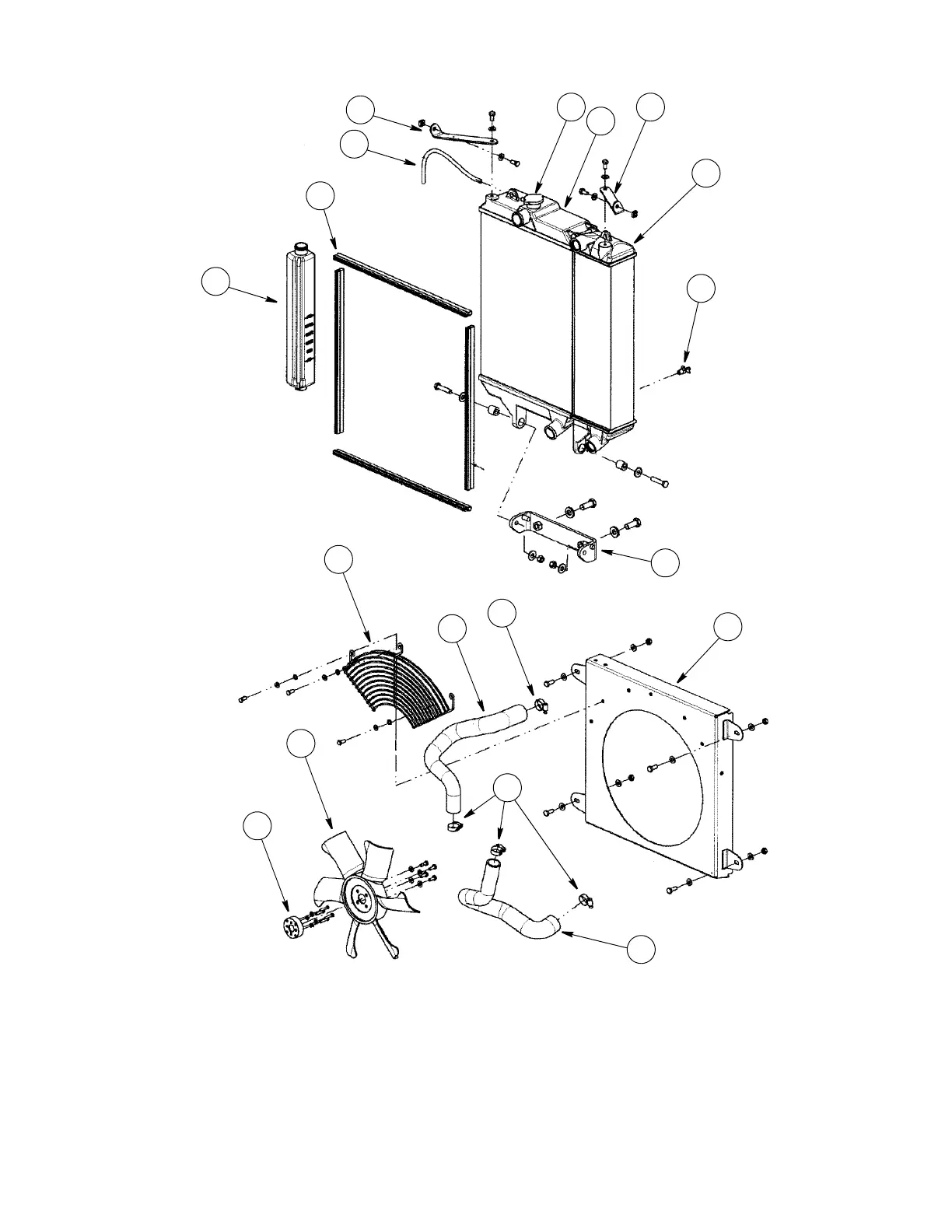

410 RADIATOR MOUNTING
1
15 9
2
9
5
6
14
8
13
3
7
12
10
11
4
7
16
