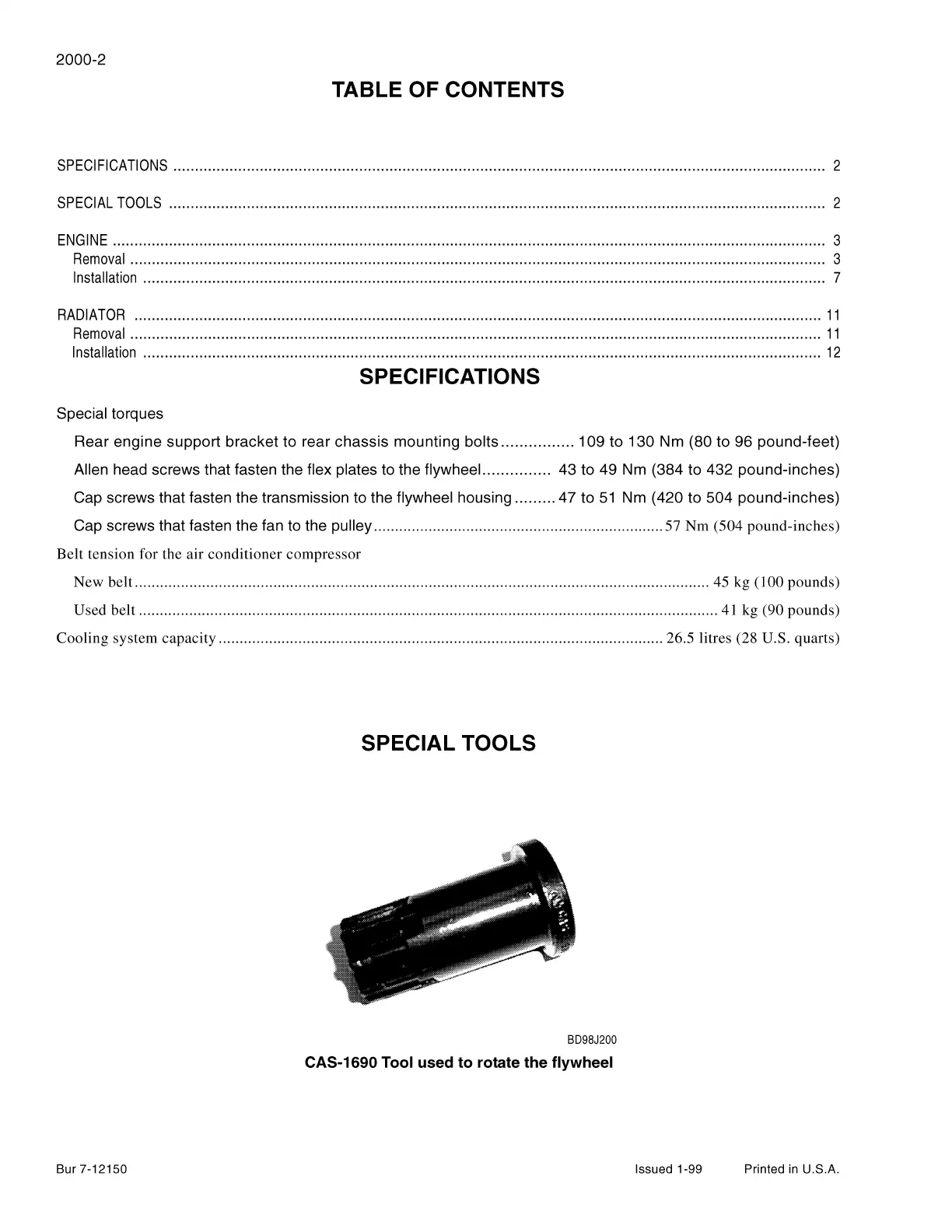

2000-2
TABLE OF CONTENTS
SPECIFICATIONS ....................................................................................................................................................... 2
SPECIAL TOOLS .. .. . .. .. .. . .. .. .. . .. .. . .. .. .. . .. .. .. . .. .. .. . .. .. . .. .. .. . .. .. .. . .. .. .. . .. .. . .. .. .. . .. .. .. . .. .. . .. .. .. . .. .. .. . .. .. .. . .. .. . .. .. .. . .. .. .. . .. ... . .. .. .. . .. .. 2
ENGINE ..................................................................................................................................................................... 3
Removal ................................................................................................................................................................. 3
Installation .............................................................................................................................................................. 7
RADIATOR ............................................................................................................................................................... 11
Removal ................................................................................................................................................................ 11
Installation ............................................................................................................................................................. 12
SPECIFICATIONS
Special torques
Rear engine support bracket to rear chassis mounting bolts ................ 109 to 130 Nm (80 to 96 pound-feet)
Allen head screws that fasten the flex plates to the flywheel. .............. 43 to 49 Nm (384 to 432 pound-inches)
Cap screws that fasten the transmission to the flywheel housing ......... 47 to 51 Nm (420 to 504 pound-inches)
Cap screws that fasten the fan to the pulley ..................................................................... 57 Nm (504 pound-inches)
Belt tension for the air conditioner compressor
New belt .........................................................................................................................................
45 kg (100 pounds)
Used belt ..........................................................................................................................................
41 kg (90 pounds)
Cooling system capacity .......................................................................................................... 26.5 litres (28 U.S. quarts)
Bur 7-12150
SPECIAL TOOLS
BD98J200
CAS-1690 Tool used to rotate the flywheel
Issued 1-99 Printed in U.S.A.
