Case 680 CK - Page 24

CYLINDER SLEEVE
Figure 8
INSET A
Figure 9
22-11
I
CYLINDER SLEEVE PROTRUSION
1.00"
B
C
OCT 970-14C
(336BD
&
336BDT ENGINE)
OTC 970-12
(301 B ENGINE)
OTC 970-10
(267B
&
401 B ENGiNE)

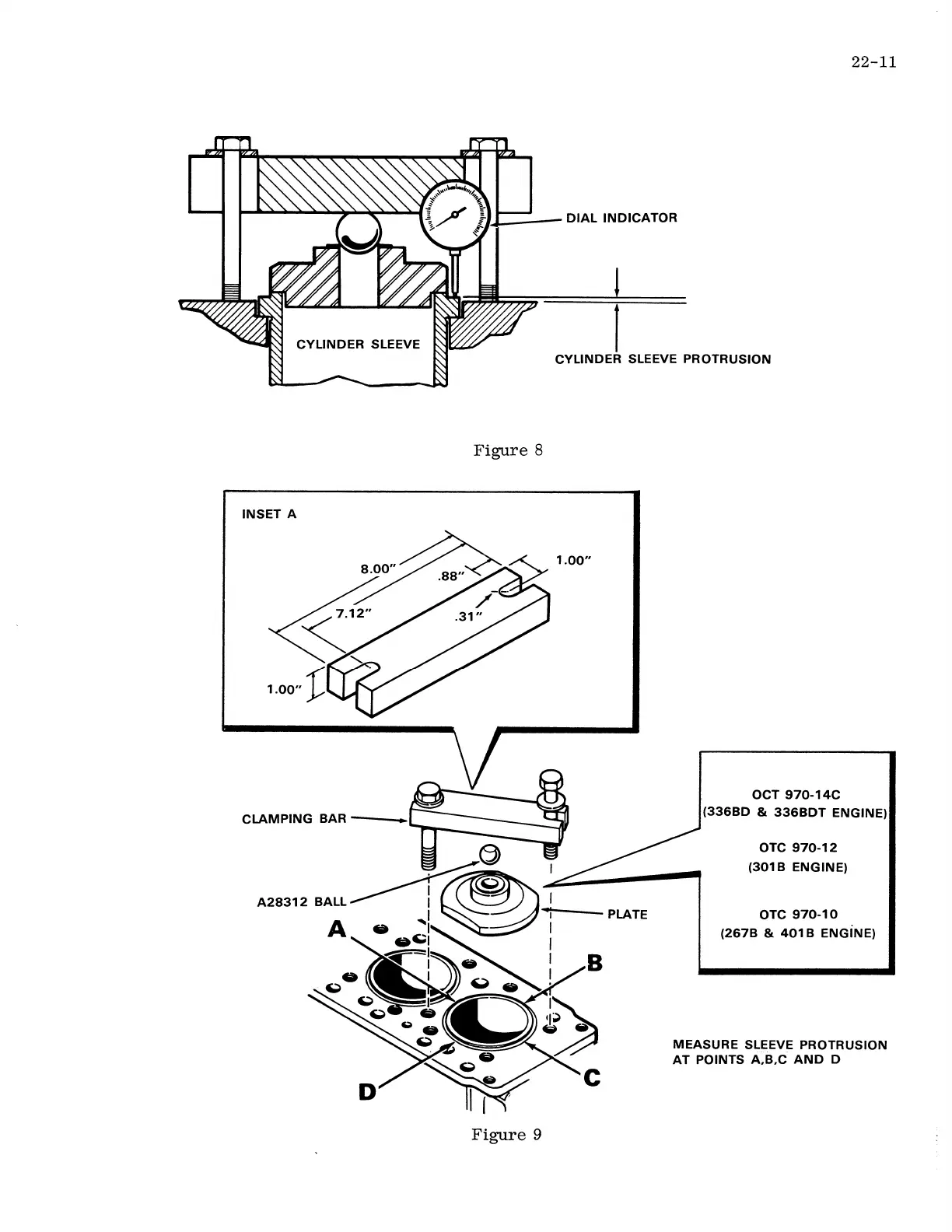

MEASURE SLEEVE PROTRUSION
AT POINTS A.B.C AND D
