Engine-Aftercooler

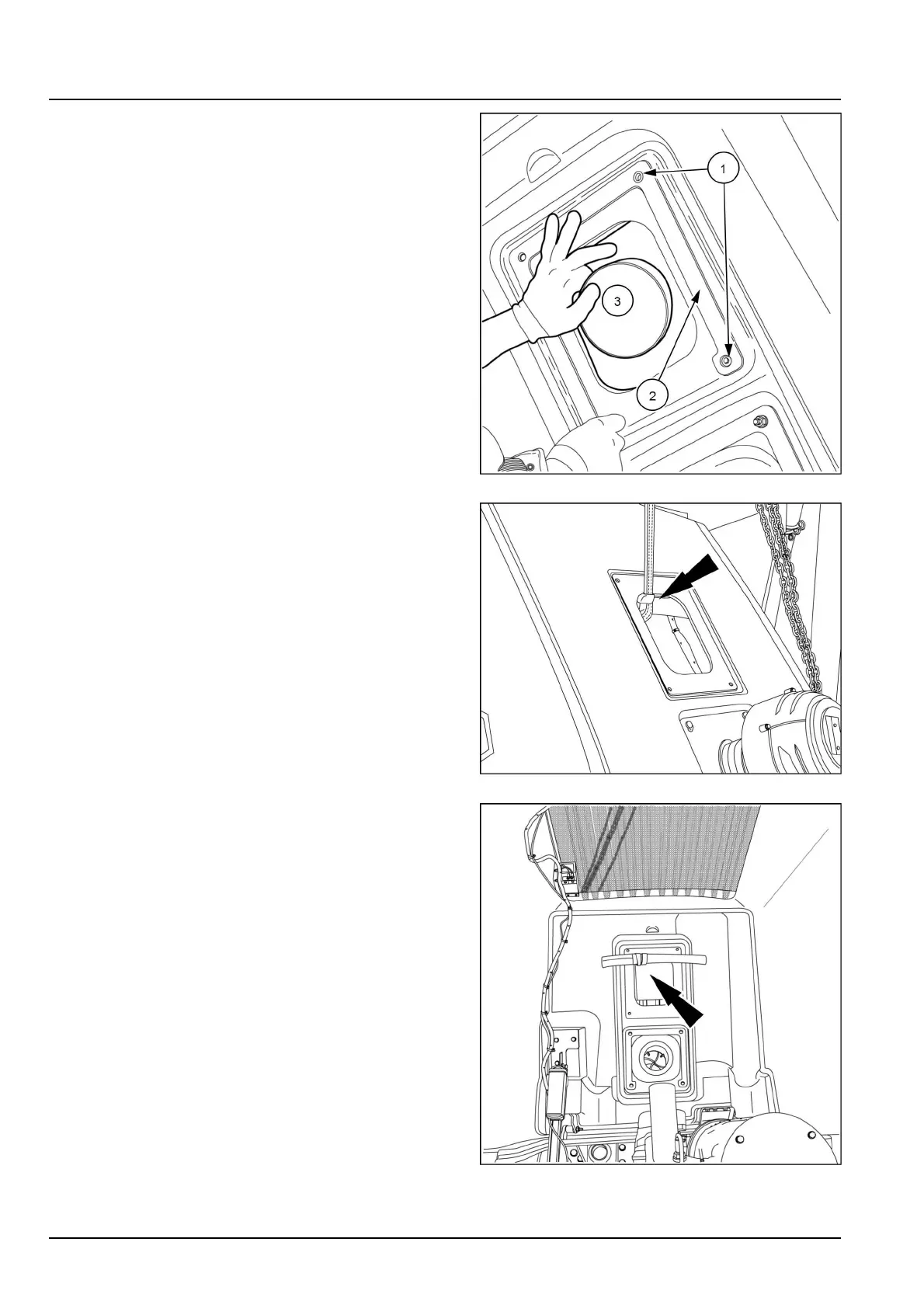

3.Ontheundersideofhood,removebolts(1)fromex-
hauststack,thenremoveplate(2).
4.Removeexhauststack(3).
RAPH12WEL0194AA3
5.Doubleupanylonliftingstrap.Fromthetopside,slide
loopedstrapthroughthehoodexhaustopening.
RAPH12WEL0170AA4
6.Placeasolidsteelbarthroughthestraploop(seear-
row)andtighten.Attachtheotherendofthestraptoa
suitableliftingdeviceandremoveanyslackintheline.
NOTE:Notethepositionoftheliftingbarstrap.Itisoffset
toevenouttheweightdistributionofthehood.
RAPH12WEL0193AA5
