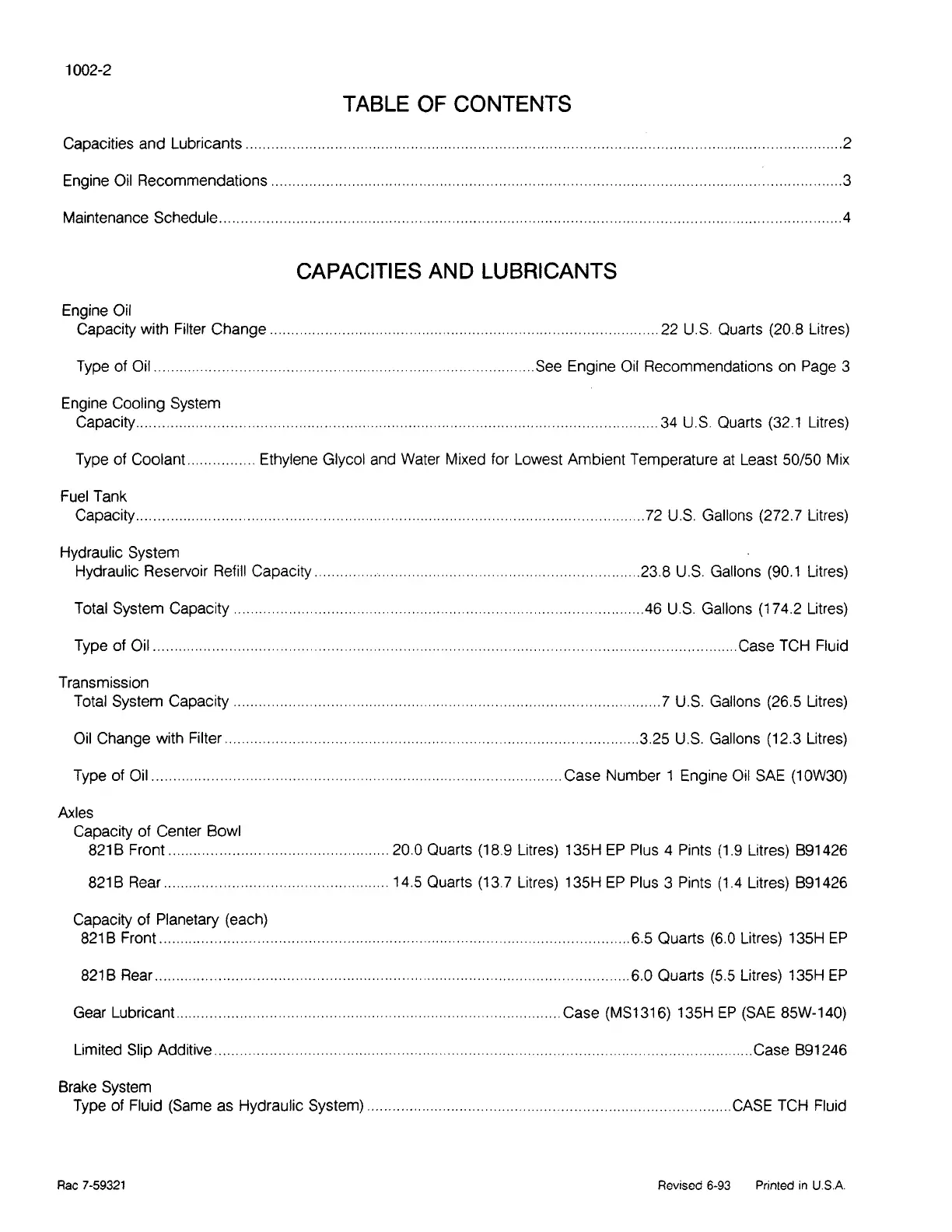

1002-2
TABLE OF CONTENTS
Capacities and Lubricants ............................................................................................................................................. 2
Engine Oil Recommendations ....................................................................................................................................... 3
Maintenance Schedule ................................................................................................................................................... 4
CAPACITIES AND LUBRICANTS
Engine Oil
Capacity with Filter Change ............................................................................................ 22 U.S. Quarts (20.8 Litres)
Type of Oil .......................................................................................... See Engine Oil Recommendations on Page 3
Engine Cooling System
Capacity ........................................................................................................................... 34 U.S. Quarts
(32.1
Litres)
Type of Coolant... ............. Ethylene Glycol and Water Mixed for Lowest Ambient Temperature
at
Least 50/50 Mix
Fuel Tank
Capacity ........................................................................................................................
72
U.S. Gallons (272.7 Litres)
Hydraulic System
Hydraulic Reservoir Refill Capacity ............................................................................. 23.8 U.S. Gallons
(90.1
Litres)
Total System Capacity ................................................................................................ .46 U.S. Gallons (174.2 Litres)
Type of Oil .......................................................................................................................................... Case TCH Fluid
Transmission
Total System Capacity ..................................................................................................... 7 U.S. Gallons (26.5 Litres)
Oil Change with Filter .................................................................................................. 3.25 U.S. Gallons (12.3 Litres)
Type of Oil. ................................................................................................ Case Number 1 Engine
Oil
SAE
(1
0W30)
Axles
Capacity of Center Bowl
821
B Front .................................................... 20.0 Quarts (18.9 Litres) 135H
EP
Plus 4 Pints (1.9 Litres) B91426
821
B Rear ..................................................... 14.5 Quarts (13. 7 Litres) 135H
EP
Plus 3 Pints
(1.4
Litres) B91426
Capacity of Planetary (each)
821B Front ............................................................................................................... 6.5 Quarts (6.0 Litres) 135H
EP
821B Rear ................................................................................................................ 6.0 Quarts (5.5 Litres) 135H
EP
Gear Lubricant ........................................................................................... Case (MS1316) 135H
EP
(SAE 85W-140)
Limited Slip Additive ............................................................................................................................... Case B91246
Brake System
Type of Fluid (Same as Hydraulic System) ...................................................................................... CASE TCH Fluid
Rae
7-59321
Revised
6-93
Printed
in
U.S.A.
