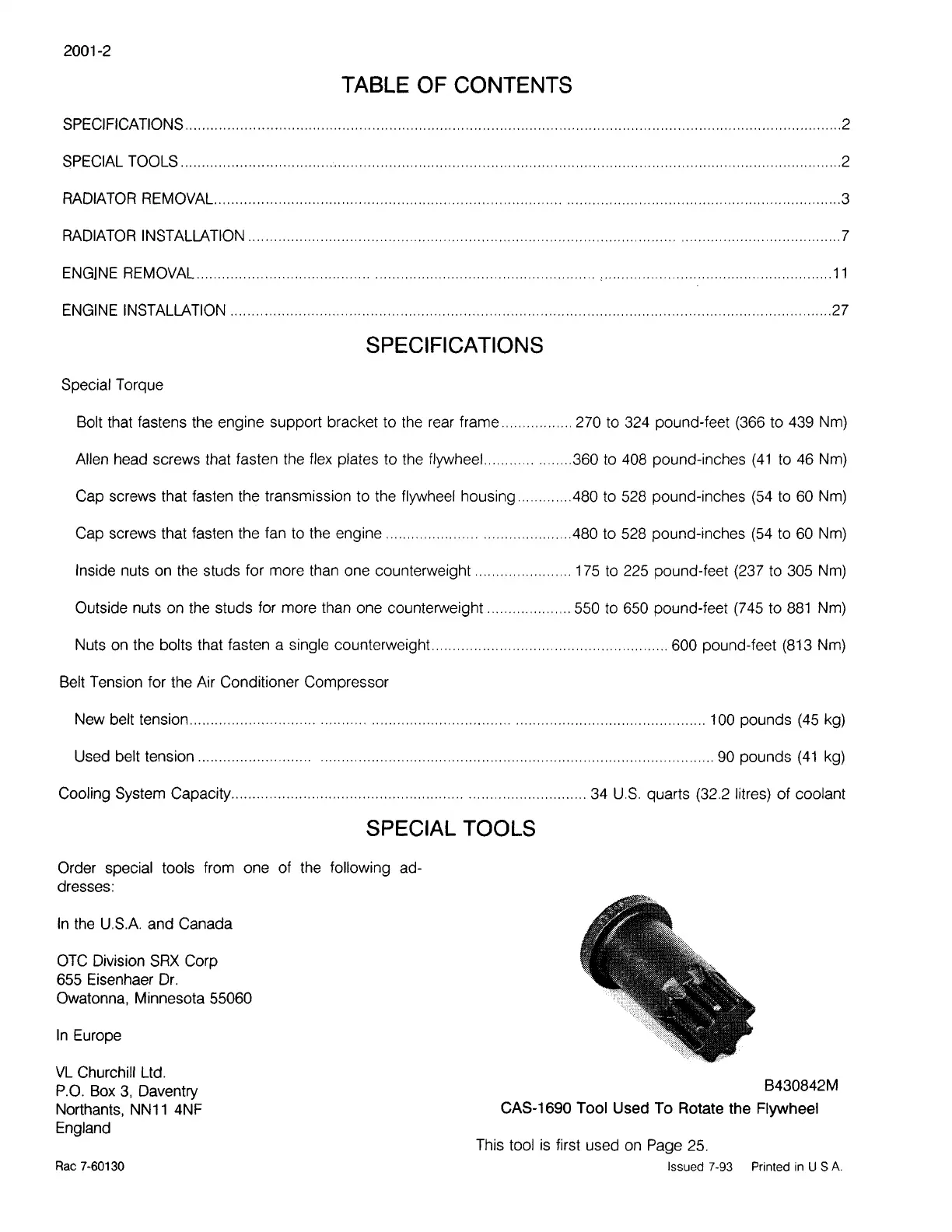

2001-2
TABLE OF CONTENTS
SPECIFICATIONS ........................................................................................................................................................... 2
SPECIAL TOOLS ............................................................................................................................................................ 2
RADIATOR
REMOVAL. .................................................................................................................................................. 3
RADIATOR
INSTALLATION ........................................................................................................................................... 7
ENGJNE
REMOVAL ............................................................................................. , ......................................................
11
ENGINE INSTALLATION .............................................................................................................................................. 27
SPECIFICATIONS
Special Torque
Bolt that fastens the engine support bracket to the rear frame ................. 270 to 324 pound-feet (366 to 439 Nm)
Allen head screws that fasten the flex plates to the flywheel .................... 360 to 408 pound-inches
(41
to
46
Nm)
Cap screws that fasten the transmission to the flywheel housing ............. 480 to 528 pound-inches (54 to
60
Nm)
Cap screws that fasten the fan to the engine .......................................... .480 to 528 pound-inches
(54
to 60 Nm)
Inside nuts on the studs for more than one counterweight ....................... 175 to 225 pound-feet (237 to 305 Nm)
Outside nuts on the studs for more than one counterweight .................... 550 to 650 pound-feet (745 to
881
Nm)
Nuts on the bolts that fasten a single counterweight.. ...................................................... 600 pound-feet (813 Nm)
Belt Tension for the Air Conditioner Compressor
New belt tension ....................................................................................................................... 100 pounds
(45
kg)
Used belt tension ........................................................................................................................
90
pounds
(41
kg)
Cooling System Capacity ................................................................................... 34
U.S.
quarts (32.2 litres) of coolant
SPECIAL TOOLS
Order special tools from one of the following ad-
dresses:
In
the U.S.A. and Canada
OTC
Division SAX Corp
655 Eisenhaer
Dr.
Owatonna, Minnesota 55060
In
Europe
VL
Churchill Ltd.
P.O.
Box
3,
Daventry
Northants,
NN11
4NF
England
Rae
7-60130
B430842M
CAS-1690 Tool Used To Rotate the Flywheel
This tool
is
first used on Page 25.
Issued
7-93
Printed
in
US
A.
