2001-7

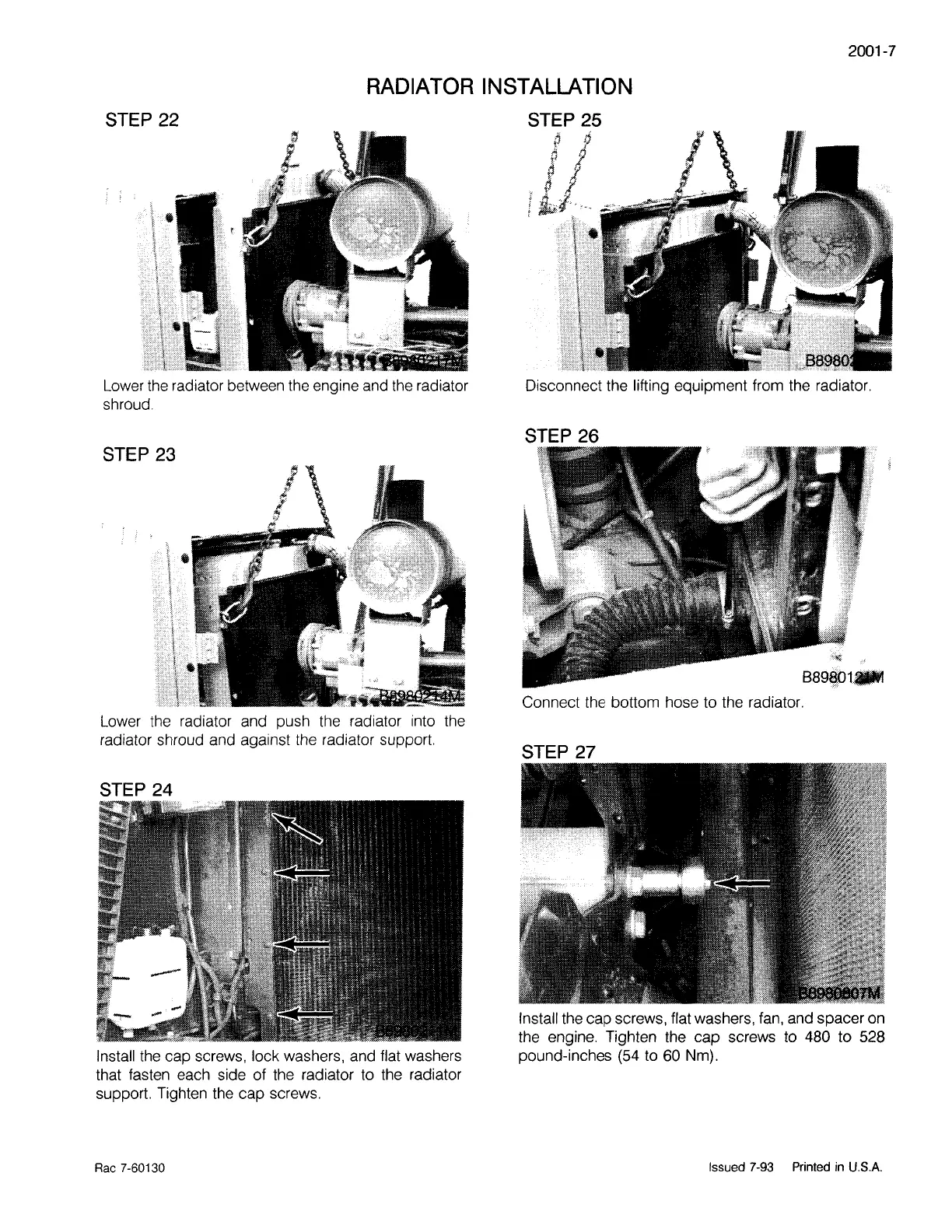

RADIATOR
INSTALLATION
STEP 22
Lower the radiator between the engine and the radiator
shroud.
STEP 23
Lower
the
radiator and push the radiator into the
radiator shroud and against the radiator support.
STEP 24
Install
the
cap screws, lock washers, and flat washers
that fasten each side of the radiator to the radiator
support. Tighten the cap screws.
Rae
7-60130
STEP 25
~
9
l J
,.
t,'t
l
!LI-,-,
Disconnect the lifting equipment from the radiator.
STEP 26
B89fH-
Connect the bottom hose to the radiator.
STEP 27
Install the cap screws, flat washers,
fan,
and spacer
on
the engine. Tighten the cap screws
to
480 to 528
pound-inches (54
to
60 Nm).
Issued
7-93
Printed
in
U.S.A.
