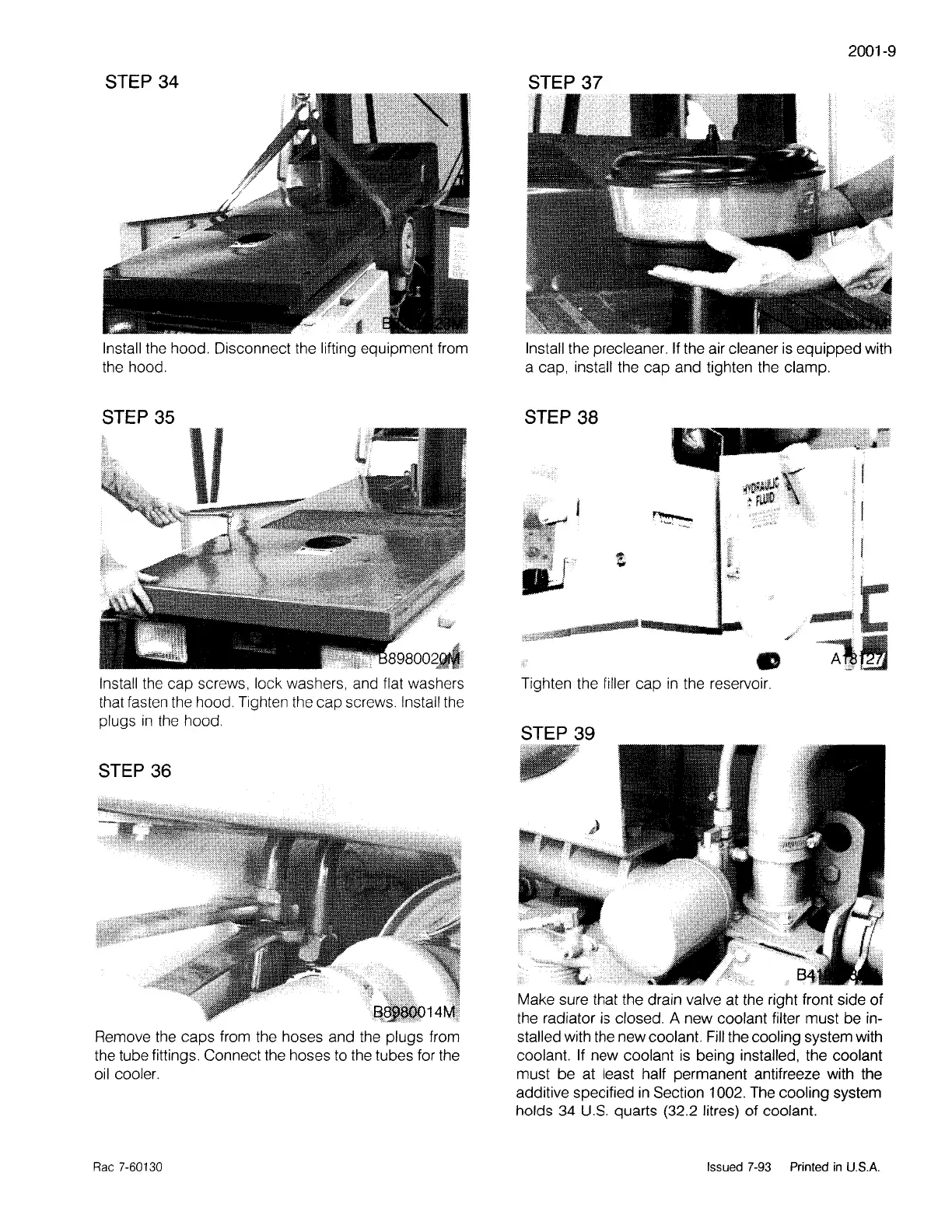

STEP 34
Install the hood. Disconnect the lifting equipment from
the hood.
STEP 35
Install
the
cap screws, lock washers, and flat washers
that fasten the hood. Tighten the cap screws. Install the
plugs
in
the hood.
STEP 36
Remove the caps from the hoses and the plugs from
the tube fittings. Connect the hoses to the tubes for the
oil
cooler.
Rae
7-60130
2001-9
STEP
37
Install the precleaner.
If
the air cleaner
is
equipped with
a cap, install the cap and tighten the clamp.
STEP 38
•
Tighten the filler cap
in
the reservoir.
STEP 39
Make sure that the drain valve at the right front side of
the radiator is closed. A new coolant filter must be
in-
stalled with the new coolant. Fill the cooling system with
coolant.
If
new coolant
is
being installed, the coolant
must be at least half permanent antifreeze with the
additive specified
in
Section 1002.
The
cooling system
holds 34
U.S.
quarts (32.2 litres) of coolant.
Issued
7-93
Printed
in
U.S.A.
