3. Position
the
mounting bracket under the front
of the
tractor and onto the anchor pins as shown
in
Figure
15.
Raise the front
of
the bracket and release the snap fast
pins
to
lock
in
place.
NOTE Model 644 and 646
-
The mounting bracket
is attached with
the two
clevis pins
and
safety pins connected
to
each front side
of
the frame.
4.
Lower
the
lift arms fully. Position the lift links on the
inside
of the
lift arms.
Put a
plain washer
on
each
clevis
pin and
install
in the
front hole
of
the lift arm
from
the
inside. Secure
the
links with the safety pins
at the outside. Refer
to
Figure
15.
5. Raise the lift arms into the transport position.

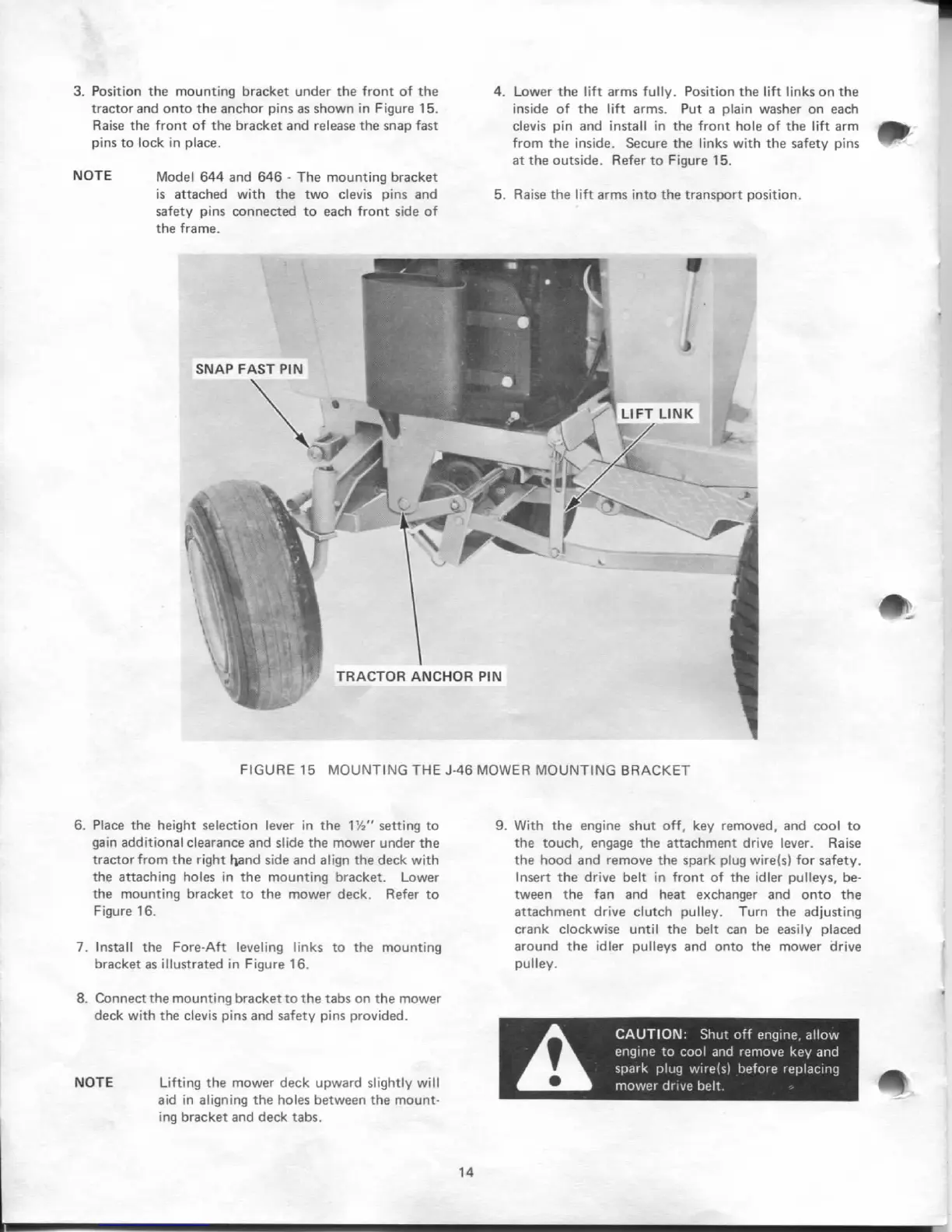

SNAP FAST PIN
FIGURE
15
MOUNTING THE J-46 MOWER MOUNTING BRACKET
6. Place
the
height selection lever
in the
V/a" setting
to
gain additional clearance and slide the mower under the
tractor from the right liand side and align the deck with
the attaching holes
in the
mounting bracket. Lower
the mounting bracket
to the
mower deck. Refer
to
Figure
16.
7. Install
the
Fore-Aft leveling links
to the
mounting
bracket as illustrated
in
Figure
16.
9. With
the
engine shut
off, key
removed,
and
cool
to
the touch, engage
the
attachment drive lever. Raise
the hood and remove the spark plug wire(s)
for
safety.
Insert
the
drive belt
in
front
of the
idler pulleys,
be-
tween
the fan and
heat exchanger
and
onto
the
attachment drive clutch pulley. Turn
the
adjusting
crank clockwise until
the
belt
can be
easily placed
around
the
idler pulleys
and
onto
the
mower drive
pulley.
8. Connectthe mounting bracketto the tabs on the mower
deck with the clevis pins and safety pins provided.
NOTE Lifting the mower deck upward slightly will
aid
in
aligning the holes between the mount-
ing bracket and deck tabs.
CAUTION:
Shut
off
engine, allow
engine
to
cool and remove key and
^^^^^L
spark plug wire(s) before replacing
^^^^fljjjft
mower drive belt.
