Case K40 - Installation Continued; Tractor Mounting Bracket Installation

MOUNTING BRACKET

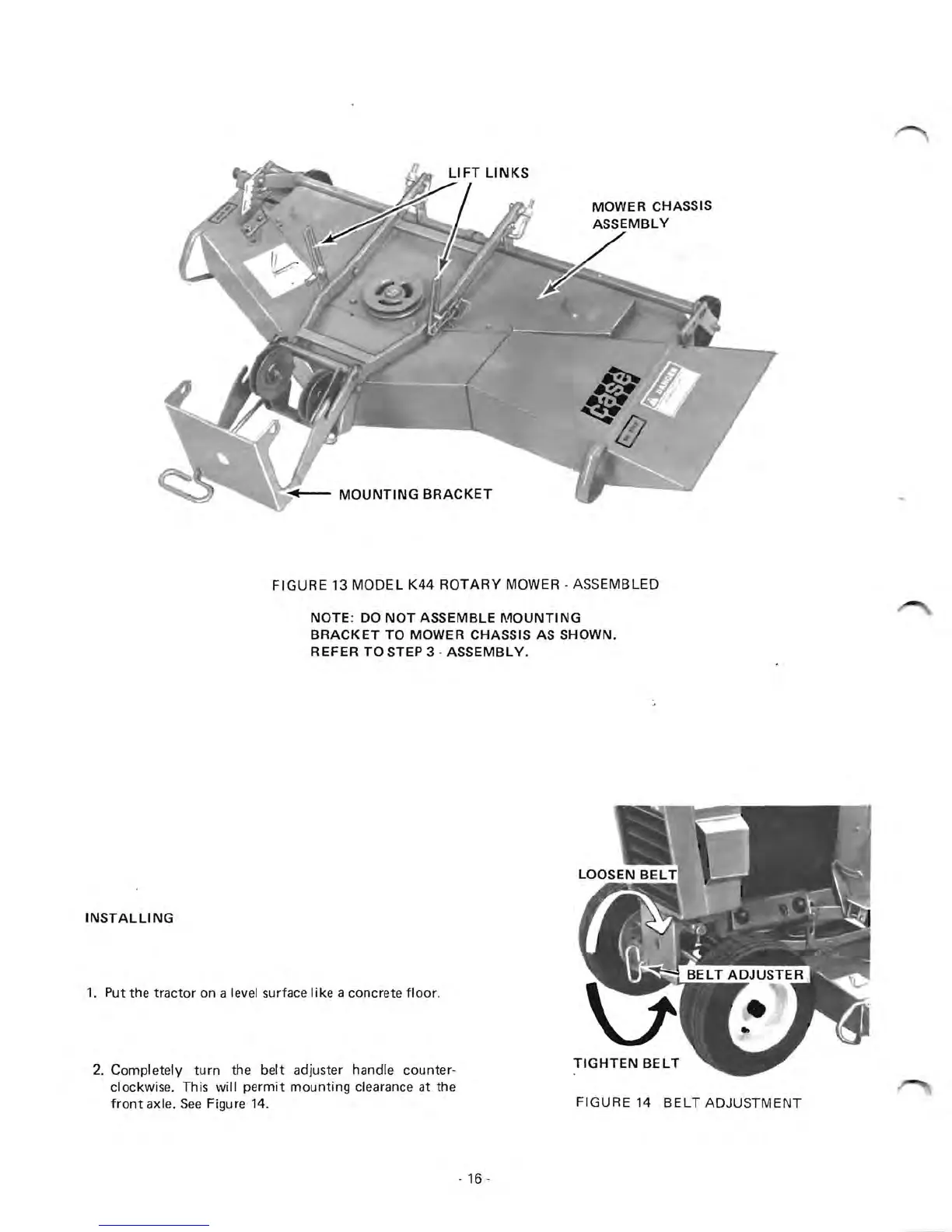

FIGURE 13 MODEL K44 ROTARY MOWER - ASSEMBLED
NOTE: DO
NOT ASSEMBLE MOUNTING
BRACKET TO MOWER CHASSIS AS SHOWN.
REFER
TO STEP 3 - ASSEMBLY.
INSTALLING
1. Put the tractor on a level surface like a concrete floor.
2. Completely turn the belt adjuster handle counter-
clockwise. This will permit mounting clearance at the
front axle. See Figure 14_
TIGHTEN BE L T
FIGURE 14 BELT ADJUSTMENT
