— 6 —

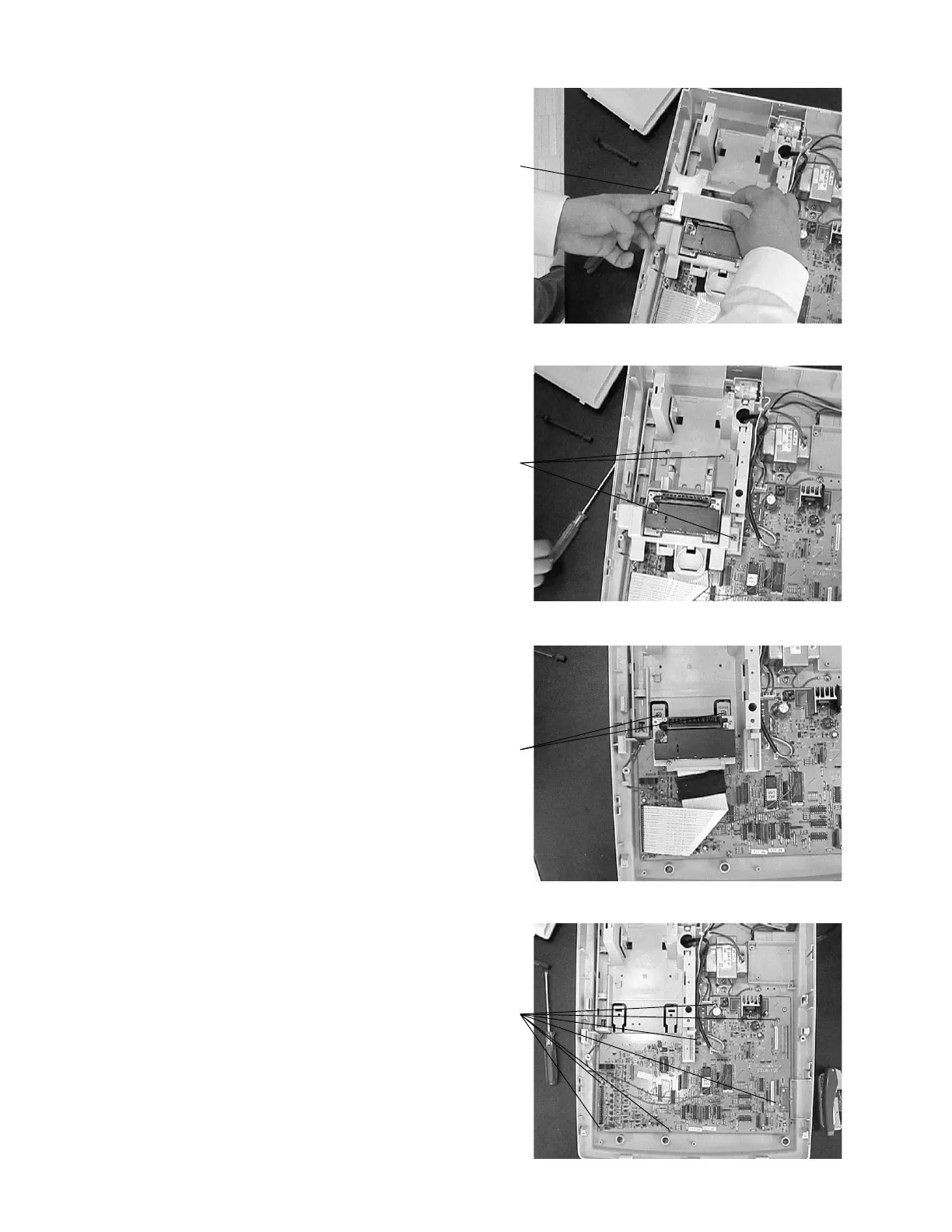

Hook
4.
Release the hook them Remove the write side.
5.
Release 3 screws to remove printer plastic
stand.
6.
Release 2 screws to remove printer unit.
7.
To remove the main PCB, release 7 screws.
Remove the 3 screws
Remove the 2 screws
Remove the 7 screws
7
9
