Casio CTK-520L Service Manual

— 6 —
1
2
4
5
3
6
7
1 APO signal
MSM6755B-07 pin 39
2 Reset signal
RH5VL40AA pin 1
4 Sound signal (R-ch)
JH connector pin 3
5 Sound signal (L-ch)
JH connector pin 1
6 LED drive signal LX0
MSM6755B-07 pin 88
3 Clock
MSM6755B-07 pin 32
7 LED drive signal LY0
MSM6755B-07 pin 80
Tone: Whistle (59)
Key : A4
Key: D4

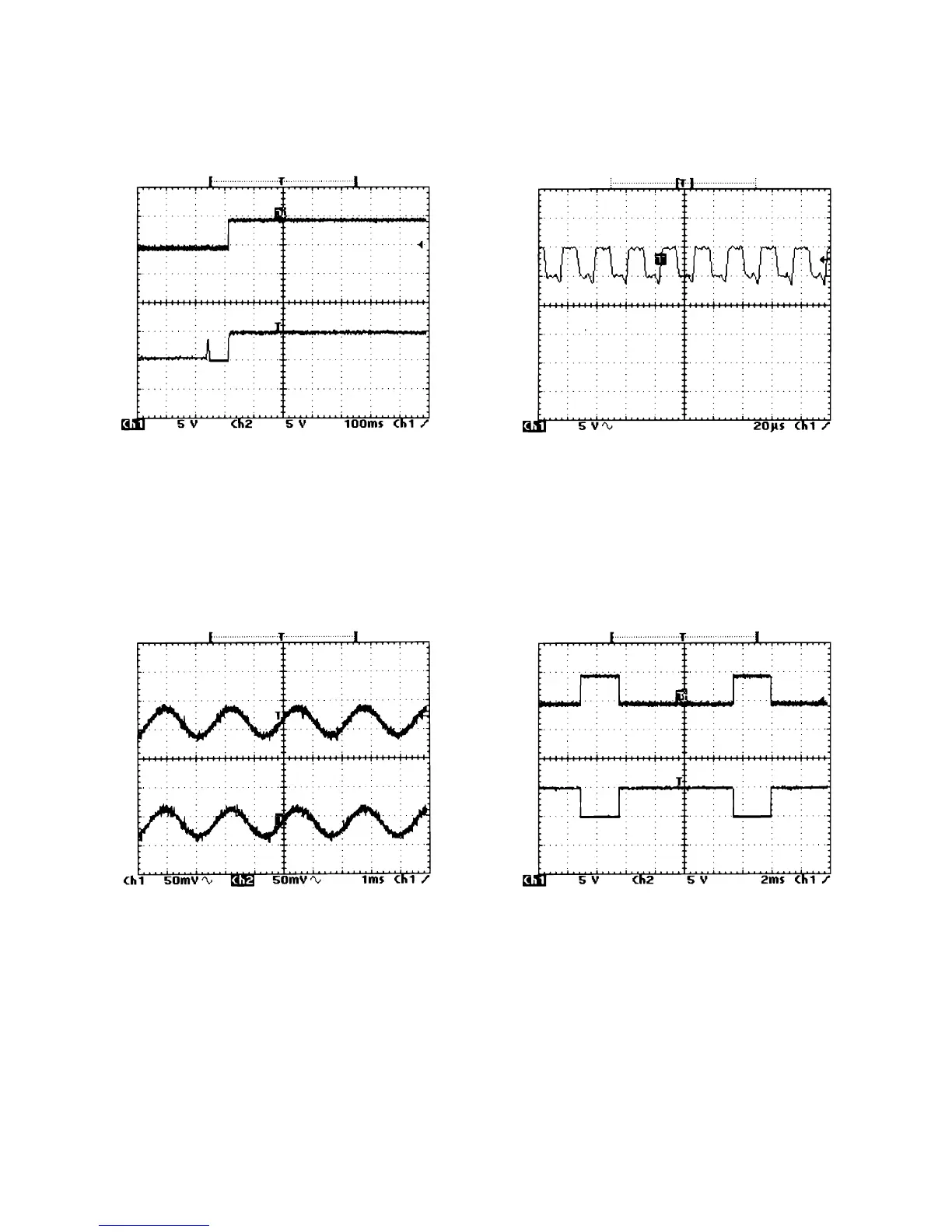

MAJOR WAVEFORMS
