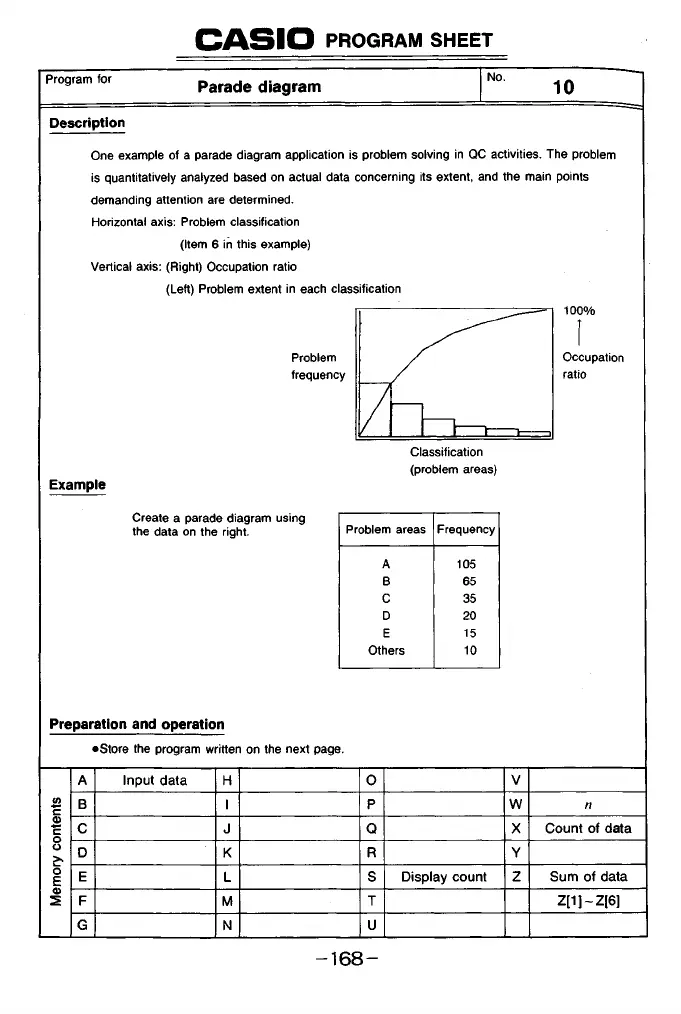

CASIO
PROGRAM SHEET
Program for
Parade diagram
No.
10
Description
One example of a parade diagram application is problem solving in QC activities. The problem
is quantitatively analyzed based on actual data concerning its extent, and the main points
demanding attention are determined.
Horizontal axis: Problem classification
(Item 6 in this example)
Vertical axis: (Right) Occupation ratio
(Left) Problem extent in each classification
Problem
frequency
Example
(problem areas)
Create a parade diagram using
the data on the right.
Problem areas Frequency
A
105
B
65
C
35
D
20
E 15
Others 10
Preparation and operation
•Store the program written on the next page.
Memory contents
A Input data
H 0
V
B
I P
W n
C J Q
X Count of data
D K R
Y
E
L
S Display count
Z Sum of data
F
M
T
CO
N
\
Ñ
G
N U
- 1 6 8 -
