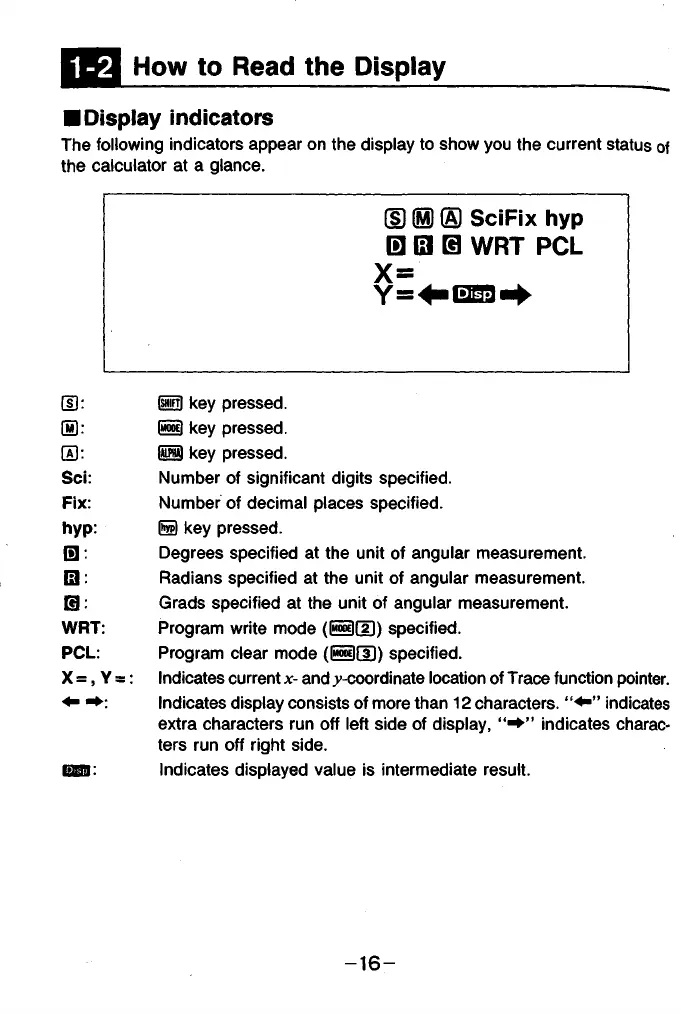

1-2 How to Read the Display
■ Display indicators
The following indicators appear on the display to show you the current status of
the calculator at a glance.
S M A SciFix hyp
D R G WRT PCL
x=
S : shift key pressed.
M : shift key pressed.
A : alpha key pressed.
Sci: Number of significant digits specified.
Fix: Number of decimal places specified,
hyp: hyp key pressed.
D : Degrees specified at the unit of angular measurement.
R : Radians specified at the unit of angular measurement.
G : Grads specified at the unit of angular measurement.
WRT: Program write mode 2 specified.
PCL: Program clear mode 3 specified.
X = , Y =: Indicates current x- and y-coordinate location of Trace function pointer.
< > Indicates display consists of more than 12 characters. “ *<” indicates
extra characters run off left side of display, > indicates charac
ters run off right side.
Disp: Indicates displayed value is intermediate result.
- 1 6 -
Y = < disp >
