Casio PCR-T280 Service Manual

— 3 —
DISASSEMBLY3.

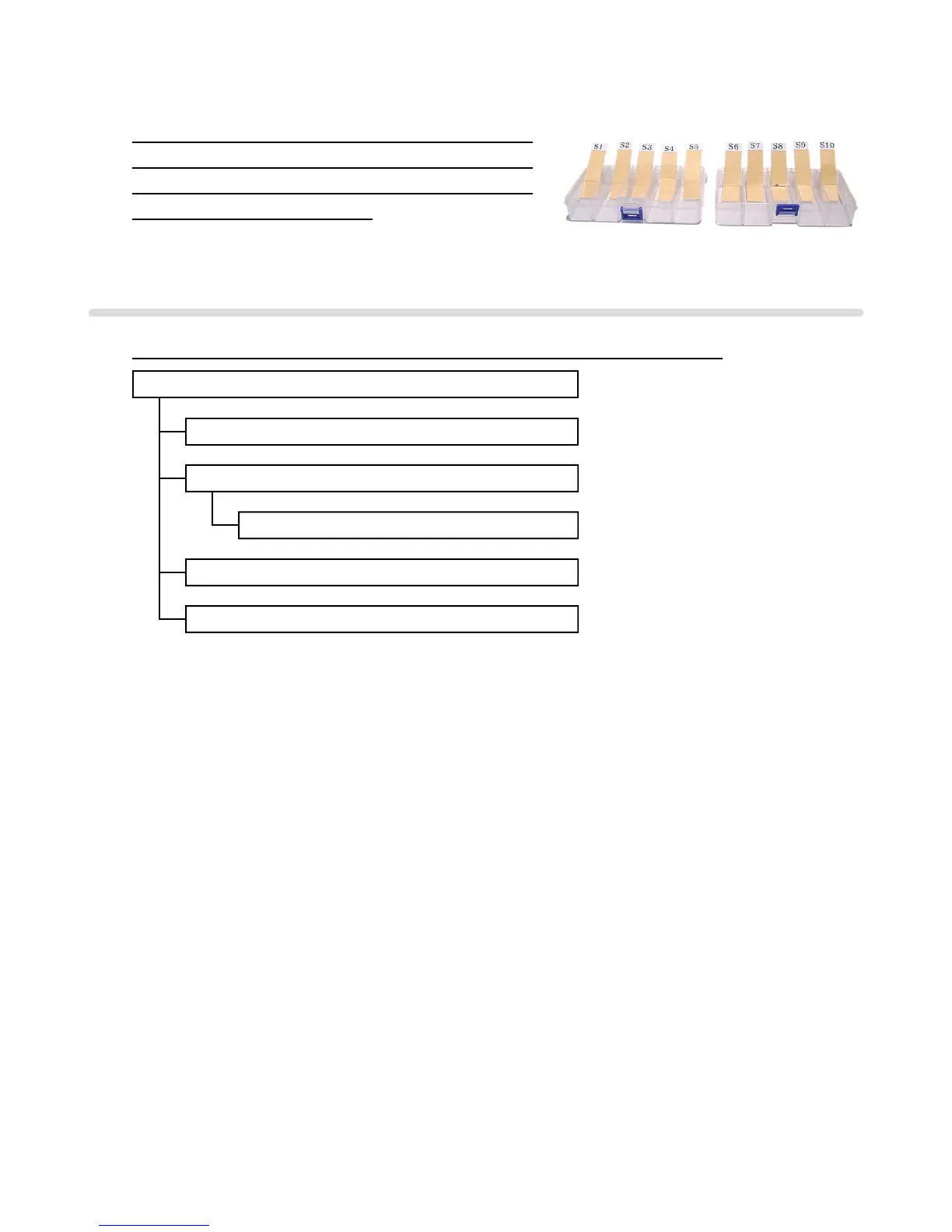

Make sure to use the correct screws when
assembling since there are several kinds of them. It
is recommended to sort them as shown in the right
illustration when disassembling.
See the owchart below for the order of disassembling the major components.
A.UPPER CASE
B.MODE-KEY-SW-ASSY
C.PCB-ASSY (E276-1 PCB, E276-PR PCB)
E.PRINTER UNIT
D.DISPLAY-ASSY
F.KEY-BOARD-ASSY

Casio PCR-T280 Specifications

General

Type	Electronic cash register
Paper Width	58 mm
Printer	Thermal Printer
Power Source	AC
Printing Speed	14 lines per second
Cash Drawer	5 Bill / 5 Coin
