CD ADJUSTMENT
Precautions
To prevent damage caused by static electricity, the following procedures for grounding is requir or repairing the
unit.
[Note] Remove the connection after installed.
1. Grounding for the human body
Be sure to put on a wrist-strap for grounding (with impedance lower than 10
6
Ω) whose other end is grounded.
The strap works to drain away the static electricity build-up on the human body.
2. Grounding for the work table
Be sure to lay on the table a conductive sheet (with impedance lower than 10
6
Ω) such as a sheet of copper
which is grounded.
3. As static electricity build-up on clothes is not drainded away, be careful not to let your clothes touch the unit.

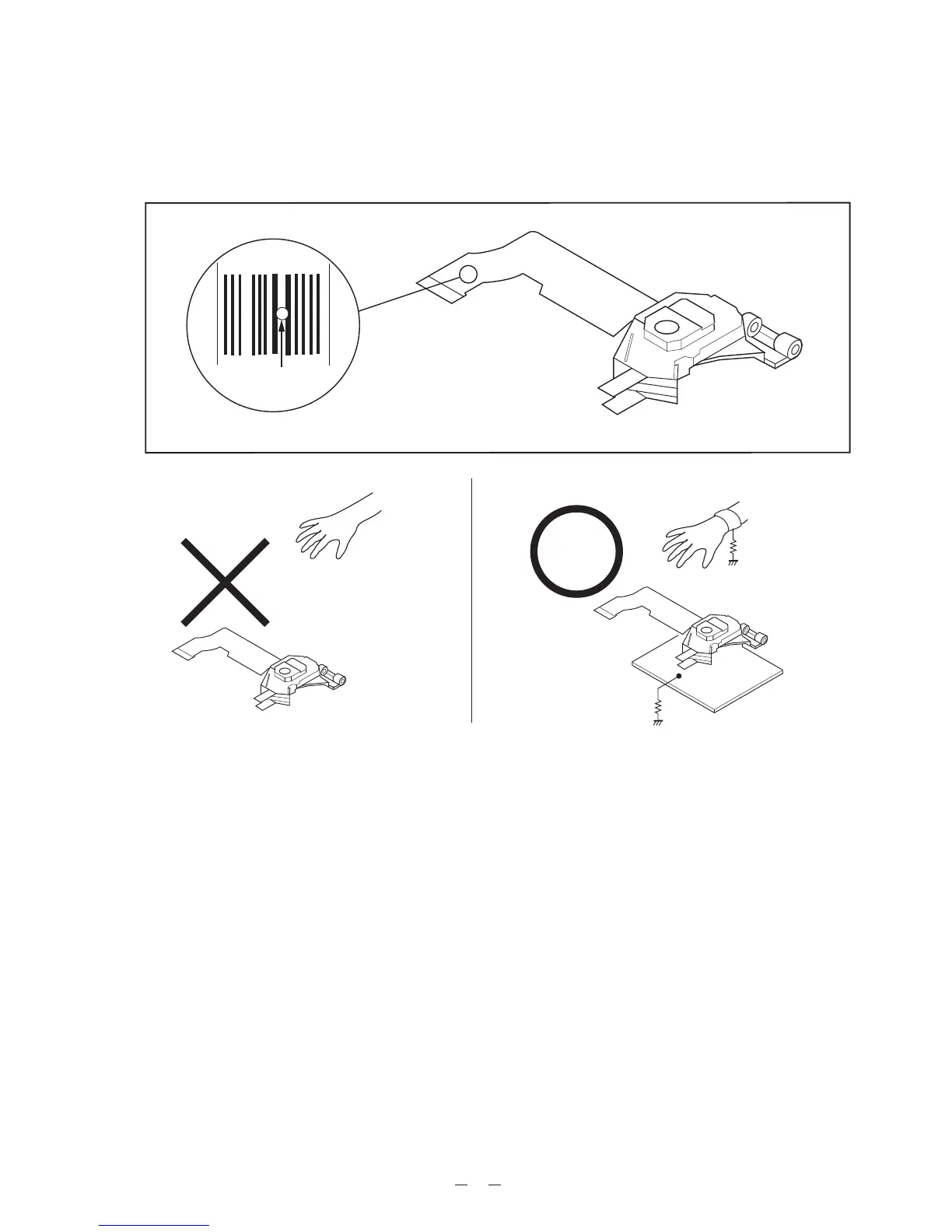

4. The short-pad on the pick-up PCB of a spare part is short-circuited for protection during shipment. To open
the short circuit, remove the soldering quickly with a soldering iron whose insulation resistance is larger than
10MΩ after connection to a suitable APC circuit.
Equipment Required
* Multi Meter
* Oscilloscope
* Compact Disc
* Dummy Load 10 kΩ
Shorting tab
Desolder here
Pickup
1. Wrist-Strap
for grounding
1MΩ
1MΩ
2. Conductive Sheet
2
Pickup
To Next Page
