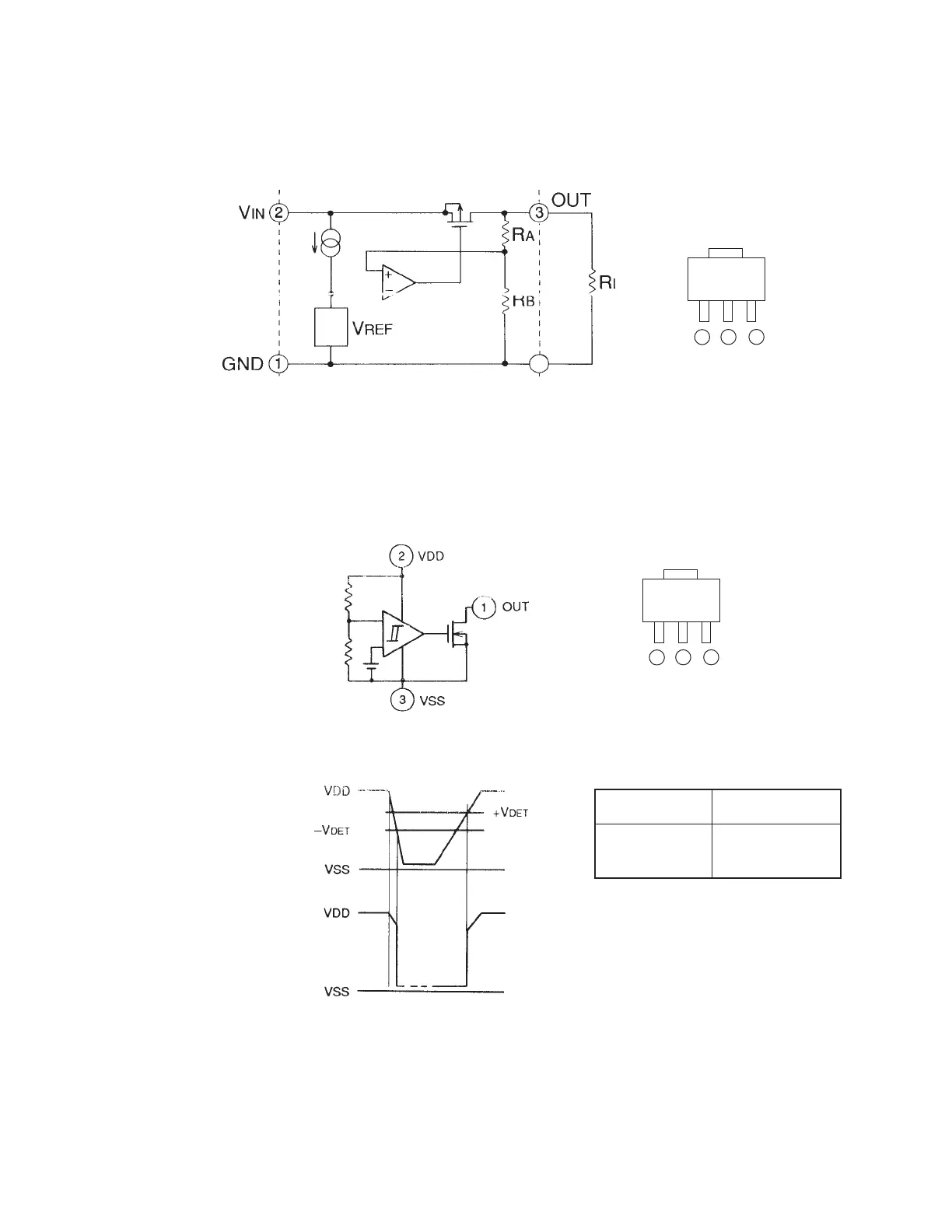

6-5. VOLTAGE REGULATOR: S-81250HG-RD (IC3, IC4)
Output Voltage (Vout) : 5V ± 5%
[4.75V (MIN) ~ 5.25V (MAX)]
6-6. VOLTAGE DETECTOR: RH5VA60AA-T1 (IC5)
Detection Voltage(–VDET) : 6V ± 2.5%
[5.85V (MIN) ~ 6.15V (MAX)]
Input voltage Output voltage
>6V 5V
<6V 0V
2
Vin
1
Vout
3
GND
1
GND
2
Vin
3
Vout
