— 14 —
C0~C47
CPU
ROM
ROM
(Character Generator)
(Operation Program)
HD62063B01
POWER SUPPLY
CHIP FOR LCD
SC371015FU
GATE ARRAY
µ
PD65005G-566-22
Power supply circuit
VDD
GND
LCD
DRIVE VOLTAGES
V1 ~ V4, VREG
TO KEYBOARD
DATA BUS
S112~S191
S32~S111
S0~S31
LCD
192
×
48 dots
INTERFACE FOR
DATA TRANSMISSION
& DATA RECEPTION
OPEN (OFF)
LOCK (ON)
µ
PD23C4001EBGW-304
MSM6585AV
-Z-358B
LCD DRIVER
LCD DRIVER
LCD DRIVER
MSM6585AV
-Z-358B
MSM6585AV
-Z-358B
MAIN
SWITCH
RAM

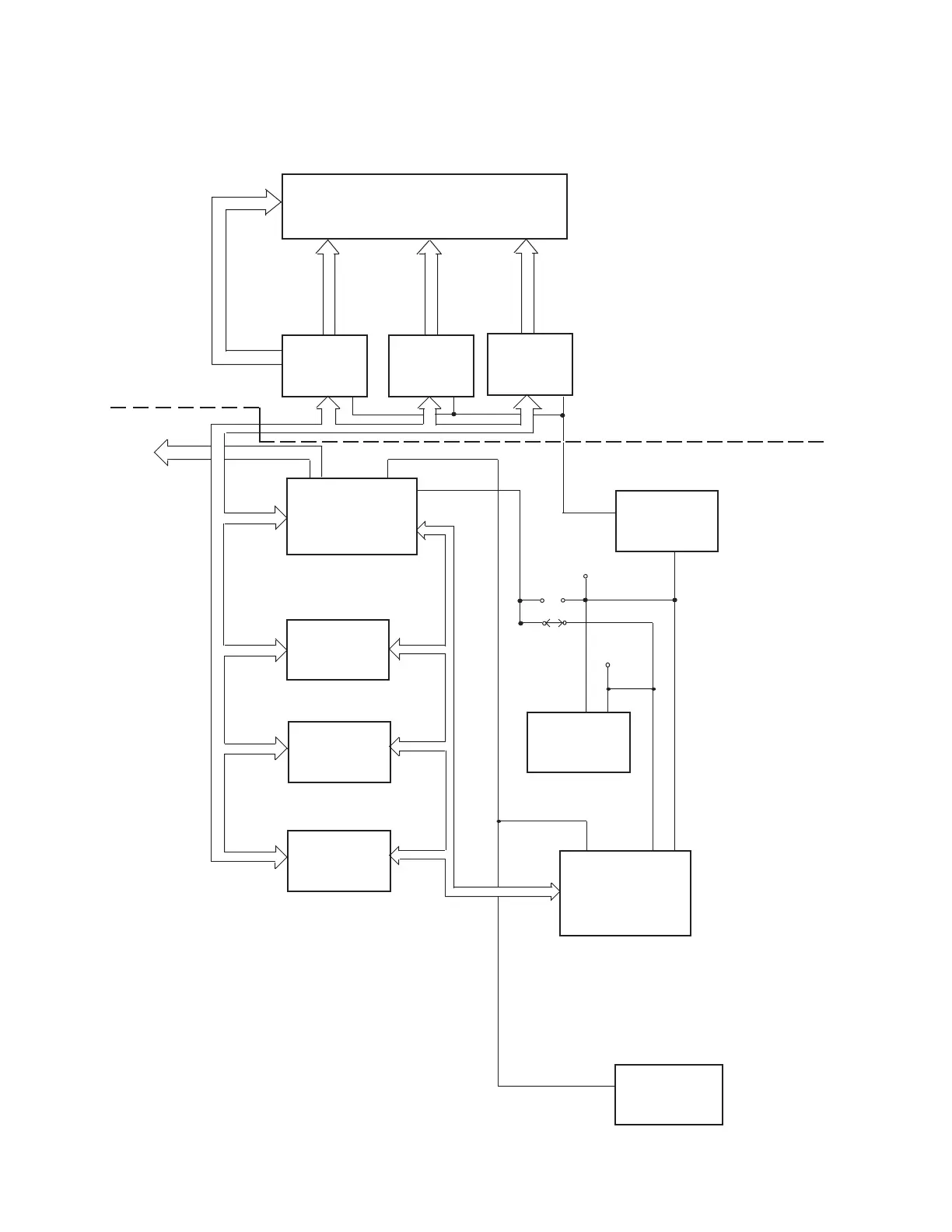

9. BLOCK DIAGRAM
CD760-TS
M5M51008AFP-
10LL
HD62076C02
PCB-L575-1
PCB-L574-E2
14
16
Table of Contents
Default Chapter
2
Default Chapter
2
Table of Contents
2
1 Schematic Diagram
6
2 Specifications
6
3 To Replace the Battery
7
4 Error Message
8
5 To Reset the Digital Diary
8
6 To Save the Data to Other Machine
9
7 To Check the Memory Capacity
12
8 Disassembly
13
9 Block Diagram
15
10 Circuit Explanations
16
System Chart
16
Power Supply Circuit
17
CPU Pin Description (HD62076C02)
22
Gate Array Pin Descriptions (Μpd65005Gc-566-3B6)
23
Power Supply Chip IC Pin Descriptions (SC371015FU)
23
Character Generator ROM Pin Descriptions (HD62063B01)
24
Operation Program ROM Pin Descriptions ( Μ PD23C4001EBGW-304)
25
RAM Pin Descriptions (M5M51008AFP-10LL)
25
11 Diagnostic Operation
26
12 Troubleshooting
31
13 Parts List
34
14 Pcb View
36
15 Assembly View
37
