11 Design and Function
This chapter provides you with important safety notices on the design and function of the
device.

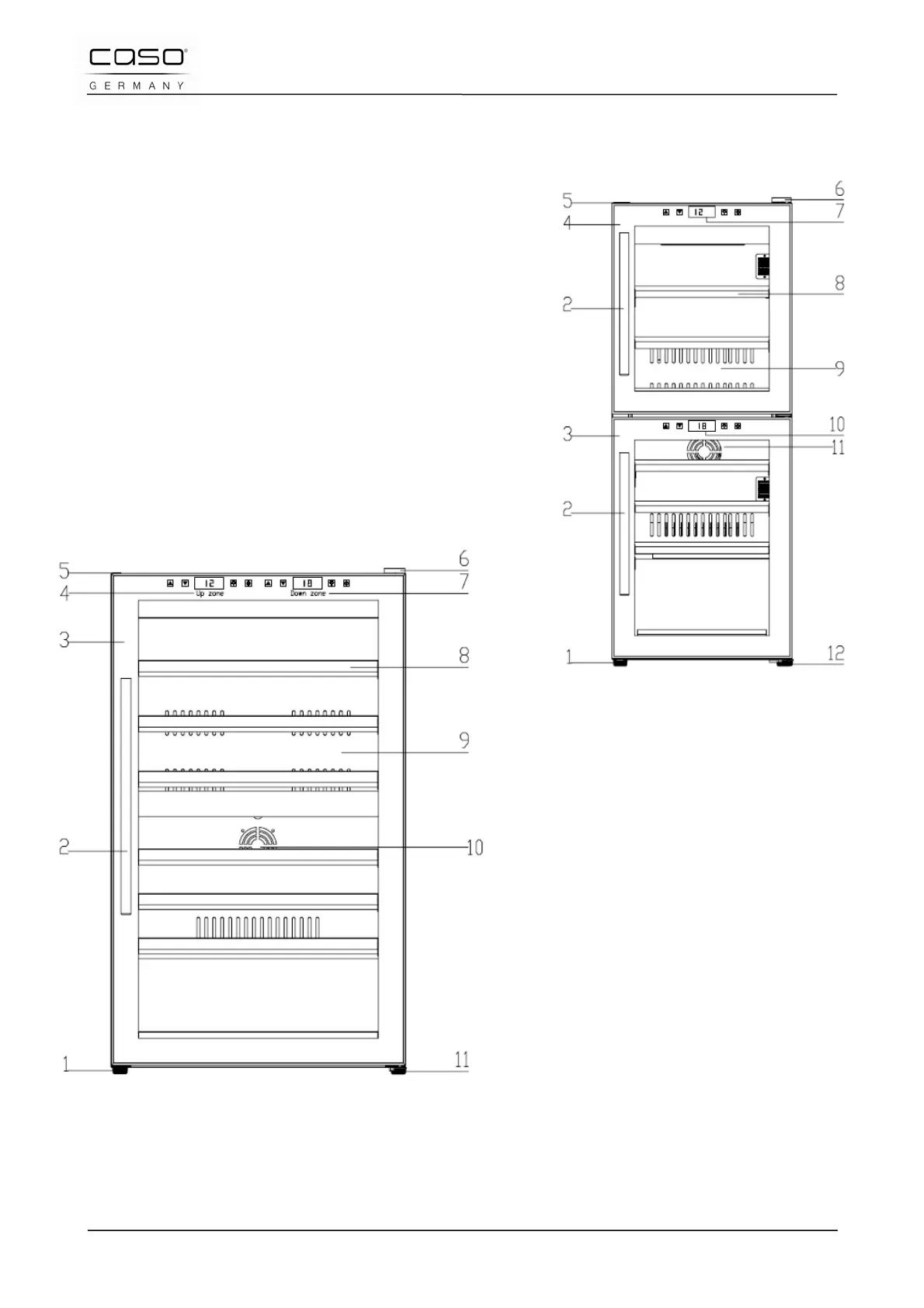

11.1 Complete overview
Winemaster Touch 38-2D
(1) foot (2) door handle
(3) lower door (4) upper door
(5) top cover (6) top hinge cover
(7) upper display (8) bottoms (7 pieces)
(9) back cover fan (10) lower display
(11) fan warming (12) adjustable foot
Winemaster Touch 66
(1) Foot (2) Door handle
(3) Door frame (4) Display (top)
(5) Top cover (6) Hinge Cover
(7) Display (down)
(8) wooden bottoms (7 pieces)
(9) Back ventilation board
(10) Outlet for cold air
(11) Foot (adjustable)
12 Operation and Handing
This chapter provides you with important notices with regard to operating the device.
