TSM-35 Screw Pocket Machine Troubleshooting

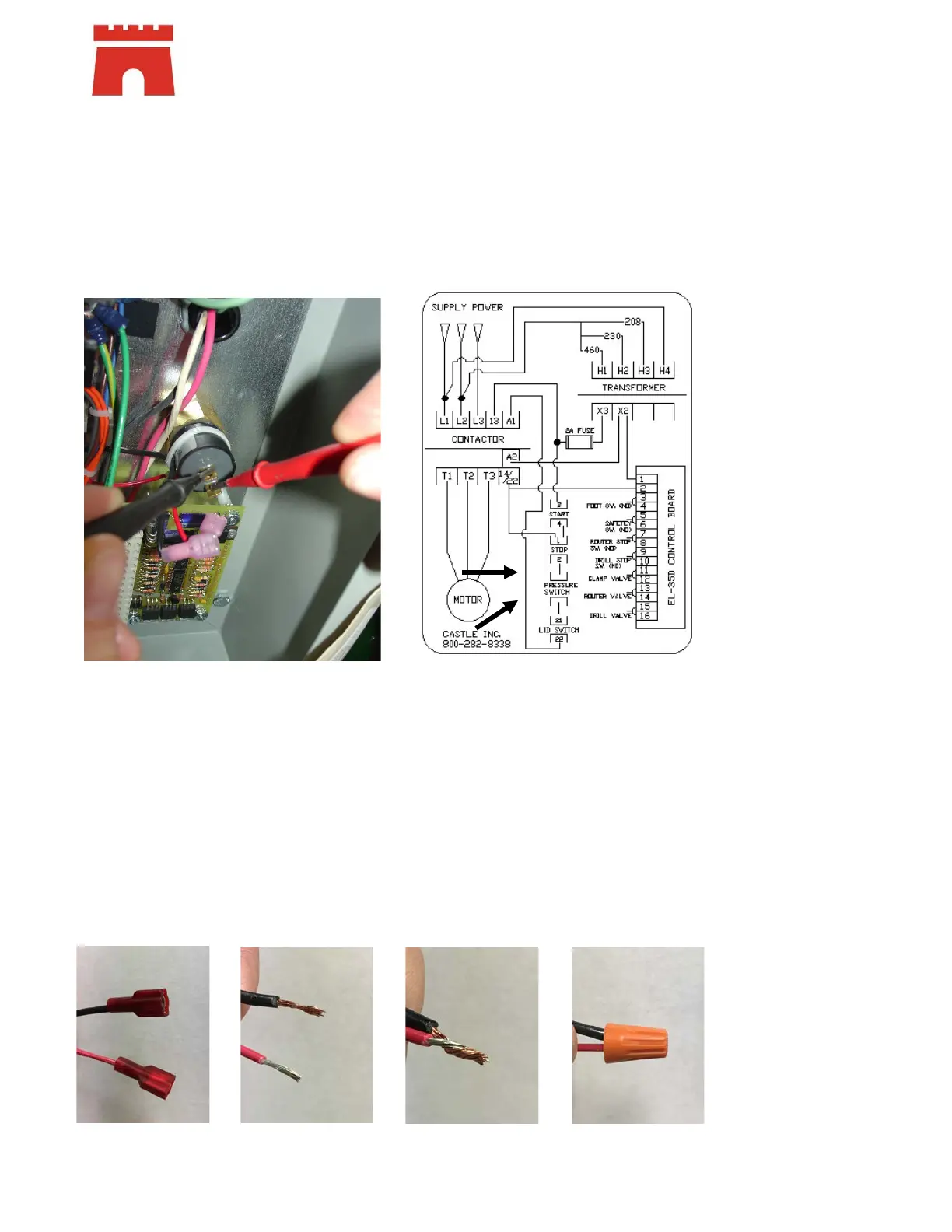

35.14 Test Air Pressure Switch (NO)
• Disconnect power and air from the machine.
• Unplug the black and red wires from the pressure switch
• Touch both of the pins on the pressure switch with the tester pins.
• The switch should read open with no air attached to the machine.
• Attach air to the machine and the switch should then read closed.
NOTE:
The air pressure switch is no longer used in the TSM-35. Its removal does not constitute a safety
issue.
To bypass the switch in the system:
• Unplug the black and red wires from the pressure switch
• Cut the terminals off the wires, and strip the insulation
• Twist the ends together lightly
• Used a locknut to secure the wires
