LED AG - Hold.
May not be selected. It signals that the values shown on the
displays AL and AM (normally Amperes and Volts) are those
used during last welding. Activated at the end of each weld-
ing session.
LED AH - Voltage.
In all welding processes, it indicates that the display AM
shows the re-set welding voltage or, if in combination with
LED AG lit, the last measured voltage.
Knob AI.
The following values are set: welding current A, wire speed
( ), thickness ( ), program number PRG. In the service
functions the following are selected: H2O, TRG, SP, HSA, CrA,
PrF, PoF, Acc, bb, L, Dp, PPF, Ito, Fac.
In MMA welding processes, the service functions select the
abbreviations: HS, AF, SP, Fac.
In MIG synergic processes when a value is adjusted the other
values are adjusted as well. All these values are shown on
the display AL.
Knob AN.
The following sizes are set:
In synergic MIG the arc length, in conventional MIG the
welding voltage.
Inside the service menu, according to the value set by knob
AI it selects the set value, the activation or desactivation of
the same, or an additional selection to be made inside the
fuction.
Display AL.
In all welding processes, it numerically displays the selec-
tions made via the selection key AE and adjusted via the
knob AI.
For the welding current (LED AD) it displays the amperes.
For the wire speed (LED AC) it displays the meters per
minute.
For the thickness (LED AB) it displays the millimeters.
For (LED AA) it displays the set program number.
In the service functions the following are selected: H2O, TRG,
SP, HSA, CrA, PrF, PoF, Acc, bb, L, Dp, PPF, Ito, Fac.
In MMA welding processes, the service functions select the
abbreviations: HS, AF, SP, Fac.
For the parameters within the service functions that are
shown on the display AM, see the paragraph on service func-
tions.
When the machine is in the warning mode, it displays a
flashing warning (exemple: OPN if the lateral panel is open.
When the machine is in the error mode it displays Err.
Display AM.
Displays by the number: in synergic MIG the arc length and
in conventional MIG the welding voltage.
For the welding voltage (LED AH) it displays the Volts. For the
arc length (LED AHoff) it displays a number between 9.9 and
+9.9, 0 being the recommened value.
For the parameters in the MIG service function, that are
shown on the display AM
, see the paragraph on service func-
tions .
When the machine is in error mode it displays the corre-
sponding error code between 1 and 99.
Selection key AO.
Each time this key is pressed, the selected process is shown
by LED AP/AQ/AR.
LED AP Pulsed MIG.
Shows that the selected process is the synergic MIG Pulsed.
LED AQ SYNERGIC MIG.
Shows that the selected process is synergic MIG.

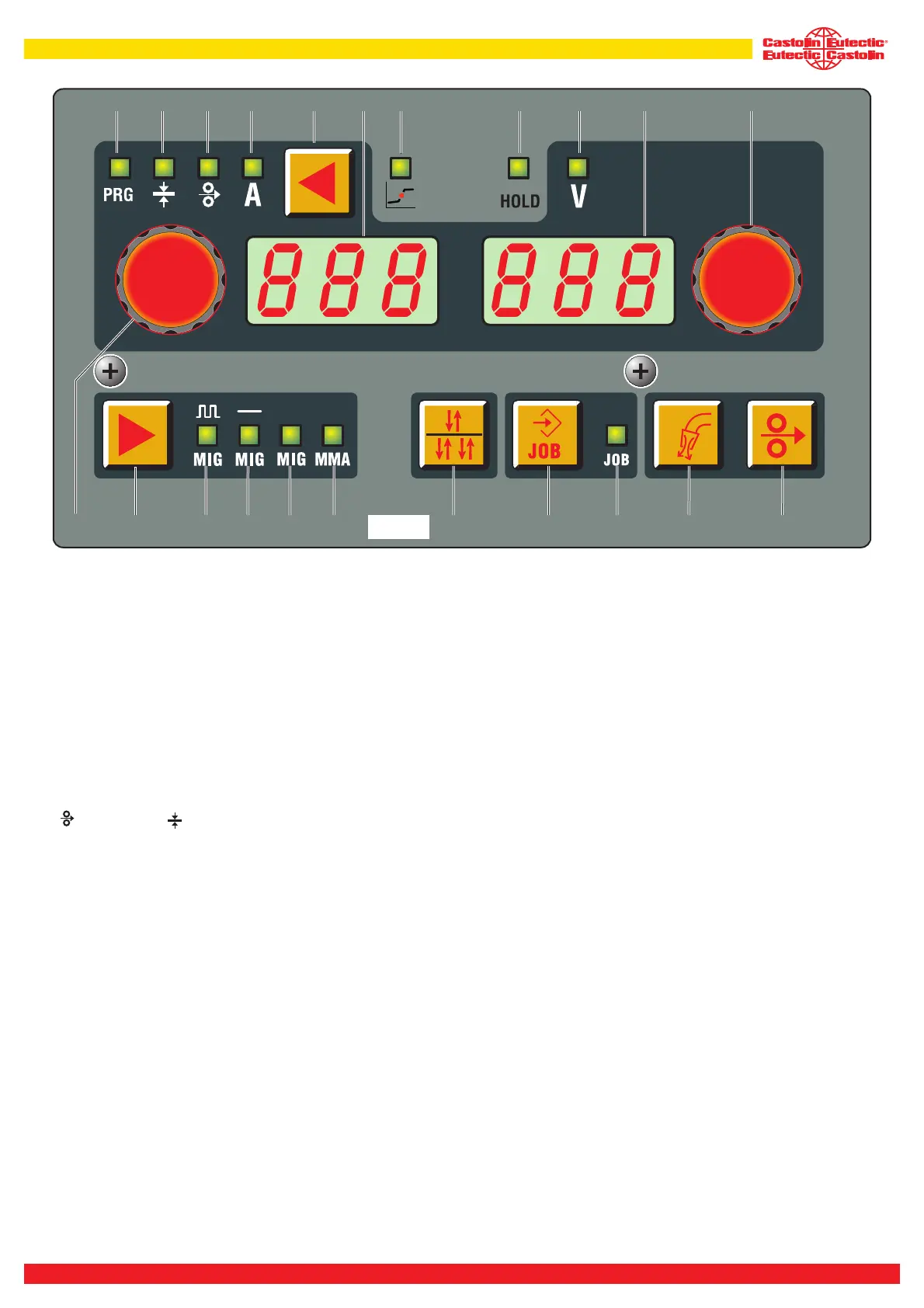

AA AB AC AD AL AGAF AH AM
AN
AE
APAO AQ AR AS AU AV AZ AY AWAI
Fig. 2
