CAT 3412C - Fuel System Secondary Filter - Replace

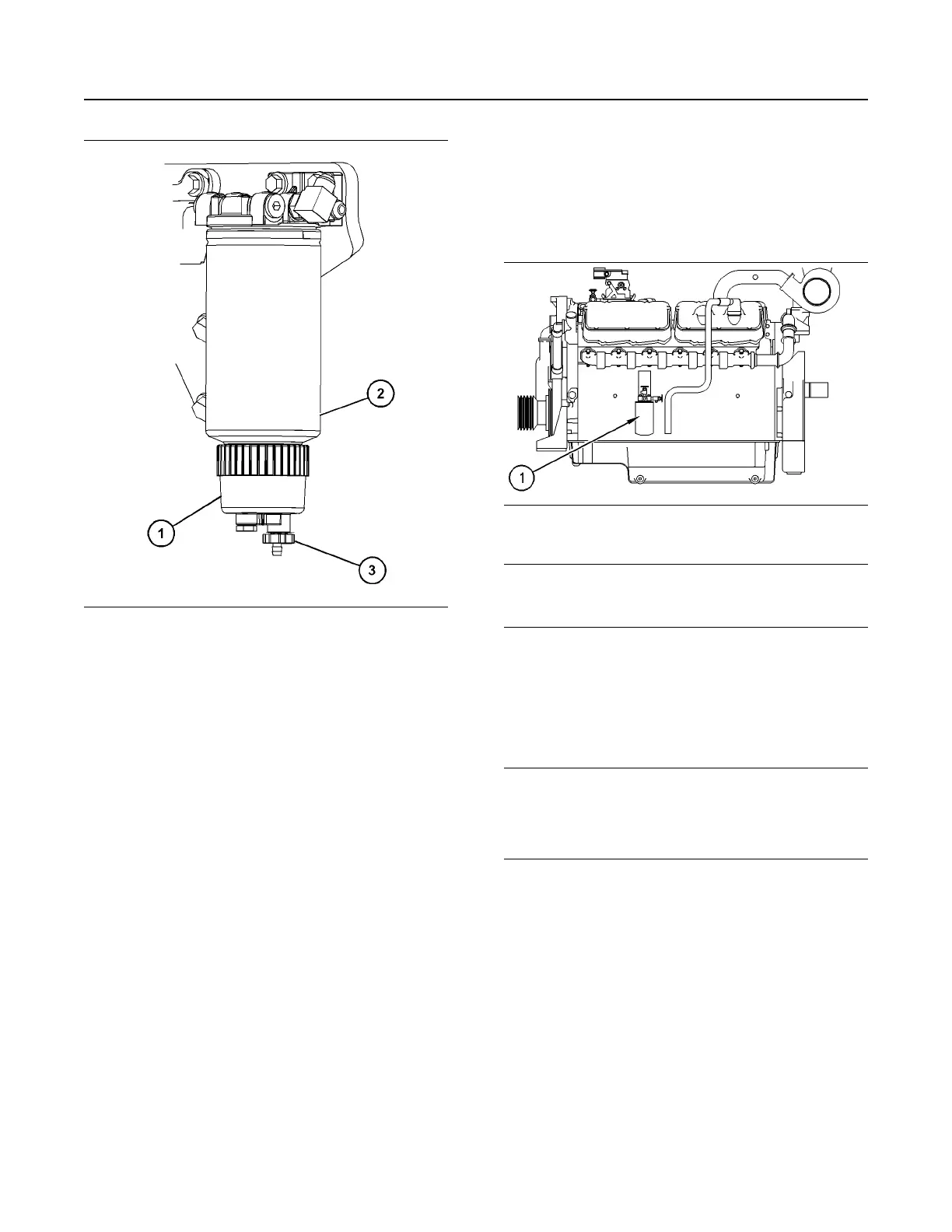

Illustration 112 g06018029
(1) Bowl
(2) Element
(3) Drain
1. Place a suitable container below the water
separator.
2. Open the drain (5). Allow the fluid to drain into the
container.
3. When clean fuel drains from the water separator
close the drain (5). Tighten the drain by hand
pressure only. Dispose of the drained fluid
correctly.
i00703732
Fuel System Secondary Filter -
Replace
SMCS Code: 1261-510-SE
Illustration 113 g00307572
(1) Final fuel filter
NOTICE
Use a suitable container to catch any fuel that might
spill. Clean up any spilled fuel immediately.
1. Remove the used fuel filter and discard the used
fuel filter.
2. Clean the gasket sealing surface of the fuel filter
base. Ensure that all of the old gasket is removed.
3. Apply clean diesel fuel to the new fuel filter gasket.
NOTICE
Do not fill the fuel filters with fuel before installing the
fuel filters. The fuel will not be filtered and could be
contaminated. Contaminated fuel will cause acceler-
ated wear to fuel system parts.
4. Install the new fuel filter. Spin the new fuel filter
onto the fuel filter base until the gasket contacts
the base. Tighten the fuel filter by hand by one full
turn. Do not overtighten the fuel filter. Use the
rotation index marks that are on the fuel filter as a
guide for proper tightening.
5. Prime the fuel system. Refer to the Operation and
Maintenance Manual, “Fuel System - Prime” for
information on priming the fuel system.
SEBU7125-13
131
Maintenance Section
Fuel System Secondary Filter - Replace
