CAT 3412C - Generator Lead Connections; Wye Configuration Diagrams

6 Lead

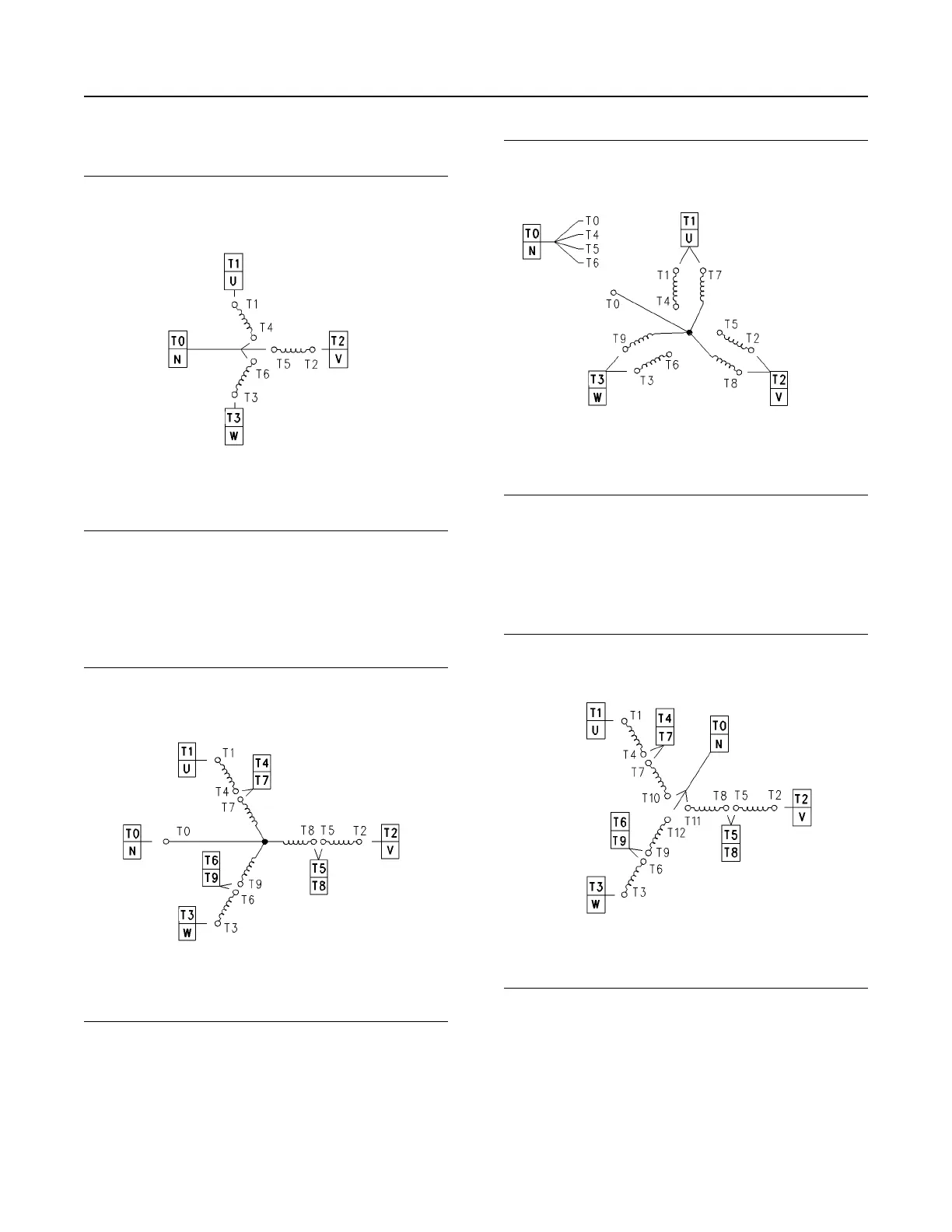

Illustration 28 g00611486
6 Lead Wye Configuration
Terminals T4, T5 and T6 become neutral connection
when the terminals are tied together.
10 Lead
Illustration 29 g00669334
10 Lead Wye Configuration - High Voltage (for 3306B
and 3406C generator sets only)
Terminal T0 is the neutral lead.
Illustration 30 g00611596
10 Lead Wye Configuration - Low Voltage (for 3306B
and 3406C generator sets only)
Terminal T0 is the neutral lead.
12 Lead
Illustration 31 g00661863
12 Lead Wye Configuration - High Voltage
Terminals T10, T11 and T12 become neutral
connection when the terminals are tied together.
SEBU7125-13
25
Product Information Section
Generator Lead Connections
