CAT 3412C - Product Information Section; Model Views Illustrations

Product Information
Section
Model Views
i06545965
Model View Illustrations
SMCS Code: 1000

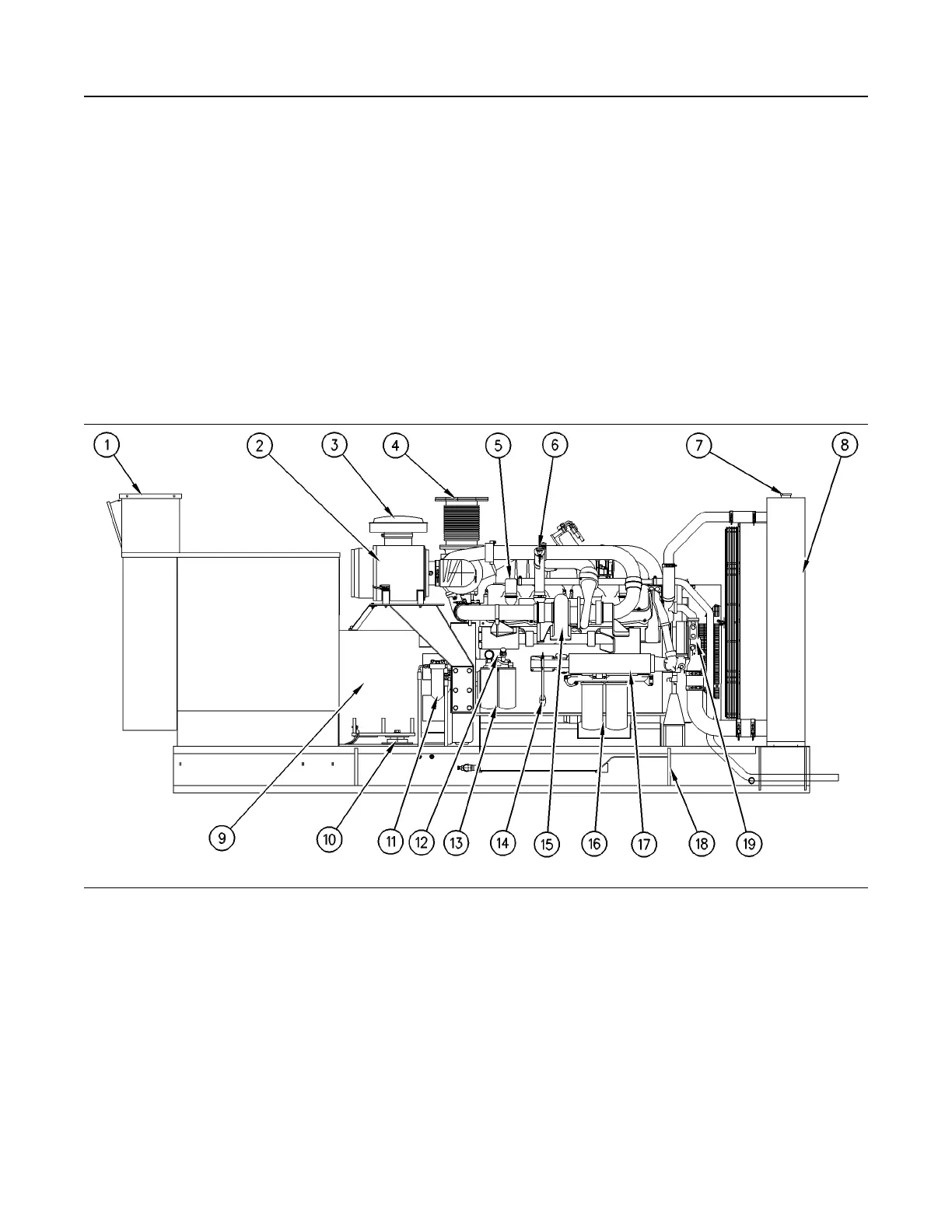

The model view that follows shows a 3412C
generator set engine. Due to individual applications,
your engine may appear different from the illustration.
Illustration 21 g00303243
(1) Control panel
(2) Air cleaner
(3) Precleaner
(4) Exhaust piping
(5) Crankcase breather
(6) Oil filler cap
(7) Radiator cap
(8) Radiator
(9) Generator
(10) Generator mounts
(11) Primary fuel filter
(12) Fuel priming pump
(13) Fuel filters
(14) Oil level gauge
(15) Turbocharger
(16) Oil filters
(17) Oil cooler
(18) Lifting eye
(19) Water pump
18
SEBU7125-13
Product Information Section
Model Views
