For detailed information about the annunciator
module, see Systems Operation, Troubleshooting,
Testing and Adjusting, RENR7902, “3508B, 3512B,
3516 and 3516B Engines EMCP3”.
i06545979
Electronic Modular Control
Panel 4 (EMCP 4)
(EMCP 4.1/4.2 If equipped)
SMCS Code: 4490
Electronic Control Module (Generator
Set)

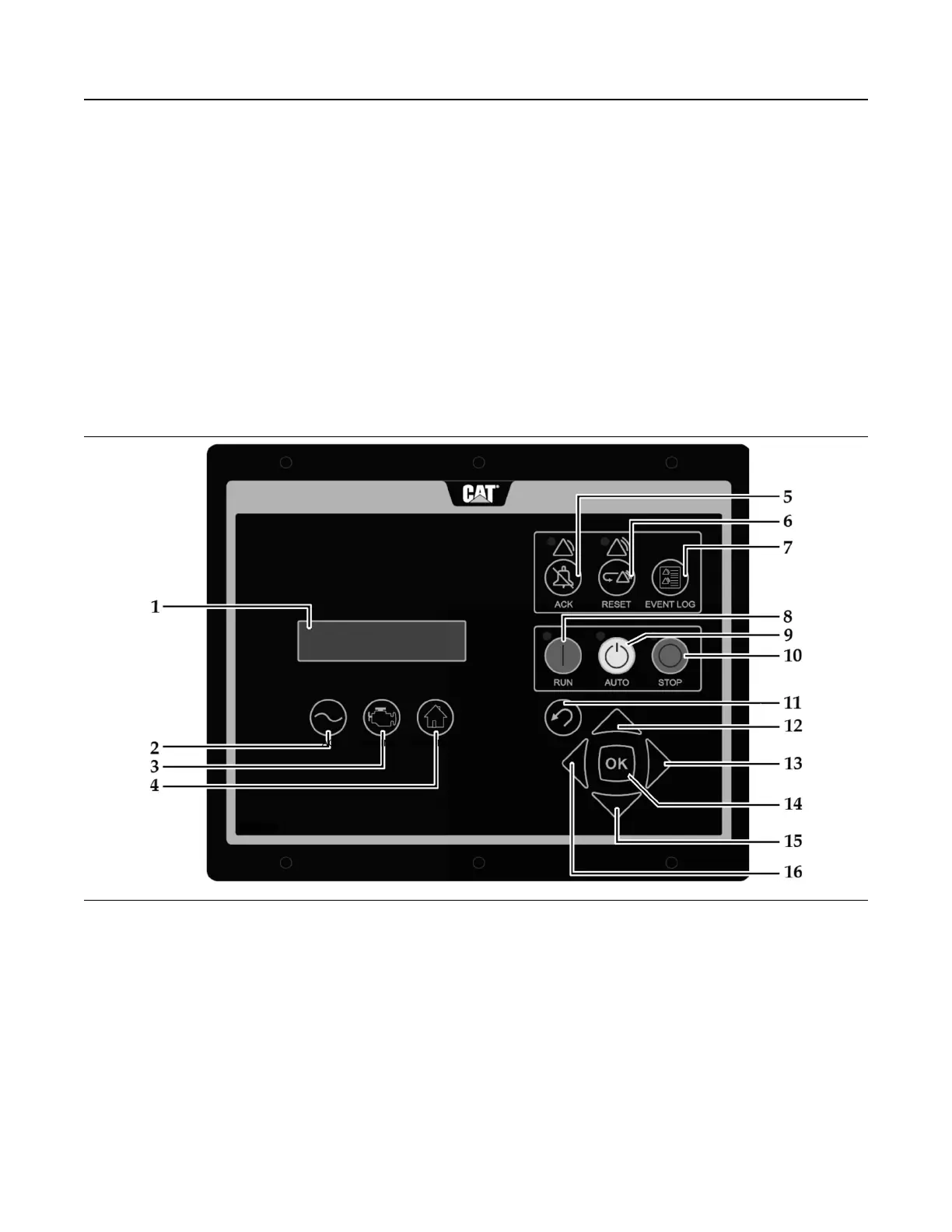

Illustration 73 g02082653
EMCP 4 Control System Panel
(1) Display screen
(2) AC overview key
(3) Engine overview key
(4) Main menu key
(5) Alarms acknowledge key
(6) Reset shut down Key
(7) Event log
(8) Run key
(9) Auto key
(10) Stop key
(11) Escape key
(12) Up key
(13) Right key
(14) OK key
(15) Down key
(16) Left key
Navigation Keys
AC Overview (2) – The “AC OVERVIEW” key will
navigate the display to the first screen of AC
information. The “AC OVERVIEW” information
contains various AC parameters that summarize the
electrical operation of the generator set.
Engine Overview (3) – The “ENGINE OVERVIEW”
key will navigate the display to the first screen of
engine information. The “ENGINE OVERVIEW”
information contains various engine parameters that
summarize the operation of the generator set.
