Technical CATERPILLAR – 1000 kVA Page
4
Description UTILITY POWER MODULE
Revision 1.0 1 May 2006
1. OVERVIEW
This specification describes the Caterpillar
®
Utility Power Module. This module is rated for
400 V at 50 Hz producing 1000 kVA (800 EkW) or 480 V at 60 Hz producing 910 ekW.
Included are: the Caterpillar C32 engine, the Caterpillar
®
SR4B 693 frame generator, the
Utility paralleling switchgear, a industry standard 20 foot (6 m) high-cube sound attenuated
CSC certified container and a cooling system for 50°C ambient. The complete solution is fully
tested at 60 and 50 Hz and delivered ready to operate. Its modes of operation are field
configurable and include single or multiple island mode (up to 18 units) and single unit utility
paralleling mode.
2. CATERPILLAR
®
C32 4-STROKE-DIESEL ENGINE
2.1. Specifications
V-12, 4-stroke-cycle Diesel
Bore – mm (in)…………….……………..……...145 (5.7)
Stroke – mm (in)……………………….….…….162 (6.4)
Displacement – L (cu in)……….……..……..32.1 (1958)
Aspiration……….Turbocharged – Air to air Aftercooled
Fuel system: Electronic Ignition System
Governor type: Electronic ADEM A4

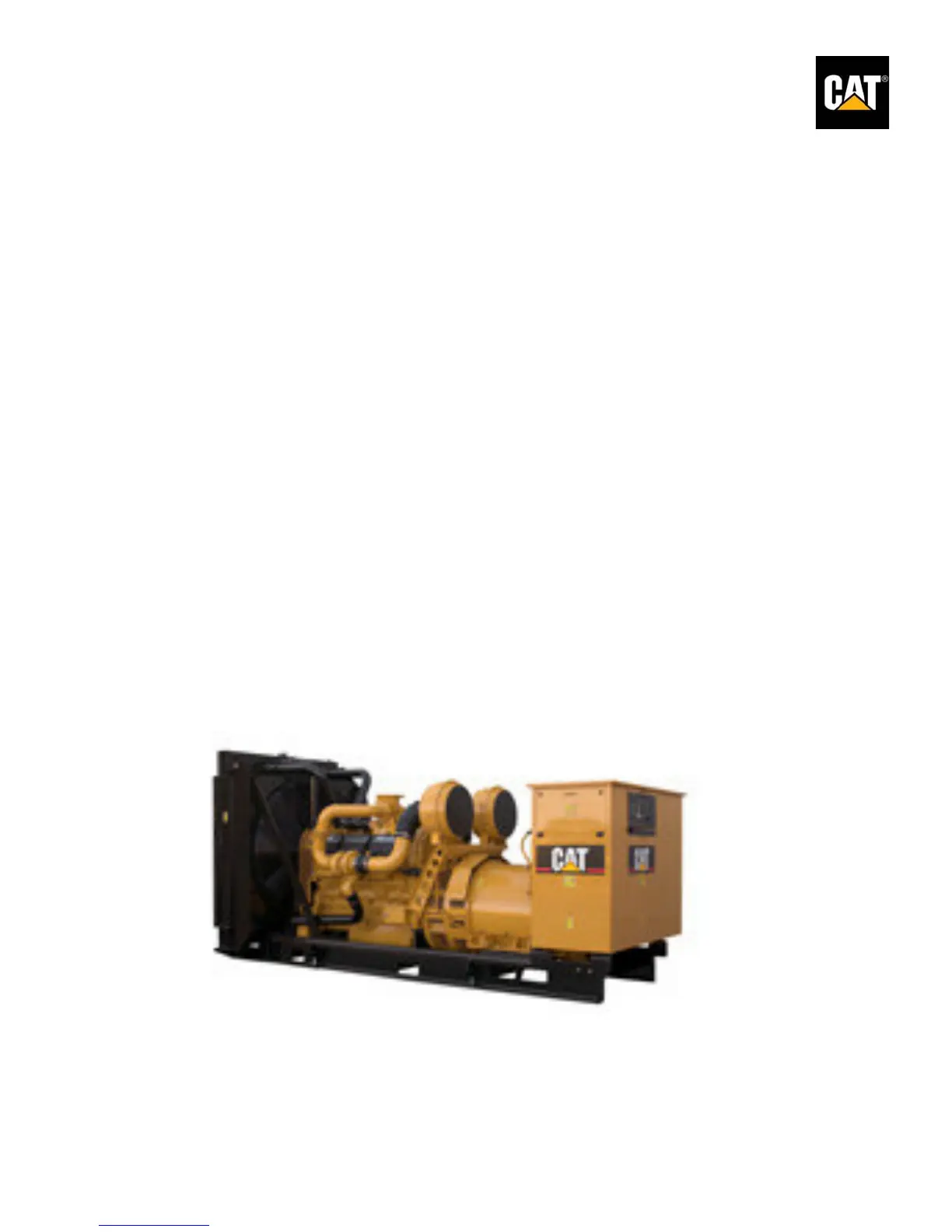

Fig. 2.1. C32 genset
