Technical CATERPILLAR – 1000 kVA Page
43
Description UTILITY POWER MODULE
Revision 1.0 1 May 2006

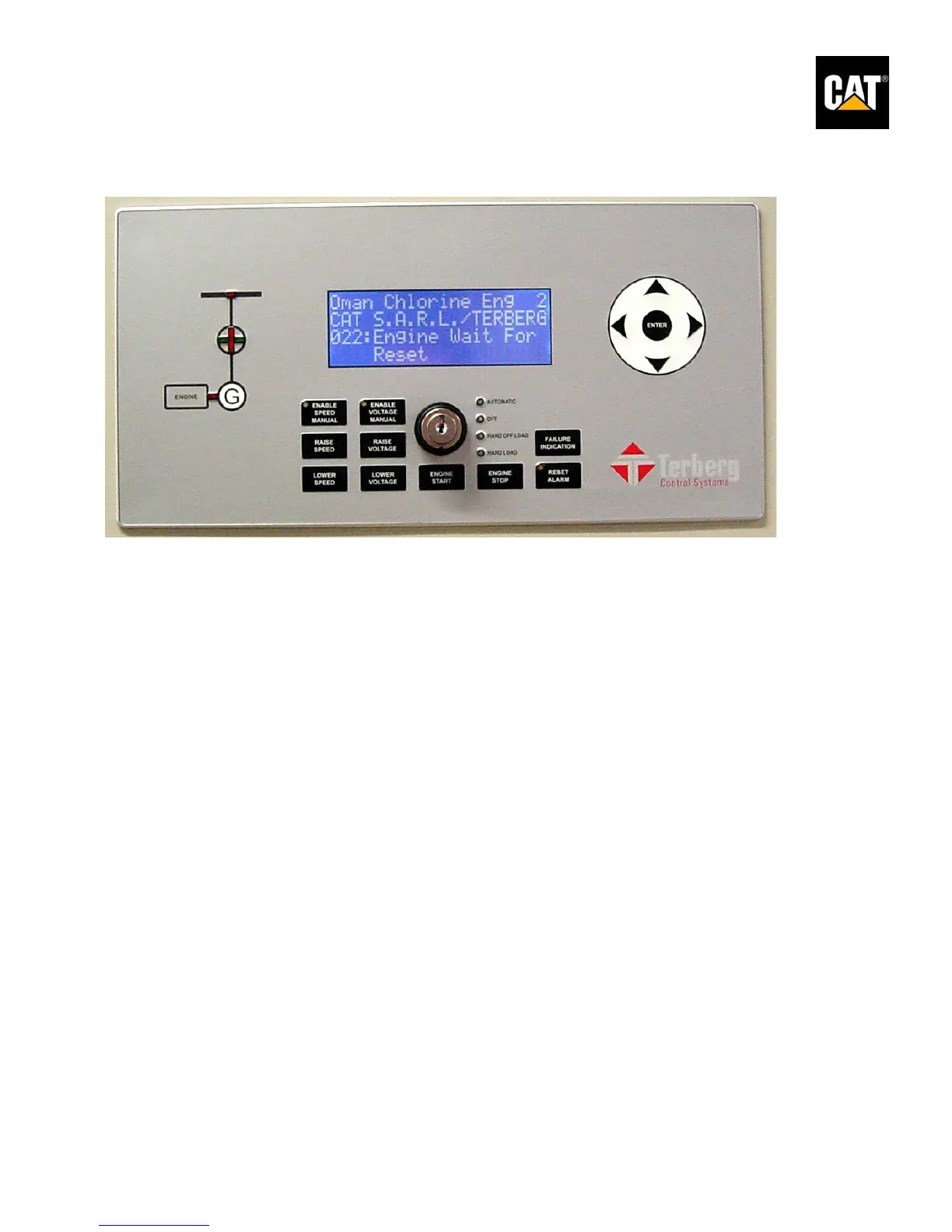

6.3. Monitoring
Single line shows the Generator with its respective circuit breaker in a one-line representation
of the system. The graphics shall utilize black and white indicators and bar graphs while
actively displaying the following information:
6.4. Protection
6.4.1. Power assembly
Power Module switchgear lineup is 480V rated for indoor use with one C32 generator set.
6.4.2. Generator circuit breaker
IEC rated 1600A, 55KAIC, fixed mounted, three poles, motor operated, molded case circuit
breaker.
