KNOW YOUR LIFT TRUCK
◆◆

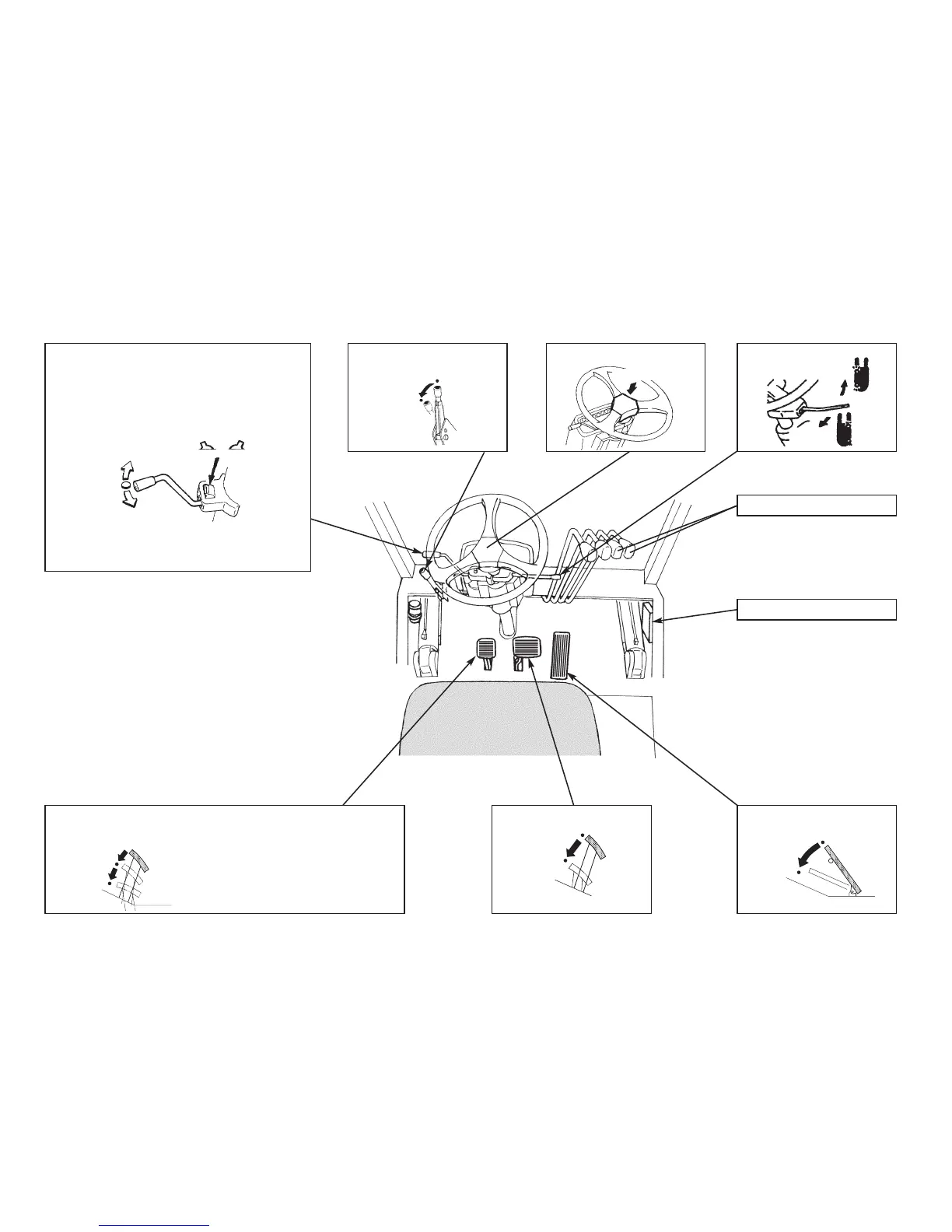

Operator’s Compartment
Parking brake lever
Release
Apply
101363
Direction lever
This truck is equipped with a neutral switch. Be sure
to put the transmission in NEUTRAL when starting
the engine.
101619A
Inching pedal
By varying the position of this pedal,
the operator can move the truck slowly
for inching while maintaining engine
speed. Full application of the pedal
puts the transmission in neutral and
applies the service brakes.
100037
Accelerator pedal
100039
Horn switch
102592
103259
Forward (F)
Reverse (R)
Released
Clutch
disengaged
Brake
applied
Neutral (N)
Idling
Full throttle
Push to sound horn
Turn signal switch
(optional)
100311
Left turn
Right turn
Brake pedal
100038
Release
Apply
•
•
•
ECU
Attachment control levers
Unlocked
(left)
Locked
(right)
• The knob locks the direction lever in the
NEUTRAL position.
