To remove the fuse or insert a replacement
fuse, use the puller found in the fuse panel lid.
Lamp type Gasoline Diesel
models (12V) models (24V)
Meter panel lamp 3W (14V) 3W (28V)
Tail/Stop lamp 8W/23W 10W/25W
Headlamp 45W 60W
Turn signal lamp 27W 25W
Back-up lamp 10W 12W
Working lamp (opt) 45W 60W
Lights are suspected
to have burned out.
One light of the circuit fails to light.
All lights of the circuit fail to light.
Check to see if fuse has been blown out.
Check the fuses one by one by
operating the light switch and seeing if
each light comes on.
Check for burned-out or “blown-out”
fuses first.
100846
– Always replace fuses with fuses of the
correct amperage.
– If fuse burns out immediately and you
cannot locate the cause, have your Cat
lift truck dealer make a circuit check.
– Use a replacement light bulb of the
same wattage.
Code
Gasoline models Diesel models
Capa
Circuit
Capa
Circuit
city city
10A Direction lever 10A Direction lever
15A Instrument panel 10A Instrument panel
(for monitor and (for monitor and
gauge), backup, gauge), turn
stop and turn signal lights (opt)
signal (opt) lights,
ECU (for T/M
controller,
frequency
transducer)
15A Spare power 10A Spare power
source source
15A Instrument panel 15A Instrument panel
(for panel light), (for panel light),
tail and working head, tail and
(opt) lights working (opt)
lights
15A Head lights 10A Horn
10A ECM for engine 10A Spare fuse
10A Horn 10A Stop lights,
ECU (for T/M
controller)
15A Fuel pump 10A Backup lights
10A Starter 15A Spare fuse

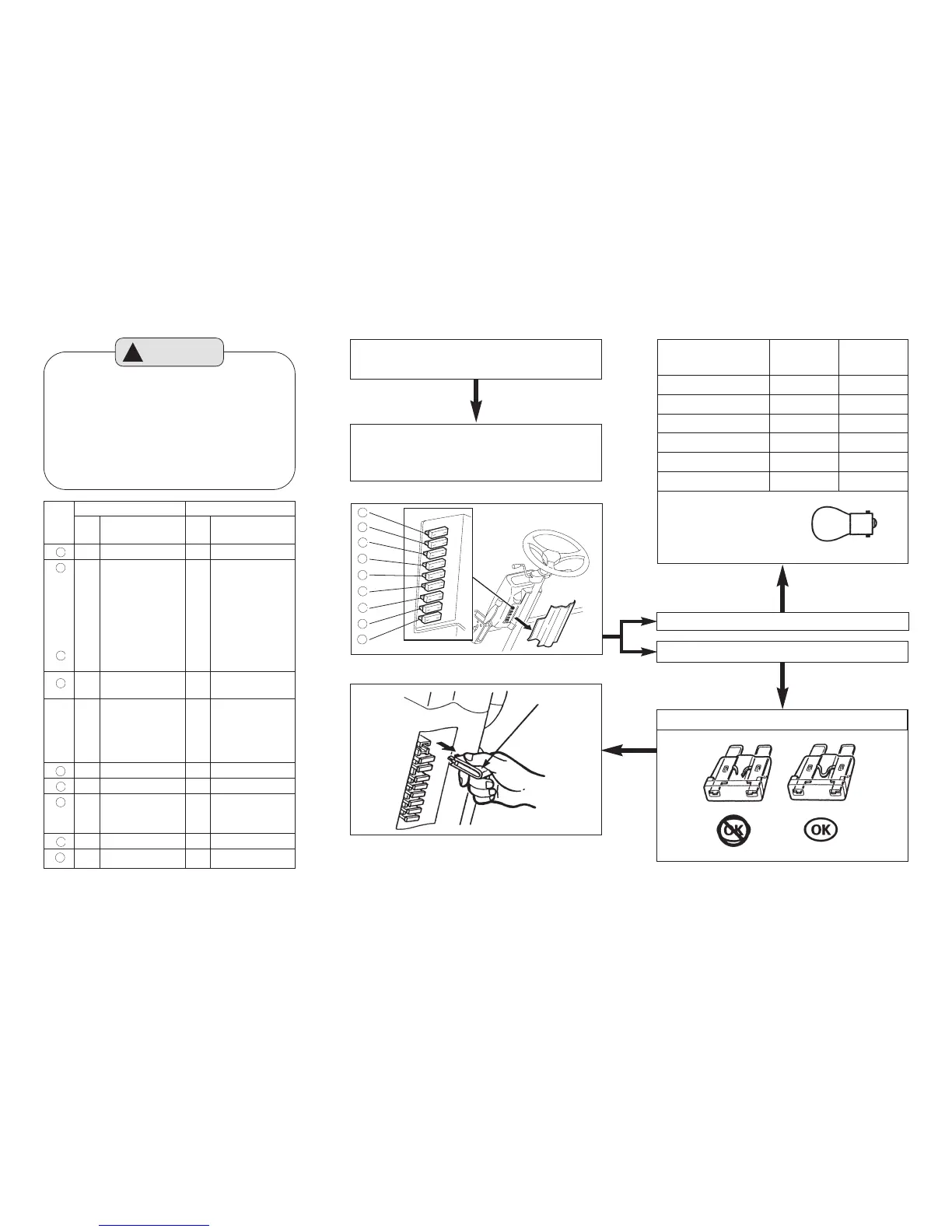

• Lights Won’t Come On
Puller
102535A
100845
101442
A
B
C
D
E
F
G
H
J
A
B
C
D
E
F
G
H
J
CAUTION
!
To Next Page
