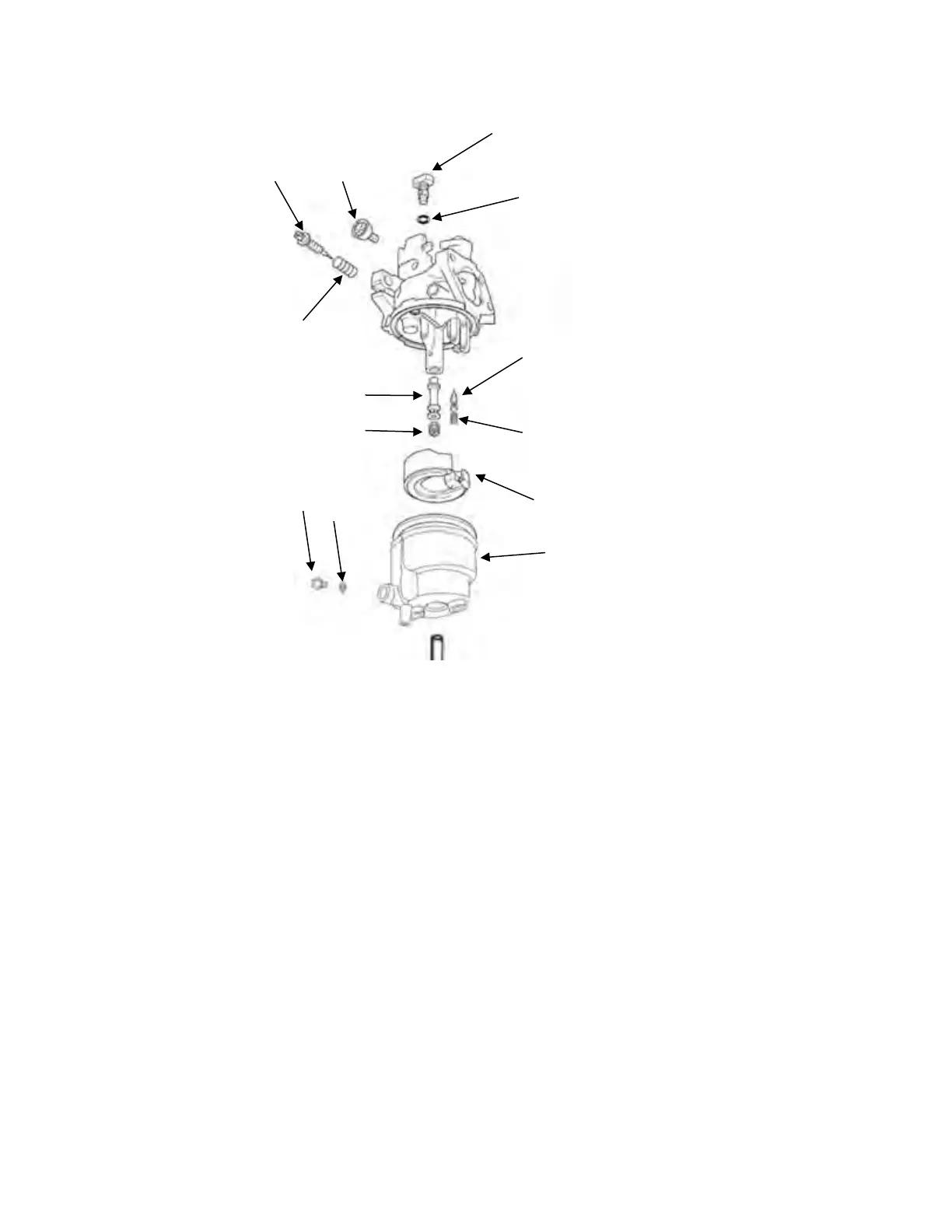

1. Pilot jet
2. Seal
3. Float valve
4. Float spring
5. Float
6. Float chamber
7. Gasket
8. Drain bolt
9. Main jet
10. Nozzle
11. Spring
12. Pilot screw
13. Idle speed screw
1
2
3
4
5
6
7
8
10
9
11
12
13
