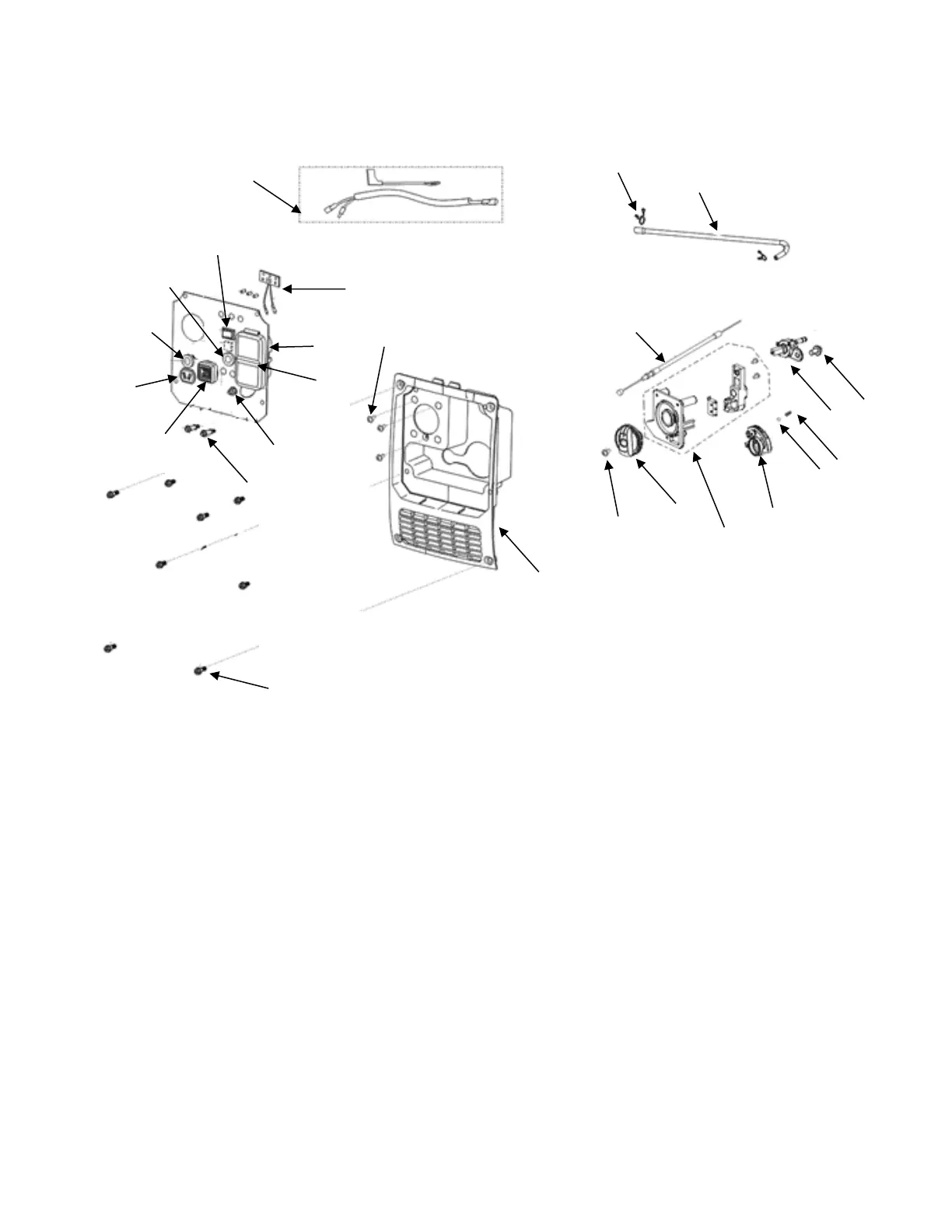

CAT INV2000 - DIAGRAMS (Cont.); Control Panel Diagram

26
Control Panel
1. Control panel harness
2. Hose clamp
3. Fuel line
4. Choke rod
5. Bolt
6. Generator switch seat
7. Spring
8. Steel ball
9. Cover plate
10. Generator switch
11. Generator switch knob
12. Screw
13. Control panel housing
14. Bolt
15. Screw
16. Indicator assembly
17. Receptacle – 120 VAC GFCI double
18. Rain cover
19. Grounding terminal
20. Parallel socket
21. Receptacle – USB double
22. Receptacle – 12 VDC 8.3A
23. Circuit breaker
24. Circuit breaker
25. Engine smart control switch
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
20
21
22
24
23
25
10
19
