CAT INV2000 - Crankcase and Piston Diagram

27

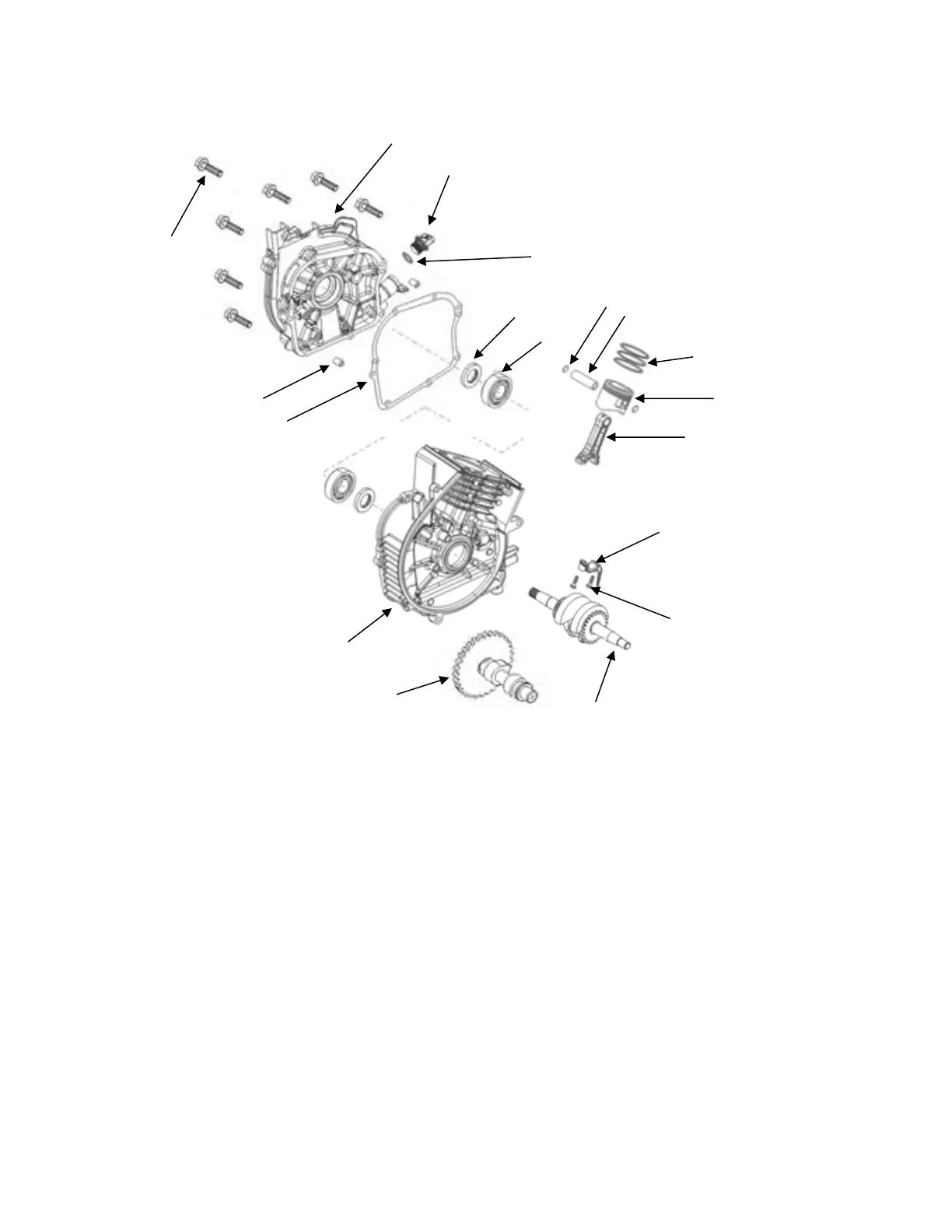

Crankcase and Piston
1. Bolt
2. Crankcase cover
3. Oil fill/drain plug
4. Washer
5. Oil seal
6. Bearing
7. Clip
8. Pin
9. Piston ring
10. Piston
11. Connecting rod
12. Connecting rod cap
13. Bolt
14. Crankshaft
15. Camshaft
16. Crankcase
17. Crankcase gasket
18. Pin
