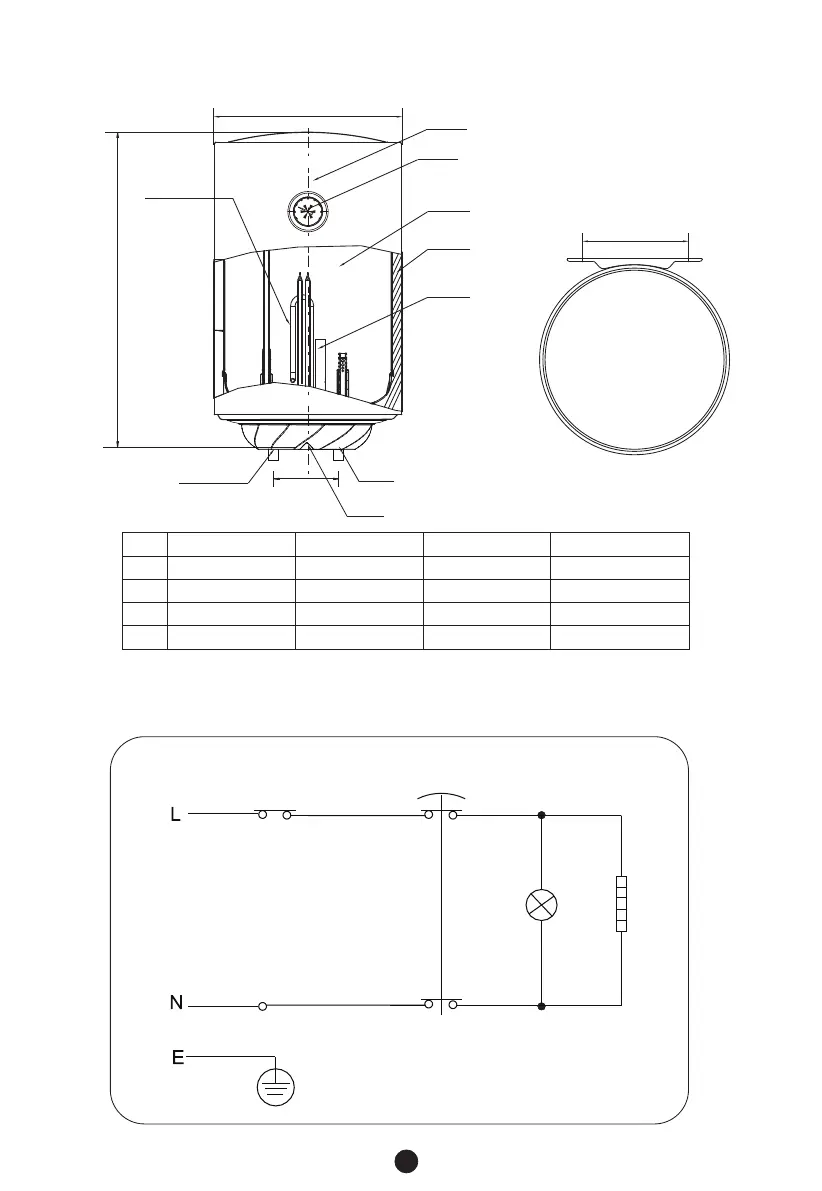

2.3 Brief introduction of product structure
2.4 Internal Wire Diagram
(Note:All dimensions are in mm)
CTR-50-M
385
748.5
100
196
CTR-80-M
450
802.5
100
196
CTR-100-M
450
967.5
100
196
A
B
C
D
CTR-30-M
340
599
100
196
C
D
B
A
Shell
Thermometer
Inner tank
Thermal insulation
Anode rod
Heating element
Hot water outlet
Cold water inlet
Heating indicator light
WIRING DIAGRAM
Heating Element
Heating Indicator Light
Thermal
Cut Out
Thermostat
Brown
Blue
Yellow/Green
1
2
