Installation of aesthetic panel

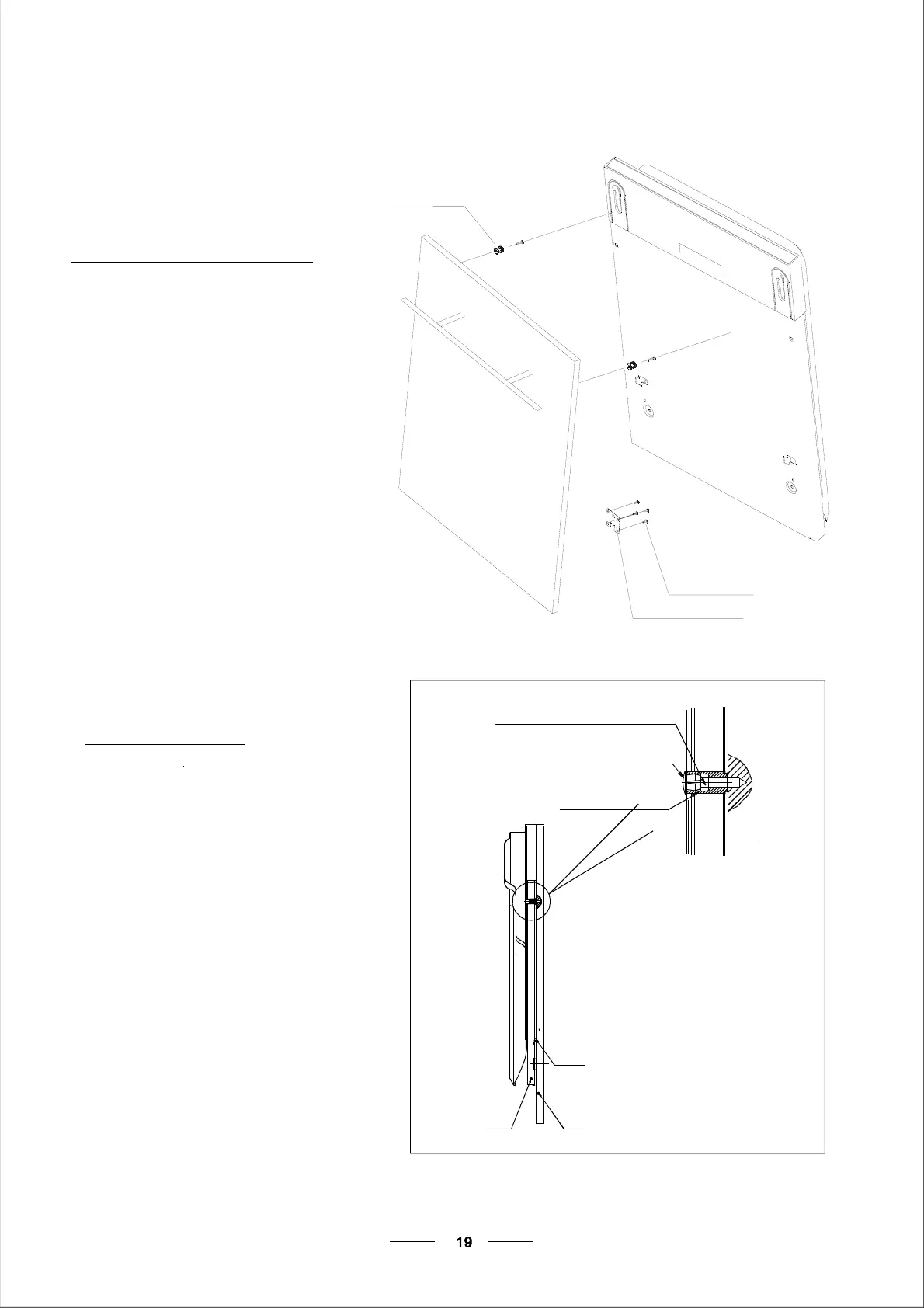

【】Figure 4a
2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the
outer door of dishwasher(see figure 4a).After positioning of the panel , fix the panel
onto the outer door by screws and bolts(See figure 4b) .
Installation of aesthetic
wooden panel
【】Figure4b
1
2
3
. Take away the cover
.Pinupthescrew
. Get back the cover
Hop hook
St4 countersunk
head screw
Lower hook
Furniture door
Hook for aesthetic door
Outerdoorof
dishwasher
Spacer for furniture door
Cover
4X18 screw
