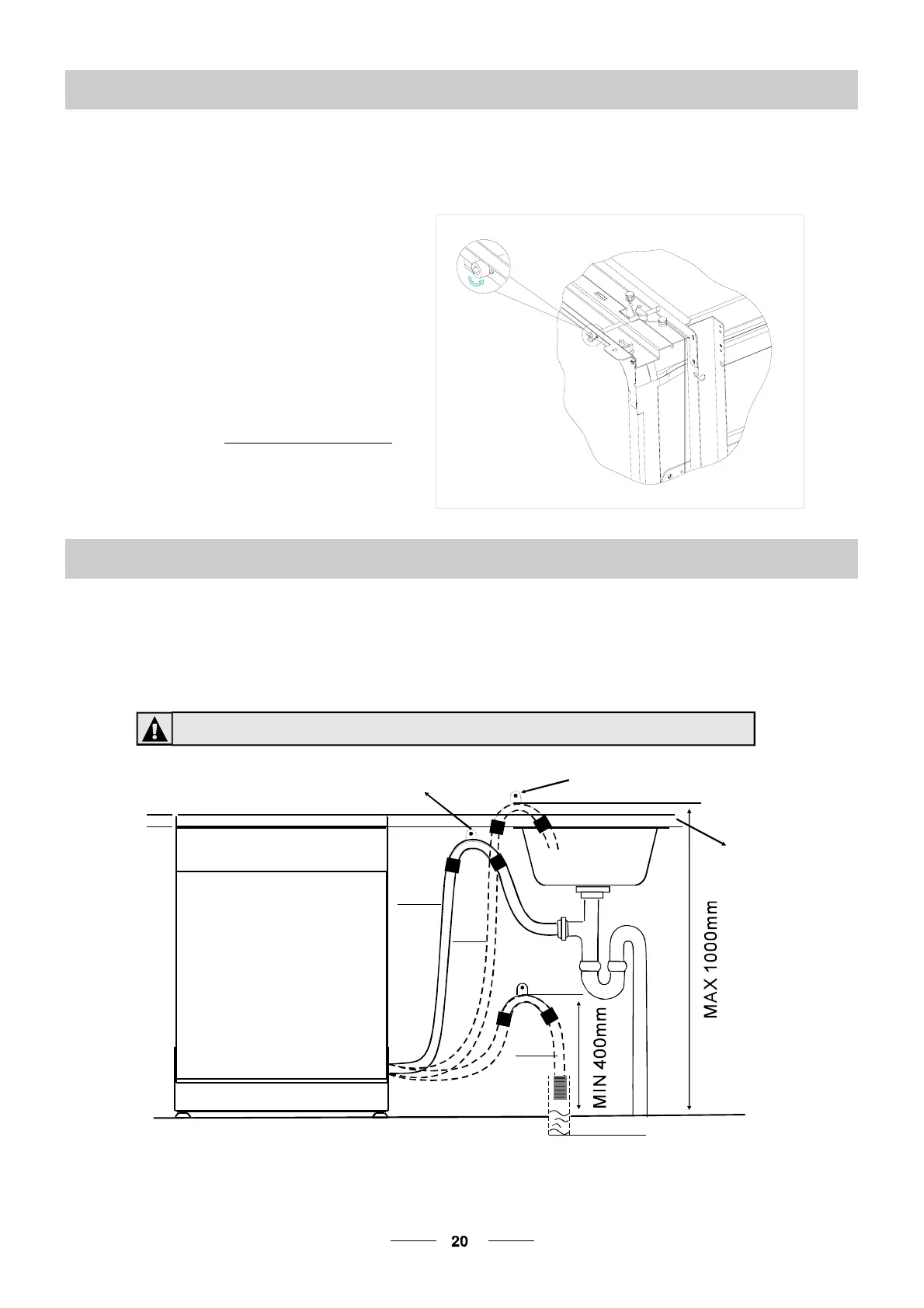

Tension adjustment
of the door spring
【】Figure5
Tension adjustment of the door spring
●
Connection of drain hoses
●
Th e do or spr ing s ar e set at the f actory t o th e pr ope r t ensi on f or th e oute r do or. If a esthe ti c
wooden panel are installed, you will have to adjust the door spring tension. Rotate
the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5).
D oo r sp ri ng ten sio n i s c o rre ct wh en
the door remains horizontal in the
fully opened position yet rises
toaclosewiththeslightliftofa
finger.
，
rel ax
PLEASE HANG UP THE DRAIN HOSE EITHER WAY OFA, B, C
φ
40mm
A
B
C
Counter
Front
Drain pipe
Dra in hose hook
Close the drain hose hook to the counter
Insert the dr ain h ose into a dra in pipe with a minim um diameter of 4cm, or let it run into the s ink, making sure to
avoid bendingor crimping it. Use the special plasticsupport that comes with the appliance. The top of the hose
must be at a heig ht b etween 4 0 an d 100cm . The fr ee e nd of the hose must n ot b e imm er sed in wat er to av oid the
back f low of i t.
