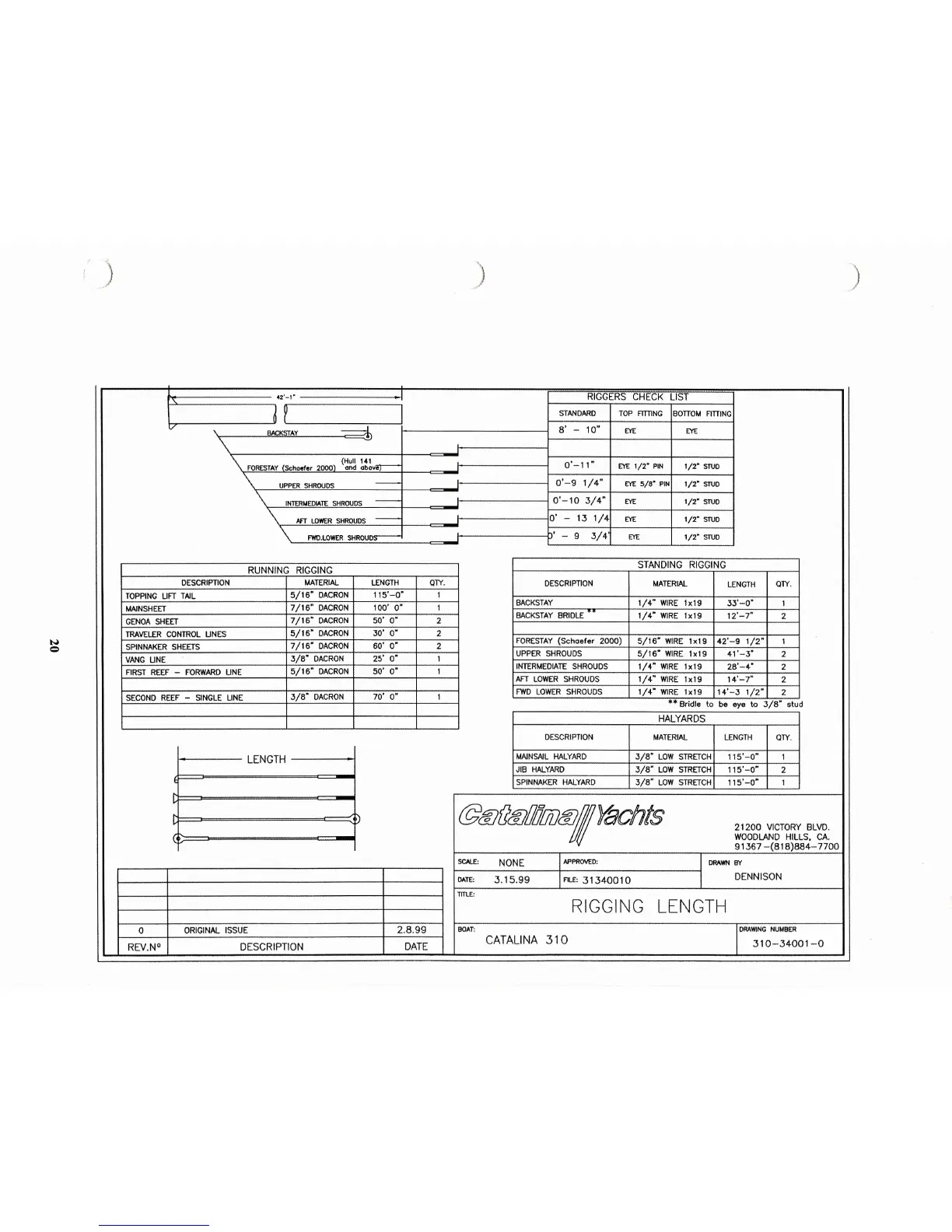

Catalina 310 - RIGGING LENGTH

)
)
N
=
42'-,"
RIGGERS CHECK LIST
~ ~
I
STANDARD
TOP FIniNG
BOTTOM FIniNG
V
--,l
8' - 10"
BACKSTAY
m
m
'\
~
\ (Hull ,.,
fORESTAY (Scho.t8r 2000' end obover--
0'-11"
m 1/2" PIN
1/2" sruo
\ UPPER SHROUDS -
0'-9 1/4"
m 5/8" PIN
1/2" sruo
\
INTERMEDIATE SHROUDS
-
0'-10 3/4"
m
1/2" sruo
\
AfT LOWER SHROUDS -
O' - 13 1/4
m 1/2" sruo
\
FWO.LOWER SHROUDS--
- 9
3/4'
m 1/2" sruo
RUNNING RIGGING
STANDING RIGGING
DESCRIPTION MATERIAL LENGTH QTY.
DESCRIPTION
MATERIAL
LENGTH
QTY.
TOPPING LIfT TAIL
5/16" DACRON
115'-0"
1
MAiNSHEET
7/16" DACRON
100' 0"
1
BACKSTAY
1/4-" WIRE lx19 33'-0'
1
GENOA SHEET
7/16' DACRON
50' O·
2
BACKSTAY BRIDLE 1/4-' WIRE lx19
12'-7"
2
TRAVELER CONTROL LINES
5/16' DACRON
30' 0"
2
SPINNAKER SHEETS
7/16" DACRON
60' O·
2
FORESTAY (Schaefer 2000)
5/16" WIRE lx19 42' 9 1/2' 1
VANG LINE
3/8' DACRON
25' 0"
1
UPPER SHROUDS
5/16" WIRE lx19
41'-3"
2
FIRST REEF - FORWARD LINE
5/16" DACRON
50' 0"
1
INTERMEDIATE SHROUDS
1/ ••.• WIRE lx19
28·- ••.•
2
AfT LOWER SHROUDS 1/4-" WIRE lx19 14'-7"
2
SECOND REEF - SINGLE LINE
3/8' DACRON
70' 0"
1
FWD LOWER SHROUDS
1/4' WIRE lx19
14-'-3 1/2"
2
** Bridle to be eye to 3/8' stud
HALYARDS
DESCRIPTION
MATERIAL LENGTH QTY.
LENGTH
MAINSAIL HALYARD
3/8' LOW STRETCH
115'-0"
1
JIB HALYARD 3/8' LOW STRETCH 115'-0"
2
SPINNAKER HALYARD
3/8" LOW STRETCH
115'-0·
1
@@(@/liJ!iD@IYachts
21200 VICTORY BLVD.
WOODLAND HILLS. CA.
91367 -(818)884 7700
SCAlE:
NONE
APPROVED:
DRAWN BY
DATE·:
3.15.99 FILE: 31340010
DENNISON
TITlE:
RIGGING
LENGTH
0
ORIGINAL ISSUE
2.8.99
BOAT: DRAWING NUMBER
REV.N°
DESCRIPTION
DATE
CATALINA 310
310-34001-0
