CATCH Power SOLAR RELAY – Installation Manual - Page 8

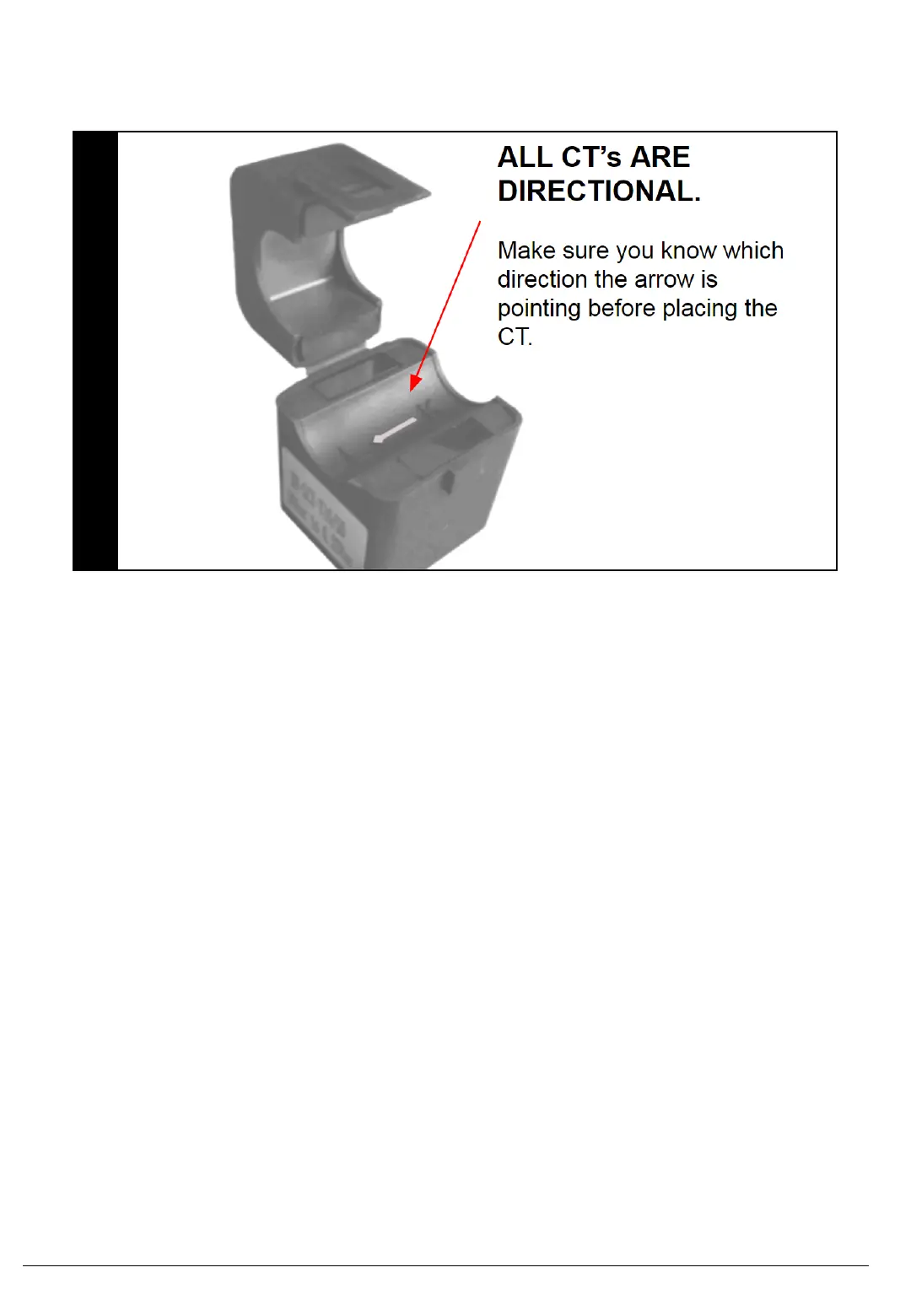

• The arrows next to the CT’s in the wiring diagram represent the
arrows on the inside of the CT’s.
• Matching the CT’s to the correct phase is critically important
special care must be taken to ensure this happens.
• NEVER disconnect CT’s from the Solar Relay while they are
wrapped around a current carrying conductor.
• Multiple wires can be put through the CT, as long as all currents are
in the same direction and in phase.
IMPORTANT Current Transformer Rules
IMPORTANT
INSTALLATION – Current Transformer
