INSTALLATION - Cable Termination
Ideal cable size 1.5mm
2
Maximum cable size is
2.5mm2
There are 3 connections that need to be made on
the bottom of the CATCH Relay, each connection
can be made from one of two connection points.
For example: The Active IN connection point is
made from one of the left two connectors. You
can choose either one, as they are bussed
together inside the device.
Example:

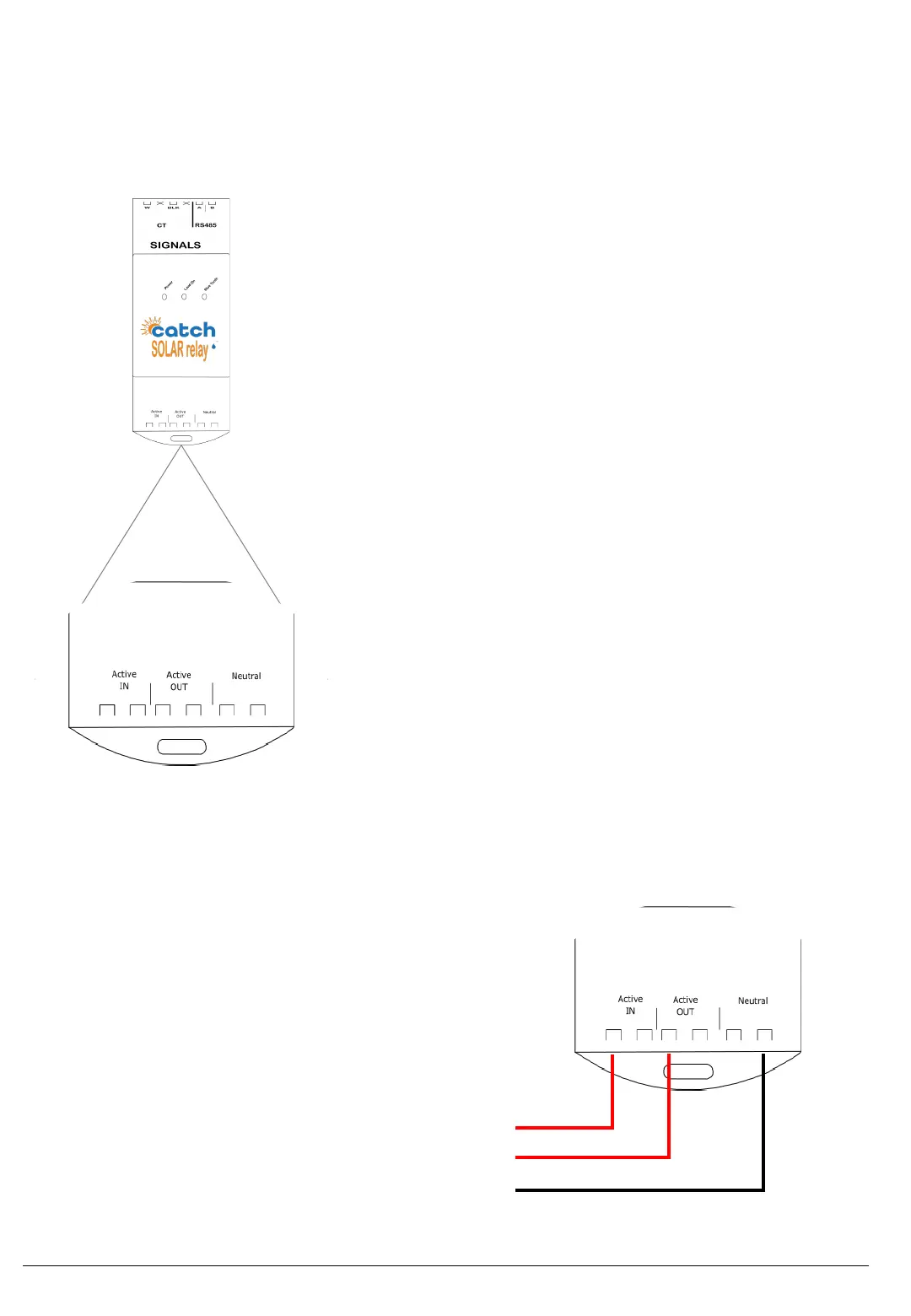

Wiring for a basic installation. As you can see it
does not matter which of the two terminals you
choose for each connection.
Active In
Active Out
Neutral
