! SHELVES
This wine cellar is equipped with a pull-out roller assembly. You can move the wooden shelves out
and in smoothly.
For different bottle formats, a shelf may be removed in order to stack these types of bottles.
Pull-out Roller Shelves
To prevent damaging the door gasket, make sure to have the door all the way opened when pulling
shelves out of the rail compartment.
For easy access to the bottles, you must pull the shelves approximately 1/3 out of the rail
compartment.

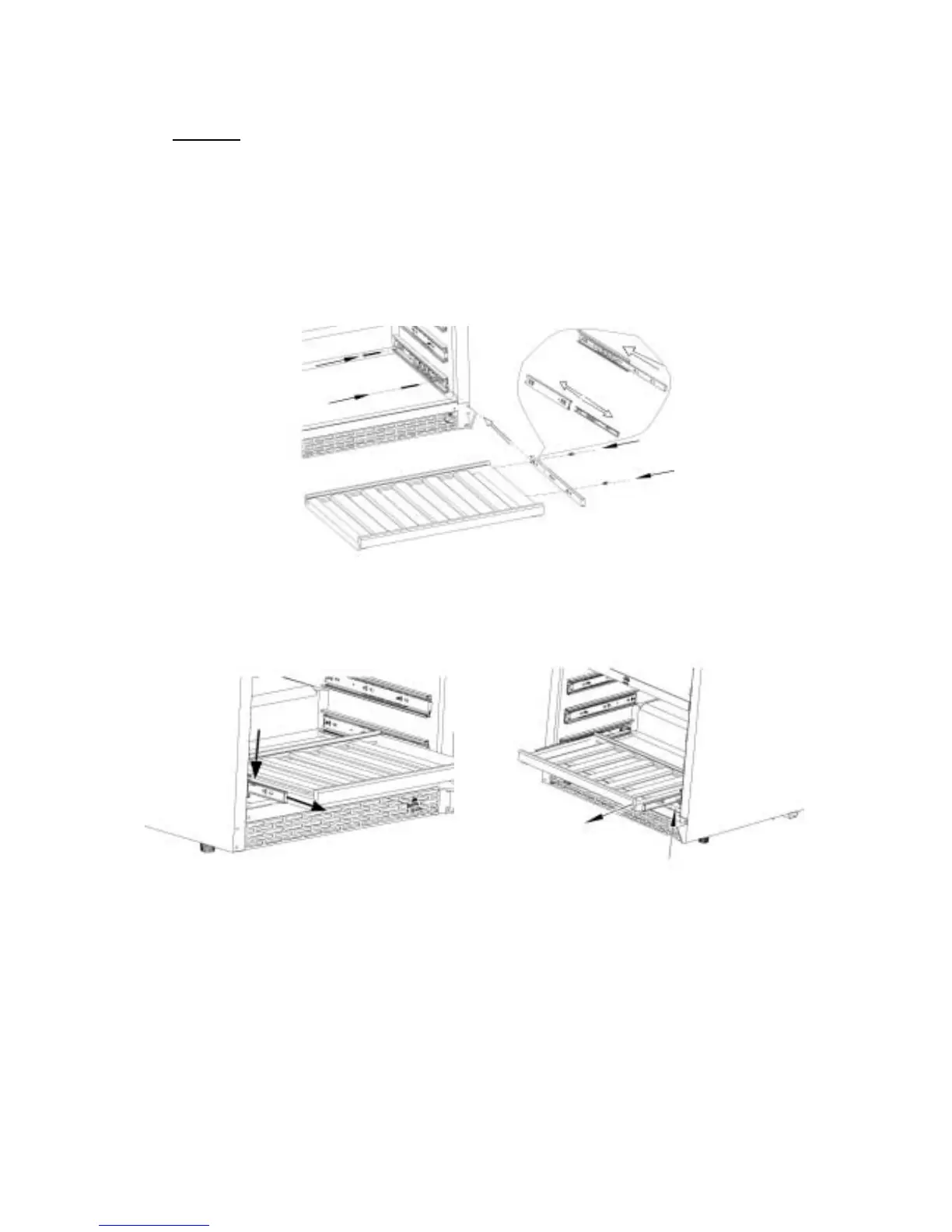

To remove the shelves out of the rail pull each shelf approximately 1/3 out. Use a long flat
screwdriver to press down the left plastic notch as shown in Figure AA and at the same time lift the
right plastic notch as shown in Figure BB. Then proceed to pull out the shelf slowly. Contact our
service department if assistance is needed.
Figure AA Figure BB
12
