CAWA TE-2115 - Rear Panel Connections

15 pages

To Next Page

To Previous Page

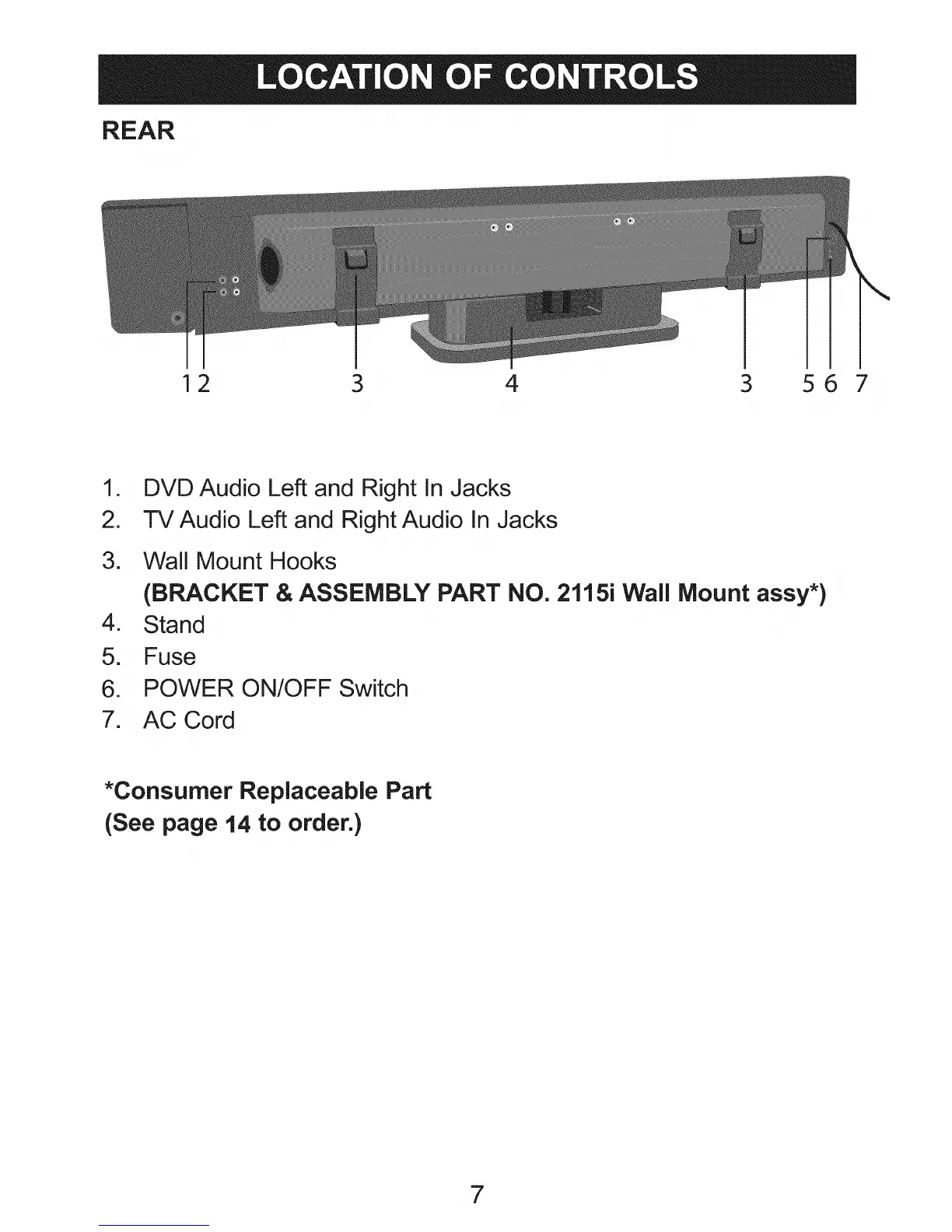

REAR

12 3 4 3 56 7

1. DVD Audio Left and Right In Jacks

2. TV Audio Left and Right Audio In Jacks

3. Wall Mount Hooks

(BRACKET & ASSEMBLY PART NO. 2115i Wall Mount assy*)

4. Stand

5. Fuse

6. POWER ON/OFF Switch

7. AC Cord

*Consumer Replaceable Part

(See page 14 to order.)
