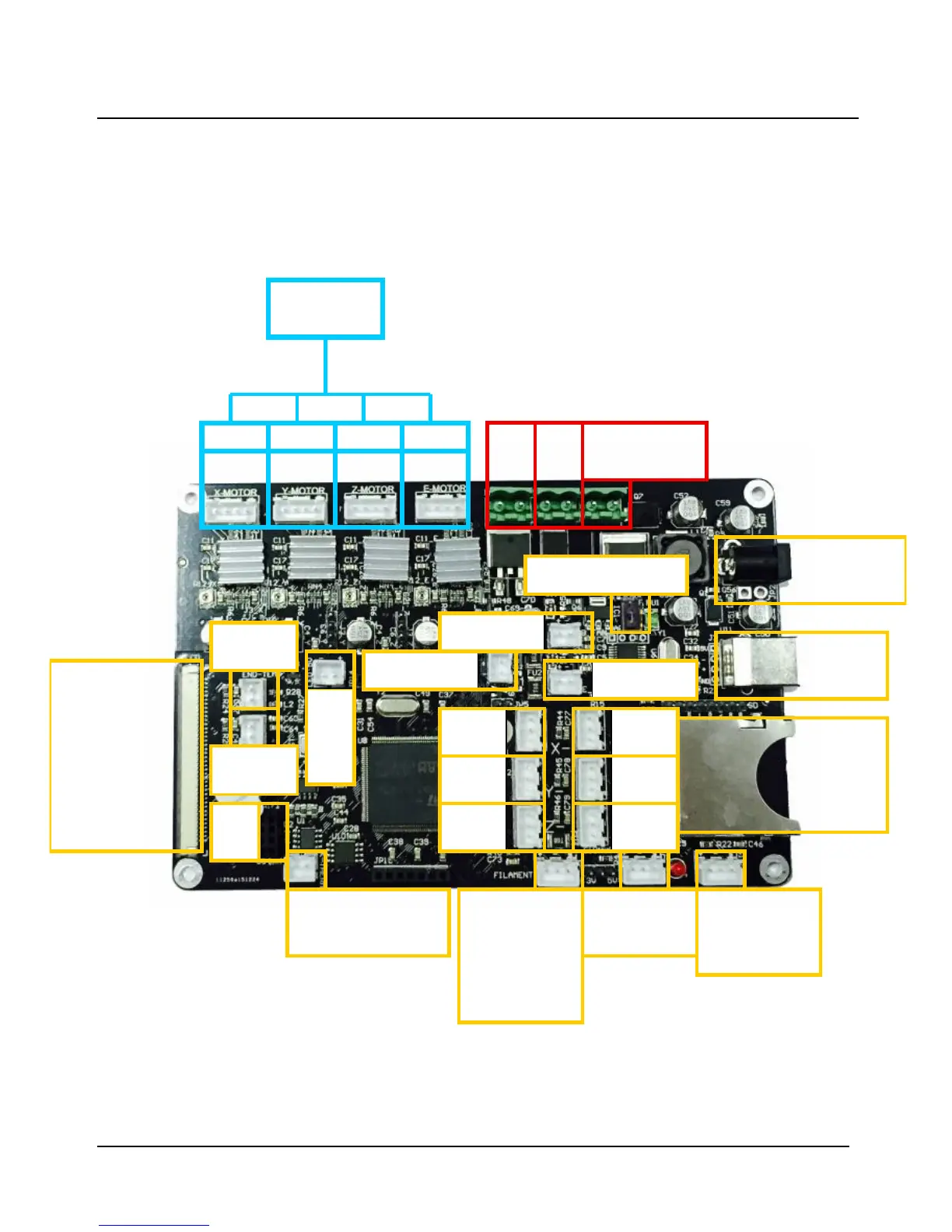

1.2 Interface Layout
Single-head Mainboard
X-min
Y-min
Z-min
Y-max
Z-max
X-max
E-Temp
expansion
interface
B-Temp
WIFI
USB
Power off
module
interface
Stepping Motor
E1 Axis Z Axis X Axis Y Axis
12-24V
supply
Hot
Bed
Hot
End
5V/12-24V Jumper
End fan
Board fan
5V
Light
bar
2.8 inch or
3.5 inch
Interface of
color touch
screen
Hot-End
Thermocouple
（optional）
Switch of
Automatic
leveling and
broken wires
test etc.
24V Light bar
Power adapter
SD Slot
USB
Power adapter
SD Slot
USB
Power adapter
