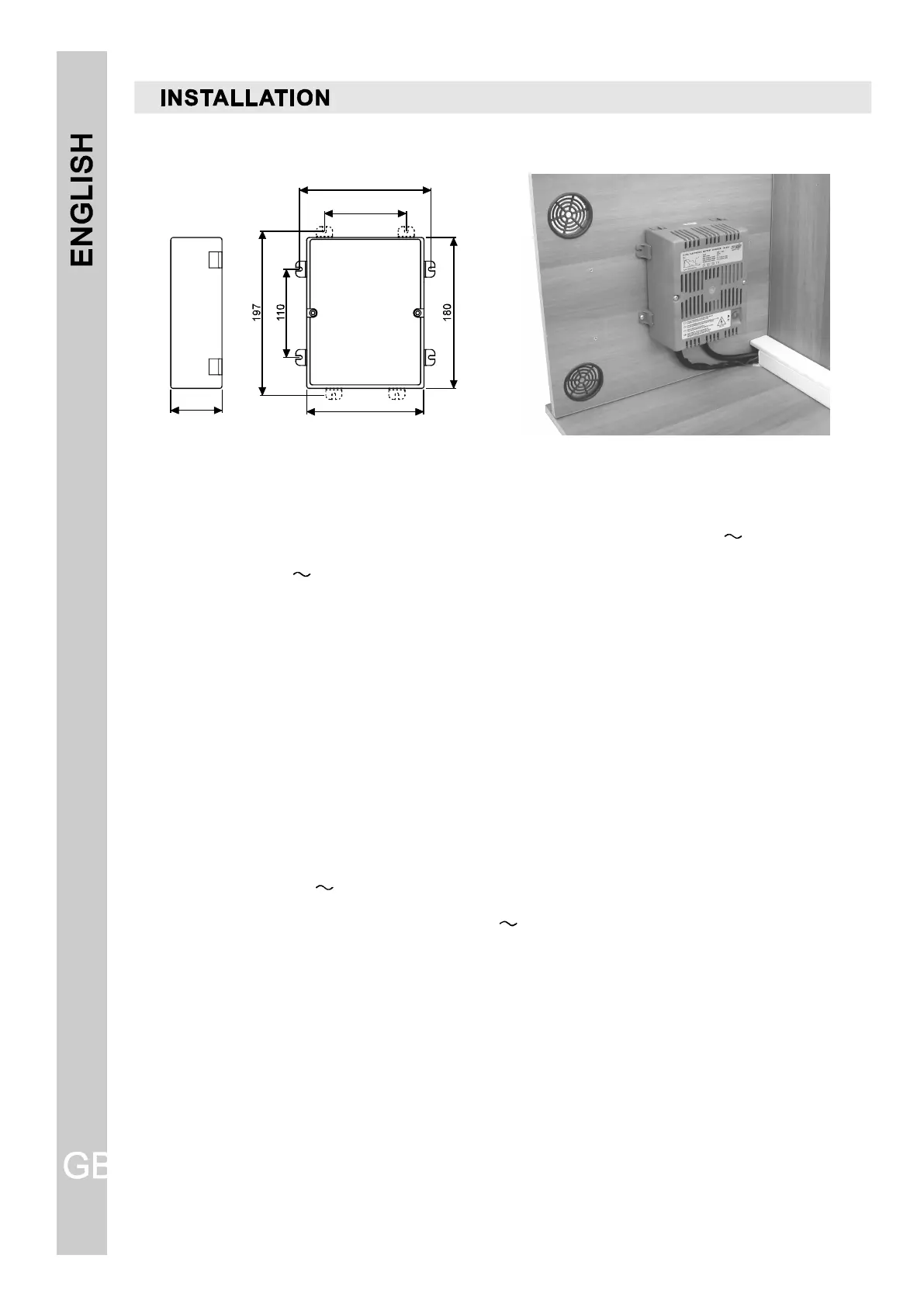

Fig.1 - DIMENSIONS (mm): Fig.2 - VERTICAL INSTALLATION
GB
9
140
85
110
157
IMPORTANT: - The installation of this device must be carried out by specialist technicians.
- Caution, do not connect the battery charger
when a generator set with non stabilised output voltage is employed
with power mains voltage exceeding the rated value (230V ±10%)
- Do not carry out any maintenance when the battery charger is connected to the
230V power supply net.
- In case of battery charger misuse, the guarantee becomes invalid and the
manufacturer declines all responsibility for damages to people and property.
- This appliance can be used by children aged 8 years or more and people with
reduced physical, sensory or mental capabilities or lack of experience or
knowledge, only provided they are being supervised or they have been instructed
concerning the use of the appliance in a safe way and that they understand the
hazards involved. Children shall not play with the appliance.
BATTERY CHARGER
CABLES
BATTERY
Warning:
- Install the battery charger in an appropriate housing, dry and ventilated; maximum efficiency can be
obtained when the battery charger is installed in a vertical position (see figure 2), keeping the front at a
minimum distance of 300 mm and the bottom and top at a minimum distance of 100 mm from the housing
sides.
- Do not cover air intakes.
- To guarantee proper air exchange, installation of two air intakes (one placed on the top and one on the
bottom, see figure 2) ensure a working temperature inside the housing not exceeding 50 °C.
- Make sure that the 230V safety switch can be easily reached.
- The connection to power supply mains shall be made in accordance with national installation rules.
- Before disconnecting the battery charger from 230V power supply, turn the safety switch off.
- Installation requires the fixing of 4 pins that can be easily placed on the 4 sides.
- The battery charger can be installed together with CBE 12V and 230V distribution panels, using the
appropriate modular joints.
- Battery connection: use N07 V-K cables having adequate cross section (minimum cross section 4mm²).
- Fix the cables with the relevant cable fastenings devices supplied.
- Protect cables from any possible damage.
- Lead-acid batteries shall be positioned in a well ventilated place.
- Use only 12V rechargeable lead batteries (capacity >40Ah).
- Do not use with “not rechargeable" batteries.
- Exhausted batteries shall be disposed in accordance with existing environmental protection
regulations.
(6 cells)
