CCi CNA1000 - Description of Assembly

7
Physical Interfaces
8
Physical Interfaces

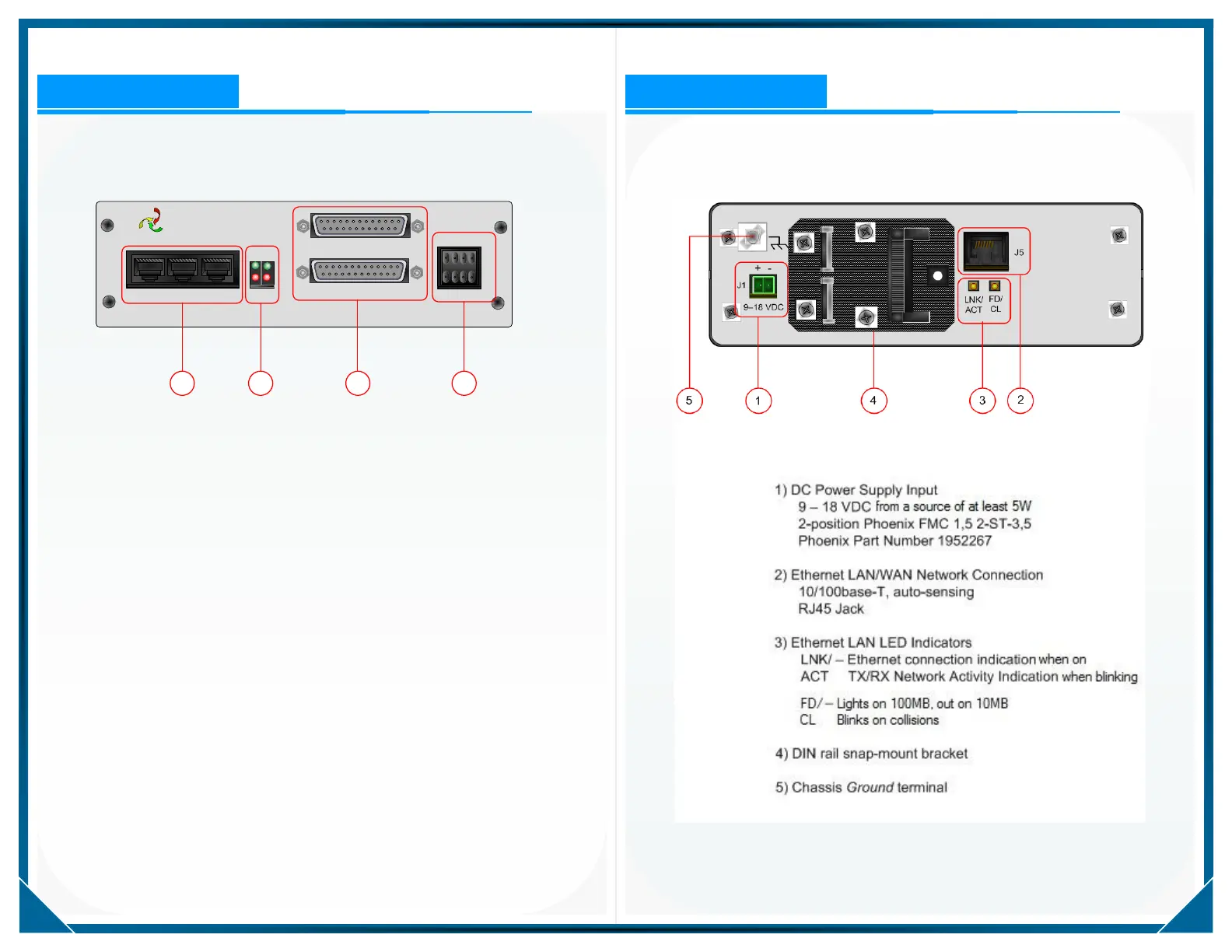

Figure-2a: CNA1000 Physical Interfaces
Front Panel
Front Panel
Rear Panel
Figure-2b: CNA1000 Physical Interfaces
Rear Panel
5 6 7 8
1 2 3 4
J3
J4-B
J4-A
D1 D2
D3 D4
CNA1000
J2-A J2-B
J2-C
Convergent Communications Inc.
CCI
+
+
+
+
1) RS232 Asynchronous Communications
J2-A, J2-B, and J2-C
RJ45 Jacks
2) RS232 Synchronous Communications
J4-A and J4-B
DB25 Female
3) Optically Isolated INPUTS
J3, pins 5 through 8
4-position Phoenix FMC 1,6/ 4-ST3,5
Phoenix Part Number 1952283
Optically Isolated OUTPUTS
J3, pins 1 through 4
4-position Phoenix FMC 1,6/ 4-ST3,5
Phoenix Part Number 1952283
4) LED Displays D1 through D4
Assignments are application dependent
1 4 2 3
