16
Installation
This appliance is fully compatible with
any 600mm deep kitchen units and
complies with stringent EEC regulations.

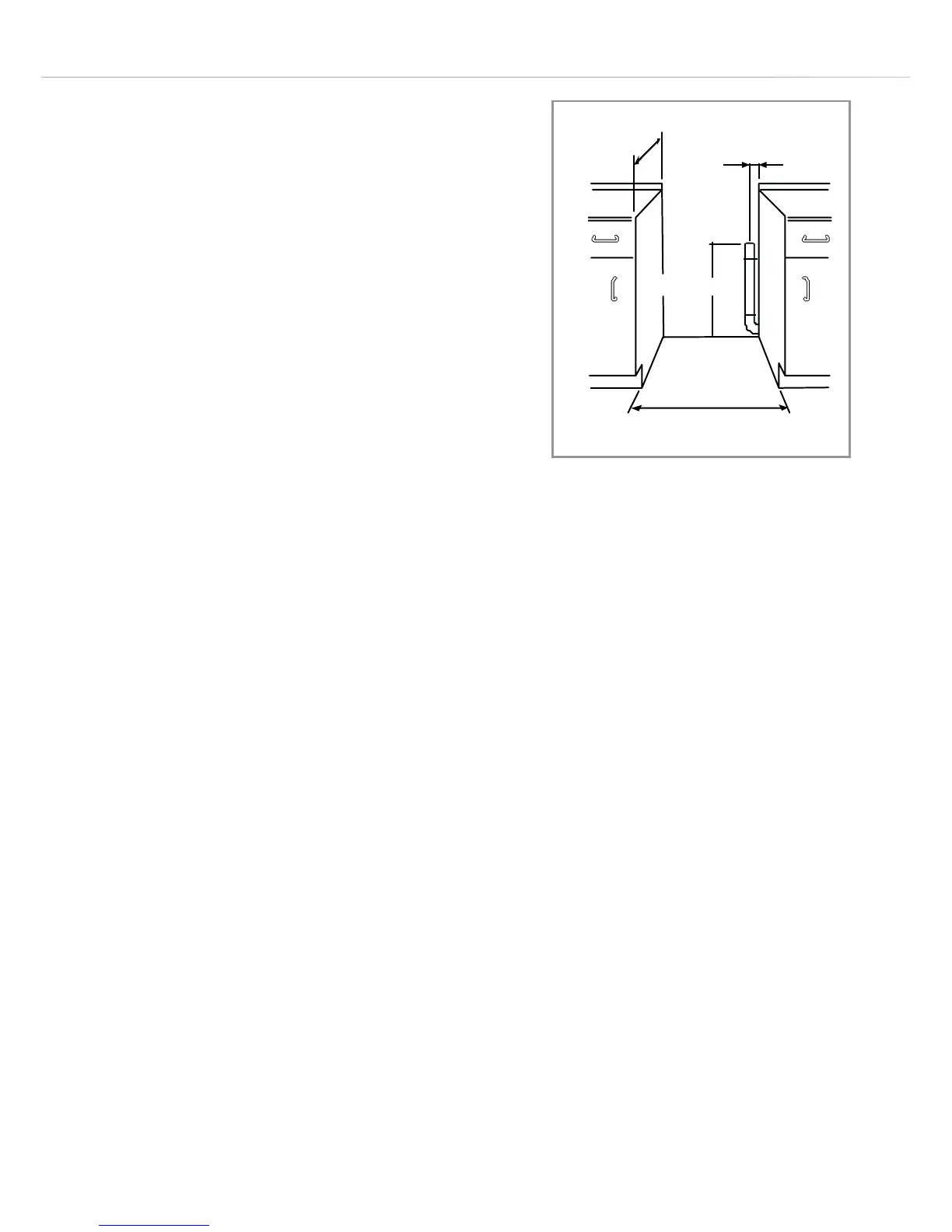

The illustration shows the minimum
space required by the dryer and the
position of the waste-pipe within this
space and behind the dryer. If a trap is
fitted it must not obstruct the air inlet at
the back of the dryer. The waste pipe
can be positioned on either side of the
dryer.
If the waste pipe is to be used by the
dryer and a washing machine then
its diameter must be large enough to
contain both hoses - 1.5” bore (38mm)
minimum.
The plinth in front of the dryer must be
cut out to accommodate the air vent
grill located at the bottom front of the
tumble dyer as shown in fig. 5.
fig. 4
600mm
600mm
615mm
50mm
