Reversing The Door
The door on the dryer can be positioned either with the left or right hand
hinging, as shown in fig.6.
Please note: power tools must not be used when reversing the door.
How to reverse the door
Open the door
Undo screw A, remove switch strike B and replace screw A.
Remove screws C and latch plate D.
Remove hinge cover screw E.
Close the door.
Pull hinge cover F forwards to remove it.
Remove two outer screws G.
Remove door.
Fit latch plate D with screws C.
Reverse the door and fit to the dryer in the closed position.
Refit screws G and hinge cover F.
Open the door.
Fit screw E to secure hinge cover.
Remove screw A at the top of door and refit switch strike B as shown.
7

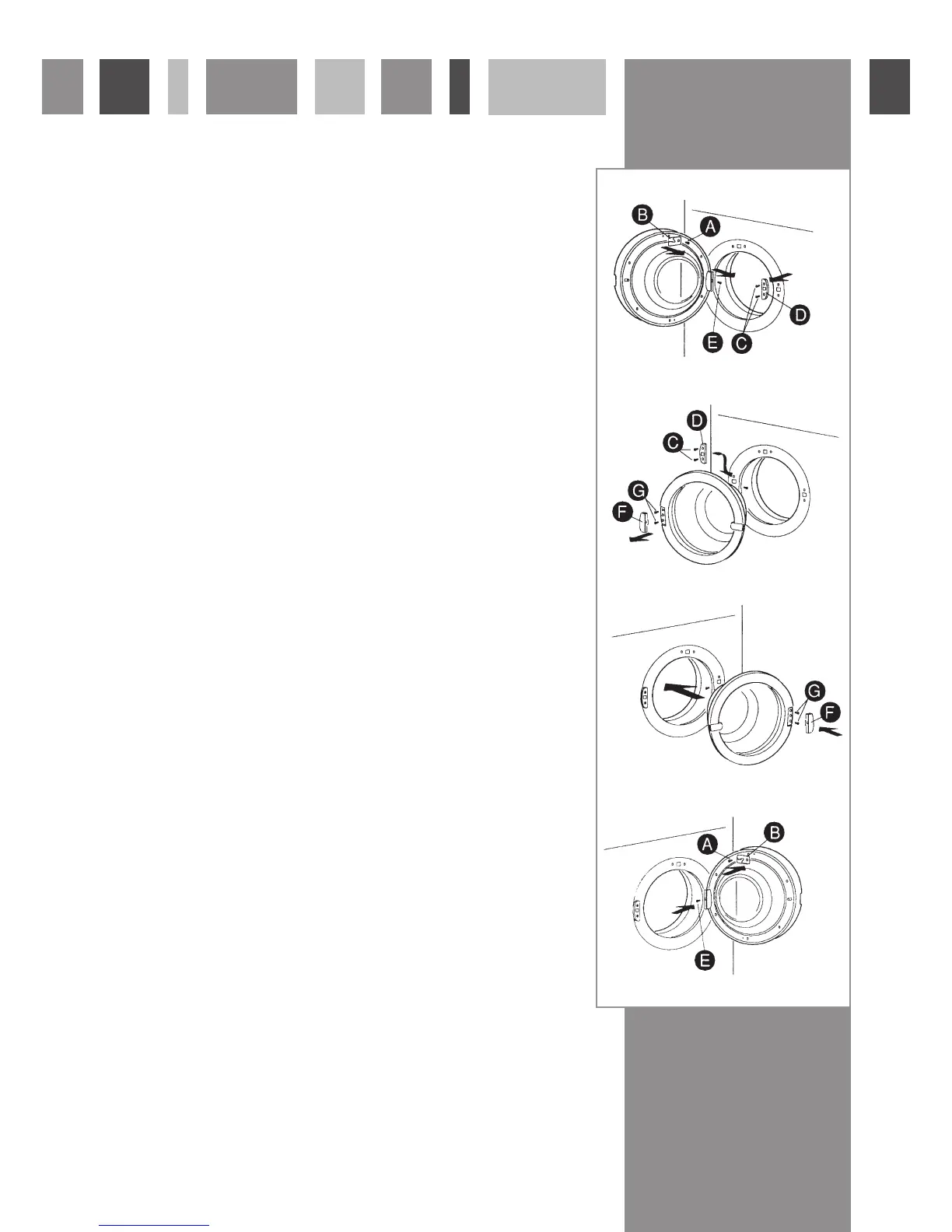

fig. 6
