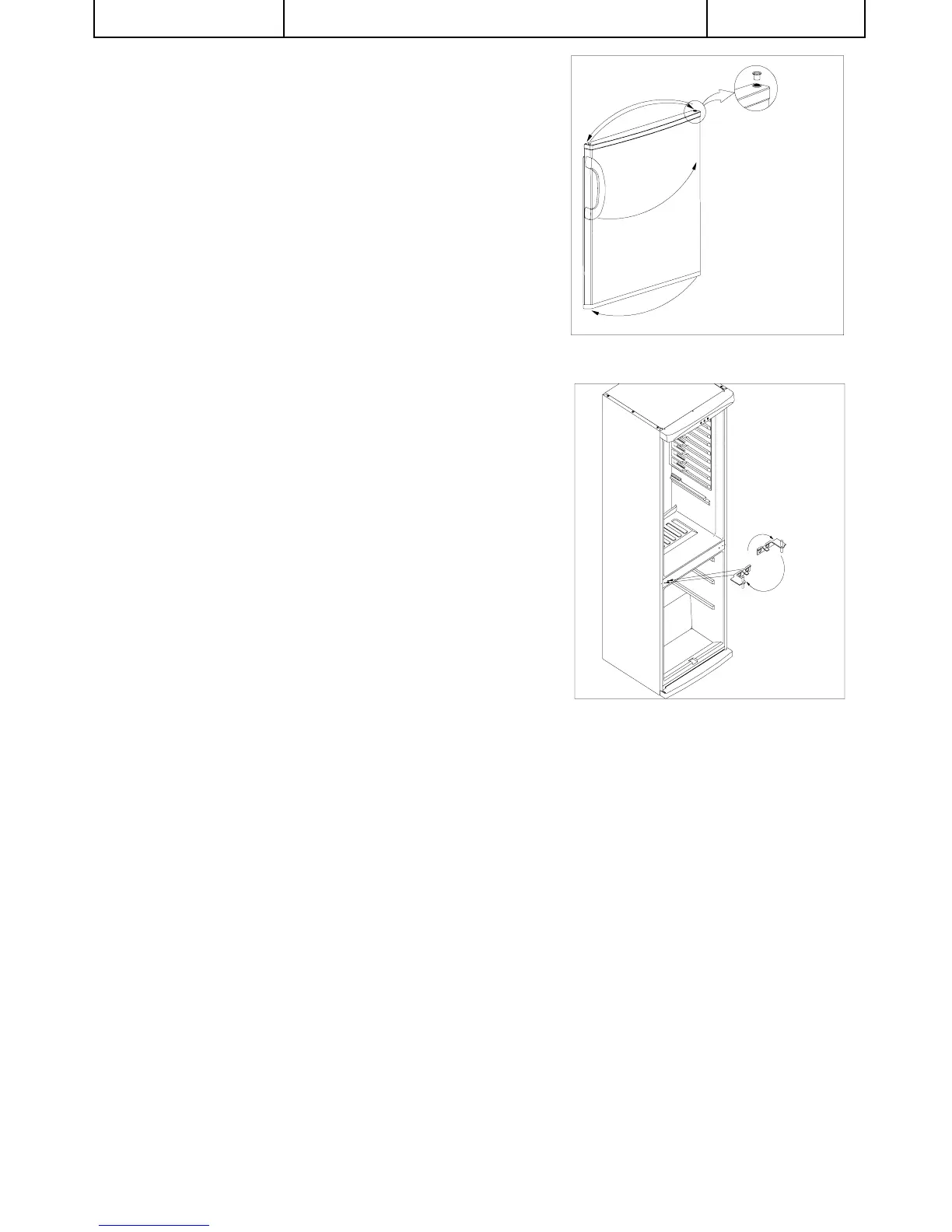

Figure -7
ASSEMBLE & DISASSEMBLE
Figure -8
Freezer
Door
Detail-A
7- Replace the top bushing and top bushing
cap. (Fig-7)
(You can use the bushing cap that is put in the
user manual bag)
Remove the bottom bush and reassemble it to
the left side. (Fig-7)
B- Changing The Thermostat
1- Unscrew the three head panel bolts. Remove the head panel by pulling
towards to forward.
2- Disconnect to wire connector.
3- Remove the second shelf from bottom.
4- Remove the plastic holder which is fixing thermostat bulb.
5- Remove the thermostat bulb by pulling.
6- Remove thermostat holder by slightly streching head panel.
7- Remove the thermostat knob by pulling forward.
8- Loosen the nut which is fixing the thermostat.
9- Replace the thermostat with new one.
10- Assemble the thermostat by applying following steps backwards.
Note: Item 3,4 is for freezer thermostat.
Turn the middle
hinge 180°
8- Turn the middle hinge 180º clockwise direction.
Assemble the freezer door and refrigerator door
together with middle hinge. (Reverse operation of
item 2) Fix the middle hinge by tighting the
screws. Finally,by using a knife cut left side of the
kick plate and assemble it. (Fig-8)
