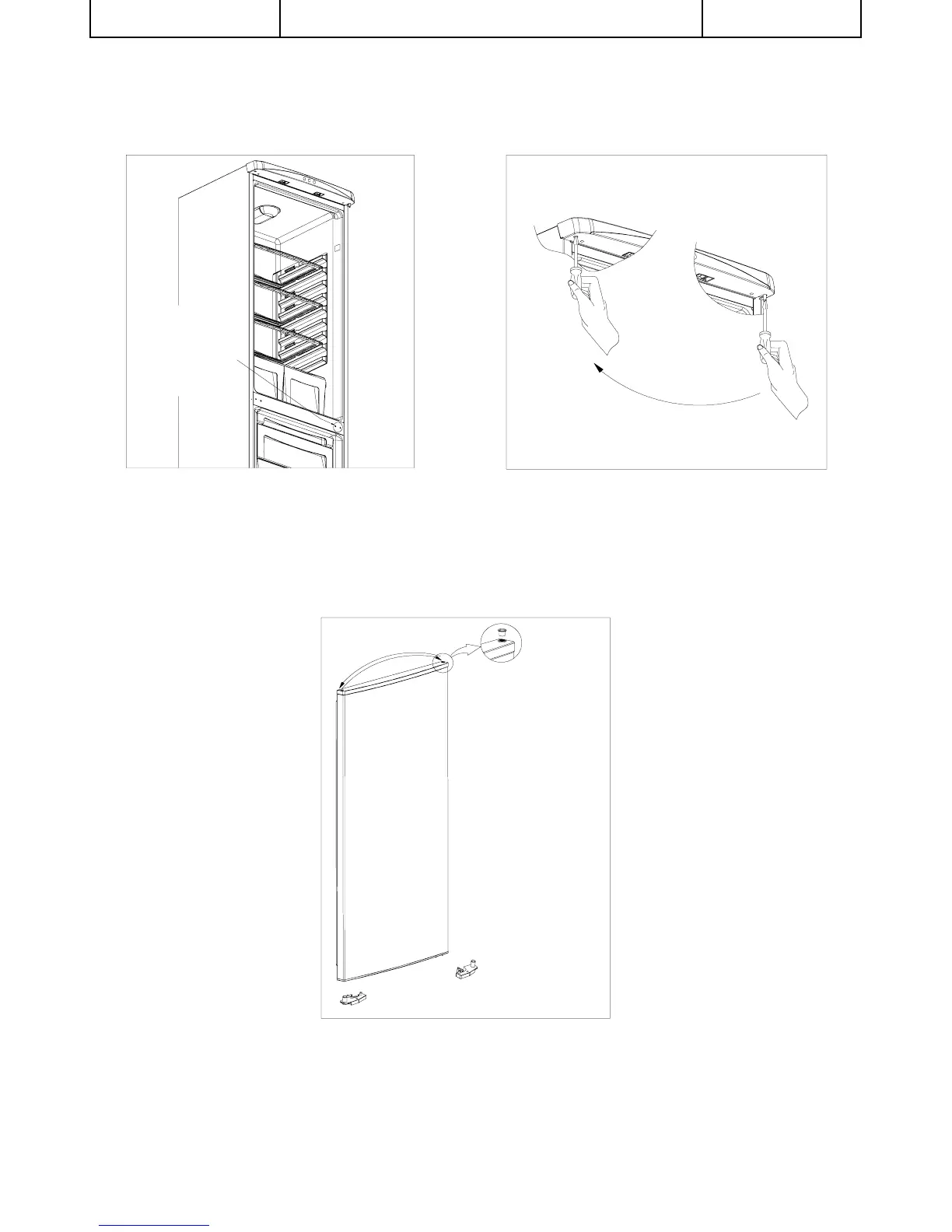

Figure -4
ASSEMBLE & DISASSEMBLE
Figure -5
4- Place the two middle hinge screw
caps (big) as shown in the figure. (Fig-4)
You can find the new caps in the user
manuel bag.
5-Unscrew the pin of the top hinge.
(Fig-5/Detail-A) and screw it to the left
hinge. (Fig-5/Detail-B)
Refrigerator
Door
Left catcher
Right catcher
6- Replace the top bushing and top bushing cap. (Fig-6) Remove the right door
catcher and assemble the left door catcher (which is put in the user manual bag) to
the left. (Fig-6)
Figure -6
DETAIL-A
DETAIL-B
Insert the two
middle hinge
screw caps
(big) here
