3. Remove the kick plate by pulling
forwards. Remove the lower hinge
fixing screws and the lower hinge.
Unscrew the lower hinge pin from
position 1 in fig. 5, rotate the lower
hinge 90º and then screw the hinge
pin into position 2. Relocate the
lower hinge into position on the left
hand side using the lower hinge
fixing screws.
4. Locate the central cover caps as
shown.
5. Unscrew the upper hinge pin and
screw it into position of the left hand
side (fig. 7).

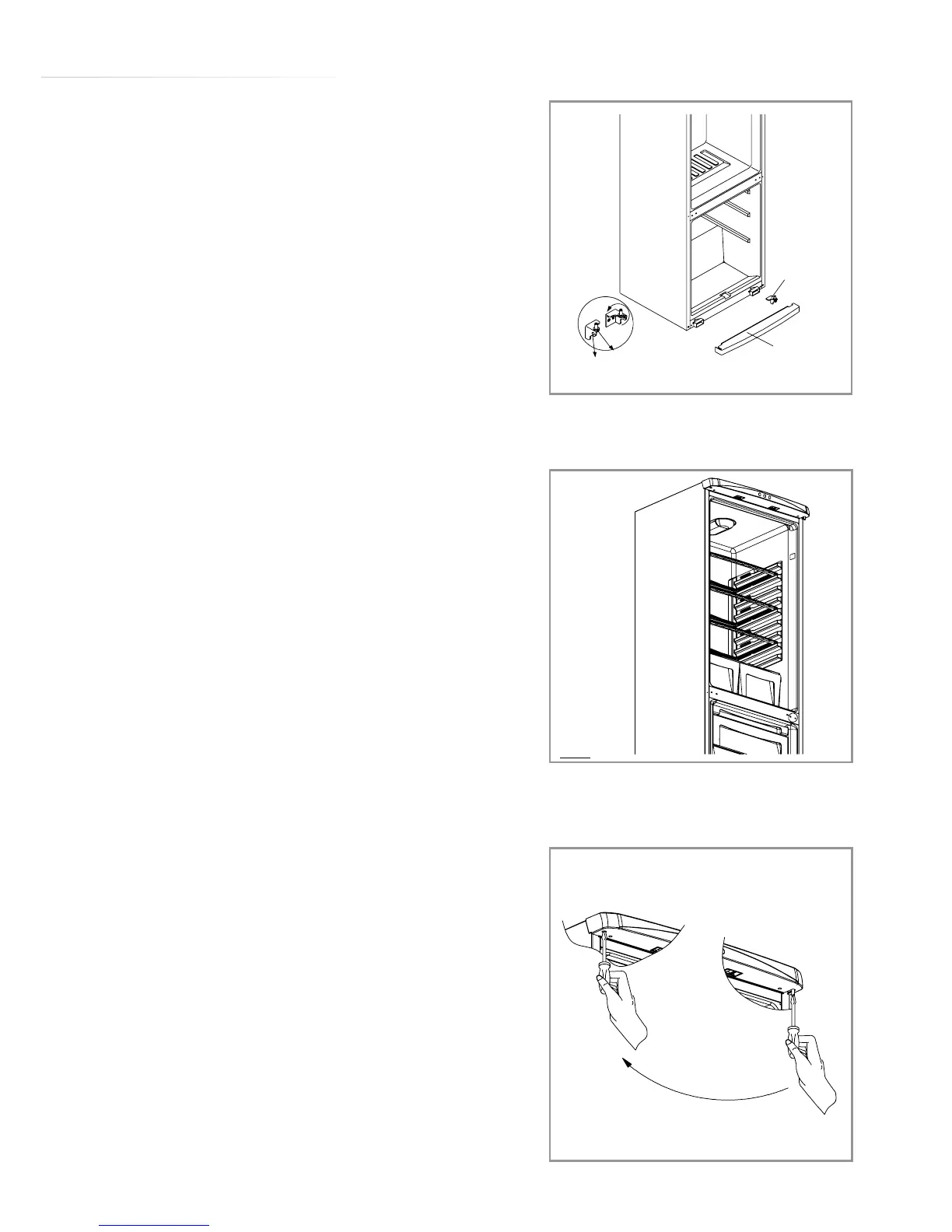

fig. 5
Bottom
hinge
Kick
plate
Hole 2
Hole 1
fig. 6
fig. 7
